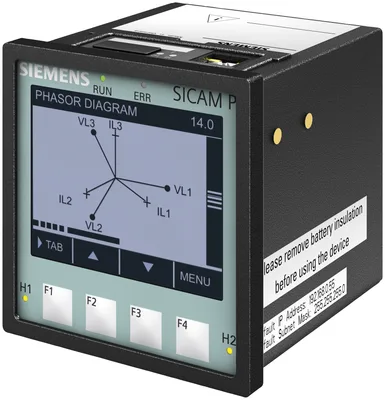

Siemens 7KG8501-0AA31-2AA0
SICAM P850 Multi-functional ölçüm cihaz, temel measurements, kontrol panel instrument, ile graphical gösterge, RS 485 - IEC 60870-5-103 ve Modbus RTU, ön koruma sınıf: IP40, Modbus TCP ve IEC 61850 Server
sampling frequency / per sampling cycle10.240 Hz
number of harmonics40
product function / logic functionVar
storage capacity2 Gbyte
type of data transmission / via CSVVar
energy management function / tariffsVar
Ürün Hakkında
SICAM P850 Multi-functional ölçüm cihaz, temel measurements, kontrol panel instrument, ile graphical gösterge, RS 485 - IEC 60870-5-103 ve Modbus RTU, ön koruma sınıf: IP40, Modbus TCP ve IEC 61850 Server
Siemens 7KG8501-0AA31-2AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measuring functions
sampling frequency / per sampling cycle10.240 Hz
number of harmonics40
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / querying of limit violationsVar
product function / logic functionVar
product function / measurement of the harmonic active powerYok
type of measured value detection / min./max. valuesVar
type of measured value detection / mean valuesVar
accuracy class / of the measuring instrument / for measured variable active power / according to IEC 62053-220,5S
accuracy class / of the measuring instrument / for measured variable reactive power1
storage capacity2 Gbyte
Power Quality functions
power quality assessment function / transient detection/loggingYok
power quality assessment function / Total Harmonic Distortion (THD)Var
power quality assessment function / voltage dipVar
power quality assessment function / measurement of the harmonic phase angleYok
product function / for voltage variations and flicker / integrated / according to IEC 61000-4-15Yok
accuracy class / of the measuring instrument / according to IEC 61000-4-30Class S
File formats
type of data transmission / via CSVVar
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
product function / apparent energy measurementVar
energy management function / calculation of load profilesVar
energy management function / tariffsVar
energy management function / load factor (TOU)Var
number of tariffs8
Measuring inputs
number of inputs / for voltage measurement4
number of inputs / for current measurement3
input voltage / between L and L / maximum690 V
input voltage / between L and N / maximum400 V
input current / maximum10 A
Besleme gerilimi
supply voltage / at AC110... 230 V
supply voltage / at DC24... 250 V
measuring range frequency / at the measurement inputs42,5... 69 Hz
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of analog inputs0
number of digital inputs0
number of analog outputs0
number of digital outputs2
Communication
protocol / is supported / IEC 61850Var
protocol / is supported / Modbus TCPVar
protocol / is supported / Modbus RTUVar
protocol / is supported / PROFIBUS DPYok
protocol / is supported / SNMPVar
protocol / is supported / OPC UA with PubSubYok
protocol / is supported / IEC 60870-5-103Var
communication function / Modbus RTU as masterYok
number of ports / of the Ethernet interface1
product function / gateway function for Modbus RTUYok
Cybersecurity
type of access control / role-based access control (RBAC)Yok
product function / logging via Audit logYok
product function / logging via Security EventlogYok
service / as web server / HTTPSVar
product function / firmware identifierVar
Time synchronization
type of time synchronizationNTP
Mechanical Design
width96 mm
height96 mm
depth100 mm
weight520 g
product feature / with displayVar
fastening method / DIN-rail mountingYok
fastening method / wall mountingYok
fastening method / rack mountingVar
type of electrical connectionScrew terminals
connectable conductor cross-section2,5 mm²
Degree of protection / protection class
protection class IP / on the frontIP40
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-25... +55 °C
ambient temperature / during storage-40... +70 °C
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
