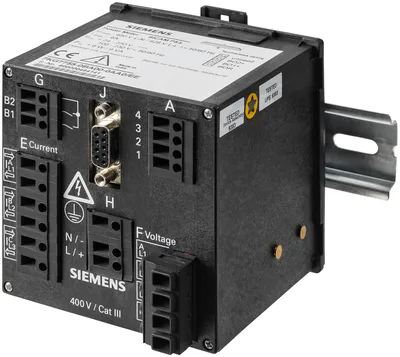

Siemens 7KG7755-0EA00-0AA0
SICAM P850 7KG850; SENTRON PAC3120/3220/2200 7KM3120/7KM3220/7KM2200 rail mounting 96 x 96 mm, type of protection front IP20, without graphic display 2 binary outputs, 2 analog inputs (DC 0-20 mA), RS485 with PROFIBUS DP and Modbus RTU / ASCII
sampling frequency / per sampling cycle3.200 Hz
number of harmonics19
product function / logic functionVar
storage capacity0,001 Gbyte
type of data transmission / via CSVYok
energy management function / tariffsYok
Ürün Hakkında
SICAM P850 7KG850; SENTRON PAC3120/3220/2200 7KM3120/7KM3220/7KM2200 rail mounting 96 x 96 mm, type of protection front IP20, without graphic display 2 binary outputs, 2 analog inputs (DC 0-20 mA), RS485 with PROFIBUS DP and Modbus RTU / ASCII
Siemens 7KG7755-0EA00-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measuring functions
sampling frequency / per sampling cycle3.200 Hz
number of harmonics19
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / querying of limit violationsVar
product function / logic functionVar
product function / measurement of the harmonic active powerYok
type of measured value detection / min./max. valuesVar
type of measured value detection / mean valuesVar
accuracy class / of the measuring instrument / for measured variable active power / according to IEC 62053-220,5S
accuracy class / of the measuring instrument / for measured variable reactive power1
storage capacity0,001 Gbyte
Power Quality functions
power quality assessment function / transient detection/loggingYok
power quality assessment function / Total Harmonic Distortion (THD)Var
power quality assessment function / voltage dipYok
power quality assessment function / measurement of the harmonic phase angleYok
product function / for voltage variations and flicker / integrated / according to IEC 61000-4-15Yok
File formats
type of data transmission / via CSVYok
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
product function / apparent energy measurementVar
energy management function / calculation of load profilesYok
energy management function / tariffsYok
energy management function / load factor (TOU)Yok
number of tariffs0
Measuring inputs
number of inputs / for voltage measurement4
number of inputs / for current measurement3
input voltage / between L and L / maximum690 V
input voltage / between L and N / maximum400 V
input current / maximum10 A
Besleme gerilimi
supply voltage / at AC110... 230 V
supply voltage / at DC24... 250 V
measuring range frequency / at the measurement inputs45... 65 Hz
type of voltage / of the supply voltageAC/DC
Inputs / Outputs
number of analog inputs2
number of digital inputs0
number of analog outputs0
number of digital outputs2
Communication
protocol / is supported / IEC 61850Yok
protocol / is supported / Modbus TCPYok
protocol / is supported / Modbus RTUVar
protocol / is supported / PROFIBUS DPVar
protocol / is supported / SNMPYok
protocol / is supported / OPC UA with PubSubYok
protocol / is supported / IEC 60870-5-103Yok
communication function / Modbus RTU as masterYok
number of ports / of the Ethernet interface0
product function / gateway function for Modbus RTUYok
Cybersecurity
type of access control / role-based access control (RBAC)Yok
product function / logging via Audit logYok
product function / logging via Security EventlogYok
service / as web server / HTTPSYok
product function / firmware identifierYok
Time synchronization
type of time synchronizationRTC, Modbus RTU, binary input
Mechanical Design
width96 mm
height96 mm
depth105 mm
weight650 g
product feature / with displayYok
fastening method / DIN-rail mountingVar
fastening method / wall mountingVar
fastening method / rack mountingYok
type of electrical connectionScrew terminals
connectable conductor cross-section2,5 mm²
Degree of protection / protection class
protection class IP / on the frontIP20
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-25... +55 °C
ambient temperature / during storage-25... +70 °C
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalYok
Aksesuarlar 8
Siemens 7KG7755-0EA00-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9CA4110-0GE00-0DC1 | Aksesuar | |
| 9CA4110-0ND00-0DH1 | Aksesuar | |
| 9CA4110-0NE00-0DH1 | Aksesuar | |
| 9CA4140-0AD00-0DA8 | Aksesuar | |
| 9CA4140-0AE00-0DA8 | Aksesuar | |
| 9CA4160-0WE00-0DA1 | Aksesuar | |
| 9CA4160-0WE00-0DA2 | Aksesuar | |
| 9CA4160-0WE00-0DA4 | Aksesuar |
