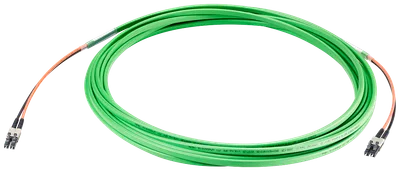

Siemens 6XV1873-5CH50
FO Trailing Cable 50/125, pre-assembled with 2x LC duplex connectors, length 5 m.
product brand nameSIMATIC NET
cable designationAT-W(ZN)Y(ZN)11Y 2G 50/125 OM2++
wire length5 m
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm600 GHz·m
Ürün Hakkında
FO Trailing Cable 50/125, pre-assembled with 2x LC duplex connectors, length 5 m.
Siemens 6XV1873-5CH50
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFlexible cable for use in cable carriers for high mechanical loading, no UL approval
version of the assembled FO cablePre-assembled with 2x LC DUPLEX connectors
cable designationAT-W(ZN)Y(ZN)11Y 2G 50/125 OM2++
wire length5 m
optical data
at 850 nm / maximum2,7 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm600 GHz·m
at 1300 nm1200 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMulti-mode gradient fiber 50/125 µm, OM 2
design of the FOC coreHollow core, filled, diameter 1400 µm
design of the fiber-optic cablesegmentable
of the optical fibers50 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,9 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
outer diameter / of the cable10,5 mm
symmetrical deviation / of the outer diameter of the line0,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathPVC
of the fiber-optic cable sheathPUR
of the strain reliefAramid fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible150 mm
with multiple bends / minimum permissible200 mm
number of bending cycles5000000
during installation / short-term2000 N
during operation / maximum800 N
short-term shear force per length700 N/cm
continuous shear force per length400 N/cm
weight per length90 kg/km
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-5... +50 °C
fire behaviorflammable
to mineral oilacc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +100 °C, 168 h, pull speed 250 mm/min
to greaseresistant
radiological resistance / to UV radiationresistant
protection class IPIP20
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum5000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum750 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum2000 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
RoHS conformityVar
