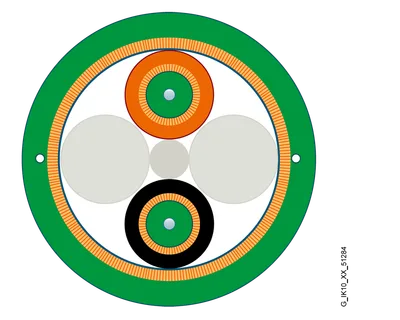

Siemens 6XV1873-2F
FO Flexible Cable (50/125/OM4), halogen-free fiber-optic cable, splittable, for permanent routing, max. length 1000 m minimum order quantity 20 m sold by the meter
product brand nameSIMATIC NET
at 850 nm / maximum2,5 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm3500 GHz·m
at 1300 nm500 GHz·m
number of fibers / per FOC core1
Ürün Hakkında
FO Flexible Cable (50/125/OM4), halogen-free fiber-optic cable, splittable, for permanent routing, max. length 1000 m minimum order quantity 20 m sold by the meter
Siemens 6XV1873-2F
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for usehalogen-free cable (acc. to IEC 61034-1) for flexible applications in cable carriers both indoors ve outdoors, UL approval
version of the assembled FO cablecan be assembled with BFOC, SC veya LC plugs also suitable for splicing technology
cable designationAT-V(ZN)H(ZN)11Y 2G50/125 OM4BI TB900L 2,2
optical data
at 850 nm / maximum2,5 dB/km
at 1300 nm / maximum0,7 dB/km
at 850 nm3500 GHz·m
at 1300 nm500 GHz·m
mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMulti-mode gradient fiber 50/125 µm, OM 4
design of the FOC corefixed core (TB900L)
design of the fiber-optic cablesegmentable
of the optical fibers50 µm
of the optical fiber sheath125 µm
of the FOC core sheath2,2 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
outer diameter / of the cable8,8 mm
symmetrical deviation / of the outer diameter of the line0,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathQuartz glass
of the FOC core sheathFRNC
of the fiber-optic cable sheathTPE-U
of the strain reliefAramid fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible88 mm
with continuous bending88 mm
number of bending cycles5000000
during installation / short-term2000 N
during operation / maximum600 N
short-term shear force per length2000 N/cm
continuous shear force per length1000 N/cm
weight per length70 kg/km
ambient conditions
during operation-30... +85 °C
during storage-30... +85 °C
during transport-30... +85 °C
during installation-5... +50 °C
ambient condition / for operationimpact resistance according to IEC 60794-1-2, method E4, energy 5 Nm
fire behaviorflame-resistant acc. to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oilaccording to IEC 60811-404 with test oil IRM 902 (according to ISO 1817); +100 °C; 168 h
to greaseresistant
to waterconditional resistance
radiological resistance / to UV radiationconditional resistance
product features, product functions, product components / general
halogen-freeVar
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum3000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum1040 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum600 m
for glass FOC / for 1000BaseLSX / for Industrial Ethernet / maximum1000 m
for glass FOC / with 10GBaseSR / for Industrial Ethernet / maximum550 m
for glass FOC / for 10GBaseLX4 / for Industrial Ethernet / maximum300 m
for glass FOC / with 25GBaseSR / for Industrial Ethernet / maximum100 m
standards, specifications, approvals
UL onayıVar; c(UL)us OFN/OFNG - FT4
RoHS conformityVar
Aksesuarlar 4
Siemens 6XV1873-2F motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0ML00-0AA0 | Aksesuar | |
| 6GK1900-0MN00-0AA0 | Aksesuar | |
| 6GK1900-0MB00-0AC0 | Aksesuar | |
| 6GK1900-0MB00-6AA0 | Aksesuar |
