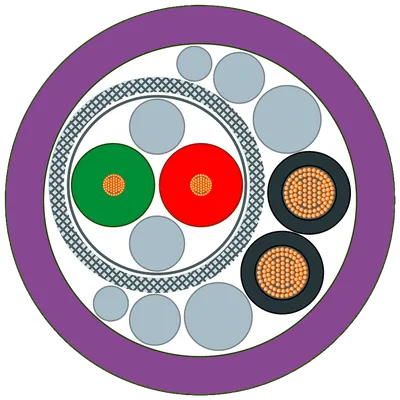

Siemens 6XV1860-2R
PROFIBUS hybrid standard cable GP, Cable with 2xCU (1.5 mm2) and 2xCU (0.64 mm) shielded, ET 200, sold by the meter, delivery unit max. 1000 m minimum order quantity: 20 m.
at 9.6 kHz / maximum0,004 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,025 dB/m
at 16 MHz / maximum0,049 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
Ürün Hakkında
PROFIBUS hybrid standard cable GP, Cable with 2xCU (1.5 mm2) and 2xCU (0.64 mm) shielded, ET 200, sold by the meter, delivery unit max. 1000 m minimum order quantity: 20 m.
Siemens 6XV1860-2R
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
suitability for useTrailing-type, hybrid cable used for supplying data ve power to ET 200pro
cable designation02Y(ST)C 1x2x0.65/2.56-150LI LIY-Z Y 2x1x1.5 VI
electrical data
at 9.6 kHz / maximum0,004 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,025 dB/m
at 16 MHz / maximum0,049 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum138 Ω/km
shield resistance per length / maximum10 Ω/km
insulation resistance coefficient20 GΩ·m
operating voltage / maximum80 V
capacity per length / at 1 kHz30 pF/m
operating voltage / RMS value300 V
conductor cross section / of the power line1,5 mm²
continuous current / of the power lines7,5 A
mechanical data
design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
number of electrical cores4
type of electrical connection / FastConnectYok
of inner conductor0,67 mm
of the wire insulation2,56 mm
of cable sheath11 mm
symmetrical tolerance of the outer diameter / of cable sheath0,5 mm
of the wire insulationpolyethylene (PE)
of cable sheathPVC
of the insulation of data wiresred / green
of the power line insulationBlack
of cable sheathViolet
with single bend / minimum permissible44 mm
with multiple bends / minimum permissible125 mm
number of bending cycles1000000; For use in cable carriers, for 1 million bending cycles with a bending radius of 125 mm ve an acceleration of 2,5 m/s²
tensile load / maximum450 N
weight per length140 kg/km
ambient conditions
during operation-40... +75 °C
during storage-40... +75 °C
during transport-40... +75 °C
during installation-40... +75 °C
noteElectrical properties measured 20 Cel, verification according to DIN 47250 part 4 respectively DIN VDE 0490
fire behaviorflame-retardant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oilConditional resistance
to greaseConditional resistance
radiological resistance / to UV radiationnot resistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(ETL)us 3047254 CMG FT4 75°C
