Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

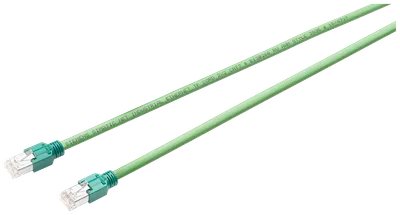

Siemens 6XV1850-2GH60
Industrial Ethernet TP Cord RJ45/RJ45, TP cord pre-assembled with 2 RJ45 plug, length 6 m.
product brand nameSIMATIC NET
cable designationLI 02YSCY 2x2x0,15/0,98 PIMF ICCS GN
wire length6 m
number of electrical connections2
at 10 MHz / maximum0,09 dB/m
at 100 MHz / maximum0,285 dB/m
Ürün Hakkında
Industrial Ethernet TP Cord RJ45/RJ45, TP cord pre-assembled with 2 RJ45 plug, length 6 m.
Siemens 6XV1850-2GH60
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useEasy connection of terminal devices to the IE FC cabling system
cable designationLI 02YSCY 2x2x0,15/0,98 PIMF ICCS GN
wire length6 m
electrical data
number of electrical connections2
at 10 MHz / maximum0,09 dB/m
at 100 MHz / maximum0,285 dB/m
at 300 MHz / maximum0,495 dB/m
at 600 MHz / maximum0,75 dB/m
at 1 MHz ... 100 MHz100 Ω
at 10 MHz … 600 MHz100 Ω
of the characteristic impedance at 1 MHz … 100 MHz15 %
of the characteristic impedance at 10 MHz … 600 MHz6 %
transfer impedance per length / at 10 MHz10 mΩ/m
loop resistance per length / maximum300 mΩ/m
insulation resistance coefficient150 GΩ·m
RMS value80 V
mechanical data
number of electrical cores4
design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
of AWG26 insulated conductor0,48 mm
of inner conductor0,48 mm
of the wire insulation0,98 mm
width / of cable sheath5,8 mm
symmetrical tolerance of width / of cable sheath0,2 mm
thickness / of cable sheath3,7 mm
symmetrical tolerance of thickness / of cable sheath0,2 mm
of the wire insulationpolyethylene (PE)
of cable sheathPVC
of the insulation of data wireswhite/blue, white/orange
of cable sheathgreen
with single bend / minimum permissible24 mm
with multiple bends / minimum permissible42 mm
weight per length32 kg/km
ambient conditions
during operation-40... +70 °C
during storage-40... +70 °C
during transport-40... +70 °C
during installation-40... +70 °C
fire behaviorflame resistant according to IEC 60332-2-1
to mineral oiloil resistant according to IEC 60811-2-1 (4 h / 70°C)
to greaseConditional resistance
protection class IPIP20
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingYok
EAC approvalVar
UL onayıVar
standard for structured cablingCat5
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
