Siemens 6XV1847-2A
FC FO Standard Cable (62.5/200/230), Standard cable splittable, UL- approval, max. length 1000 m minimum order quantity 20 m sold by the meter
product brand nameSIMATIC NET
version of the assembled FO cablesold by the meter
cable designationAT-V(ZN)YY 2GK 62,5/200/230 OM1
at 850 nm / maximum3,2 dB/km
at 1300 nm / maximum0,9 dB/km
at 850 nm200 GHz·m
Ürün Hakkında
FC FO Standard Cable (62.5/200/230), Standard cable splittable, UL- approval, max. length 1000 m minimum order quantity 20 m sold by the meter
Siemens 6XV1847-2A
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useCable for permanent installation in cable channels ve pipes, UL approval
version of the assembled FO cablesold by the meter
cable designationAT-V(ZN)YY 2GK 62,5/200/230 OM1
optical data
at 850 nm / maximum3,2 dB/km
at 1300 nm / maximum0,9 dB/km
at 850 nm200 GHz·m
at 1300 nm500 GHz·m

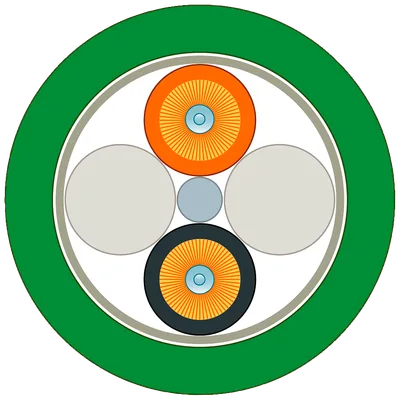

mechanical data
number of fibers / per FOC core1
number of FO cores / per FOC cable2
version of the FO conductor fiberMulti-mode gradient fiber 62,5/200/230 µm
design of the FOC coreFixed core
design of the fiber-optic cableSegmentable cable
of the optical fibers62,5 µm
of the optical fiber sheath230 µm
of the FOC core sheath2,2 mm
symmetrical deviation / of the outer diameter of the FOC core sheath0,1 mm
outer diameter / of the cable7,2 mm
symmetrical deviation / of the outer diameter of the line0,5 mm
of the fiber-optic cable coreQuartz glass
of the optical fiber sheathETFE
of the FOC core sheathPVC
of the fiber-optic cable sheathPVC
of the strain reliefAramid fibers
of the FOC core sheathorange/black
of cable sheathgreen
with single bend / minimum permissible70 mm
with multiple bends / minimum permissible105 mm
during installation / short-term800 N
during operation / maximum100 N
short-term shear force per length500 N/cm
continuous shear force per length300 N/cm
weight per length49 kg/km
ambient conditions
during operation-40... +85 °C
during storage-40... +85 °C
during transport-40... +85 °C
during installation-5... +50 °C
fire behaviorflame-resistant acc. to IEC 60332-1-2 ve IEC 60332-3-22 (Cat. A)
class of burning behaviour / according to EN 13501-6Eca
to mineral oilacc. to IEC 60811-404 with test oil IRM 902 (acc. to ISO 1817), +70 °C, 4 h
to greaseconditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
product component / rodent protectionYok
for glass FOC / for 100BaseFX / for Industrial Ethernet / maximum3000 m
for glass FOC / for 1000BaseSX / for Industrial Ethernet / maximum350 m
for glass FOC / for 1000BaseLX / for Industrial Ethernet / maximum550 m
for glass FOC / with PROFIBUS / maximum3000 m
standards, specifications, approvals
UL onayıVar; UL OFN
RoHS conformityVar
