Siemens 6XV1840-2R

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6XV1840-2R

IE TP Robot Cable GP 2x2 (PROFINET type R), TP installation cable, 4-core, shielded Cat5e, for use in highly flexible applications (torsion, cable carriers), sold by the meter; max. 1000 m, minimum order quantity 20 m.

SiemensMFR # 6XV1840-2RSKU # YLSBP0MCQOQZ4HV
product brand nameSIMATIC NET
cable designation9Y(ST)C11Y 2X2X0.75/1.6-100 LI VZN GN
wire lengthsold by the meter
at 10 MHz / maximum0,095 dB/m
at 100 MHz / maximum0,32 dB/m
at 1 MHz ... 100 MHz120 Ω
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

IE TP Robot Cable GP 2x2 (PROFINET type R), TP installation cable, 4-core, shielded Cat5e, for use in highly flexible applications (torsion, cable carriers), sold by the meter; max. 1000 m, minimum order quantity 20 m.

Siemens 6XV1840-2R

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

product brand nameSIMATIC NET
suitability for useconstant motion control when used in the robot (torsional ve bending load)
cable designation9Y(ST)C11Y 2X2X0.75/1.6-100 LI VZN GN
wire lengthsold by the meter
electrical data
at 10 MHz / maximum0,095 dB/m
at 100 MHz / maximum0,32 dB/m
at 1 MHz ... 100 MHz120 Ω
of the characteristic impedance at 1 MHz … 100 MHz15 %
at 1 MHz ... 100 MHz0,5 dB/m
transfer impedance per length / at 10 MHz10 mΩ/m
loop resistance per length / maximum120 mΩ/m
RMS value100 V
NVP value in percent69 %
mechanical data
number of electrical cores4

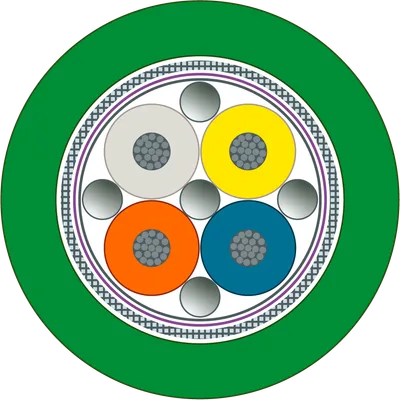

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectYok
of AWG22 insulated conductor0,74 mm
of inner conductor0,74 mm
of the wire insulation1,6 mm
of the inner sheath of the cable5 mm
of cable sheath6,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,2 mm
of the wire insulationPolypropylene (PP)
of cable sheathPUR
of the insulation of data wireswhite/yellow/blue/orange
of cable sheathgreen
with single bend / minimum permissible32,5 mm
with continuous bending75 mm
number of bending cycles5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 75 mm, a speed of 5 m/s, ve an acceleration of 20 m/s²
number of torsion cycles / with torsion by ± 180° on 1 m cable length5000000
tensile load / maximum100 N
weight per length63 kg/km
ambient conditions
during operation0... 60 °C
during storage-20... +80 °C
during transport-20... +80 °C
during installation0... 60 °C
noteelectrical properties measured 20 °C
ambient condition / for operationtemperature range for permanent installation -20 °C to 80 °C
fire behaviorflame-resistant according to IEC 60332-1-2 ve flame retardant acc. to UL 1581, Sec. 1061
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil-resistant according to DIN EN 60811-404 (7 x 24 h/90 °C)
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
PoE capabilityVar
PoE+ capabilityVar
silicon-freeVar
with 100BaseTX100 m
at AC / core-to-core2000 V
at AC / core shield2000 V
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(ETL)us 3047254 CMX 75°C
UL/ETL style / 600 V RatingVar; E502506-LFR cRUus AWM 21223 AWM I/II A/B 80°C 600V FT1
EAC approvalVar
CE markingVar
RoHS conformityVar
standard for structured cablingCat5e
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
