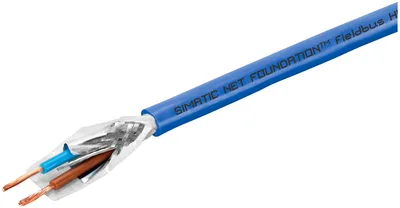

Siemens 6XV1830-5GH10
Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath color blue for Ex applications; 2-core shielded; stranded drain wire; Sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
product brand nameSIMATIC NET
cable designation2X(ST)CY 1X2X1.1/2.85-100 LI BL FR OE
wire lengthsold by the meter
at 38.4 kHz / maximum0,003 dB/m
rated value100 Ω
at 31.25 kHz100 Ω
Ürün Hakkında
Foundation Fieldbus Cable; bus cable for IEC 61158-2; sheath color blue for Ex applications; 2-core shielded; stranded drain wire; Sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
Siemens 6XV1830-5GH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor use in fieldbus systems according to IEC 61158-2 (e.g. Foundation Fieldbus), suitable for Ex applications
cable designation2X(ST)CY 1X2X1.1/2.85-100 LI BL FR OE
wire lengthsold by the meter
electrical data
at 38.4 kHz / maximum0,003 dB/m
rated value100 Ω
at 31.25 kHz100 Ω
at 38.4 kHz100 Ω
of the characteristic impedance at 31.25 kHz20 %
of the characteristic impedance at 38.4 kHz20 %
loop resistance per length / maximum46 mΩ/m
shield resistance per length / maximum10 Ω/km
capacity per length / at 1 kHz65 pF/m
inductance per length0,75 µH/m
RMS value300 V
mechanical data
number of electrical cores2
design of the shieldOverlapped aluminum-clad foil, sheathed in a braided shield of tin-plated copper wires with shield wire
type of electrical connection / FastConnectYok
of inner conductor1,17 mm
of the wire insulation2,85 mm
of the inner sheath of the cable6,4 mm
of cable sheath8,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
of the wire insulationpolyethylene (PE)
of cable sheathPVC
of the insulation of data wiresblue/brown
of cable sheathblue
with single bend / minimum permissible34 mm
with multiple bends / minimum permissible68 mm
tensile load / maximum100 N
weight per length98 kg/km
ambient conditions
during operation-40... +105 °C
during storage-40... +105 °C
during transport-40... +105 °C
during installation-40... +105 °C
noteelectrical properties measured 20 °C
ambient condition / for operationTransfer rate of cable: 31,25 Kbit/s
fire behaviorflame resistant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oilconditional resistance
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(UL)us, CMG / PLTC / Sun Res
UL/ETL style / 600 V RatingYok
EAC approvalVar
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
