Siemens 6XV1830-5EH10
PB FC Process Cable GP/ Ethernet-APL cable GP, bus cable for IEC 61158-2 (PB) and IEC TS 60079-47 (2-WISE) sheath color blue for Ex applications 2-core shielded, sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
product brand nameSIMATIC NET
cable designation02YSY (ST) CY 1x2x1,0/2,55-100 BL OE FR
wire lengthsold by the meter
at 38.4 kHz / maximum0,003 dB/m
at 3 MHz19 dB
rated value100 Ω
Ürün Hakkında
PB FC Process Cable GP/ Ethernet-APL cable GP, bus cable for IEC 61158-2 (PB) and IEC TS 60079-47 (2-WISE) sheath color blue for Ex applications 2-core shielded, sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
Siemens 6XV1830-5EH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useUse in fieldbus systems according to IEC 61158-2 (e.g. PROFIBUS PA) ve IEC TS 60079-47 (2-WISE) / for APL (cable type A), suitable for Ex applications
cable designation02YSY (ST) CY 1x2x1,0/2,55-100 BL OE FR
wire lengthsold by the meter
electrical data
at 38.4 kHz / maximum0,003 dB/m
at 3 MHz19 dB
rated value100 Ω
at 31.25 kHz100 Ω
at 3 MHz … 20 MHz100 Ω
of the characteristic impedance at 31.25 kHz20 %
of the characteristic impedance at 3 MHz … 20 MHz15 %
loop resistance per length / maximum44 mΩ/m
shield resistance per length / maximum6,5 Ω/km
capacity per length / at 1 kHz92 pF/m
inductance per length0,65 µH/m
RMS value80 V
mechanical data
number of electrical cores2

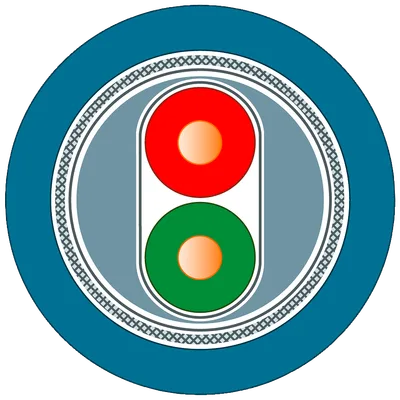

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectVar
of inner conductor1,05 mm
of the wire insulation2,55 mm
of the inner sheath of the cable5,4 mm
of cable sheath8 mm
symmetrical tolerance of the outer diameter / of cable sheath0,4 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPVC
of the insulation of data wiresred/green
of cable sheathblue
with single bend / minimum permissible40 mm
with multiple bends / minimum permissible80 mm
tensile load / maximum150 N
weight per length103 kg/km
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-20... +80 °C
noteelectrical properties measured 20 °C
ambient condition / for operationTransfer rate of cable: 31,25 Kbit/s
fire behaviorflame resistant according to IEC 60332-3-24 (Category C)
class of burning behaviour / according to EN 13501-6Eca
to mineral oilconditional resistance
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(UL)us, CMG / CL3 / Sun Res
UL/ETL style / 600 V RatingVar
EAC approvalVar
CE markingVar
RoHS conformityVar
IEC TS 60079-47 (2-WISE) / for APL (cable type A)Var
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
