Siemens 6XV1830-3GH10
PROFIBUS FESTOON Cable GP for festoon suspension, 2-core shielded max. acceleration: 4 m/QS min. 5 million bending cycles, sold by the meter, Delivery unit: max. 1000 m, minimum order quantity: 20 m .
product brand nameSIMATIC NET
suitability for useSpecially for festoon attachment
wire lengthsold by the meter
at 9.6 kHz / maximum0,003 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,025 dB/m
Ürün Hakkında
PROFIBUS FESTOON Cable GP for festoon suspension, 2-core shielded max. acceleration: 4 m/QS min. 5 million bending cycles, sold by the meter, Delivery unit: max. 1000 m, minimum order quantity: 20 m .
Siemens 6XV1830-3GH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useSpecially for festoon attachment
cable designation02YS (ST) CY 1 x 2 x 0,65/2,56 LI petrol FR
wire lengthsold by the meter
electrical data
at 9.6 kHz / maximum0,003 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,025 dB/m
at 16 MHz / maximum0,049 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum133 mΩ/m
shield resistance per length / maximum19 Ω/km
insulation resistance coefficient16000 GΩ·m
capacity per length / at 1 kHz28 pF/m
RMS value80 V
mechanical data
number of electrical cores2

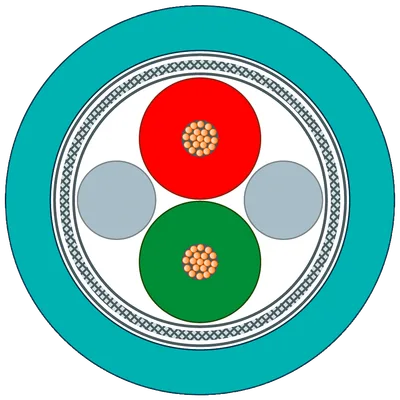

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectYok
of inner conductor0,67 mm
of the wire insulation2,56 mm
of the inner sheath of the cable5,8 mm
of cable sheath8 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
of the wire insulationpolyethylene (PE)
of cable sheathPVC
of the insulation of data wiresred/green
of cable sheathpetrol
with single bend / minimum permissible30 mm
with continuous bending70 mm
tensile load / maximum80 N
weight per length64 kg/km
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-40... +80 °C
noteelectrical properties measured 20 °C
fire behaviorflame resistant according to IEC 60332-3-24 (Category C)
class of burning behaviour / according to EN 13501-6Eca
to mineral oilconditional resistance
to greaseConditional resistance
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; CMG / PLCT / Sun Res / Oil Res
UL/ETL style / 600 V RatingVar
EAC approvalVar
CE markingVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
