Siemens 6XV1830-3EH10
PROFIBUS FC Trailing Cable, PROFIBUS trailing cable, max. Acceleration 4 m/QS min. 3 million bending cycles min. Bending radius approx. 120 mm 2-wire shielded, sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
product brand nameSIMATIC NET
wire lengthsold by the meter
at 9.6 kHz / maximum0,003 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,025 dB/m
at 16 MHz / maximum0,049 dB/m
Ürün Hakkında
PROFIBUS FC Trailing Cable, PROFIBUS trailing cable, max. Acceleration 4 m/QS min. 3 million bending cycles min. Bending radius approx. 120 mm 2-wire shielded, sold by the meter delivery unit max. 1000 m minimum order quantity 20 m.
Siemens 6XV1830-3EH10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useContinuous motion control in a cable carrier
cable designation02YY (ST) C11Y 1x2x0,65/2,56-150 LI KF 40 FR petrol
wire lengthsold by the meter
electrical data
at 9.6 kHz / maximum0,003 dB/m
at 38.4 kHz / maximum0,004 dB/m
at 4 MHz / maximum0,025 dB/m
at 16 MHz / maximum0,049 dB/m
rated value150 Ω
at 9.6 kHz270 Ω
at 38.4 kHz185 Ω
at 3 MHz … 20 MHz150 Ω
of the characteristic impedance at 9.6 kHz10 %
of the characteristic impedance at 38.4 kHz10 %
of the characteristic impedance at 3 MHz … 20 MHz10 %
loop resistance per length / maximum133 mΩ/m
shield resistance per length / maximum14 Ω/km
capacity per length / at 1 kHz28 pF/m
RMS value80 V
mechanical data
number of electrical cores2

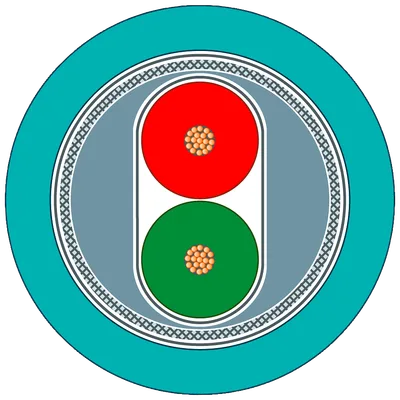

design of the shieldOverlapped aluminum-clad foil, sheathed in a braided screen of tin-plated copper wires
type of electrical connection / FastConnectVar
of inner conductor0,67 mm
of the wire insulation2,56 mm
of the inner sheath of the cable5,4 mm
of cable sheath8 mm
symmetrical tolerance of the outer diameter / of cable sheath0,4 mm
of the wire insulationpolyethylene (PE)
of the inner sheath of the cablePVC
of cable sheathPUR (TPE-U)
of the insulation of data wiresred/green
of cable sheathpetrol
with single bend / minimum permissible40 mm
with continuous bending120 mm
number of bending cycles3000000; Drag chain suitable for 3 million bending cycles a bending radius of 120 mm (15x D), a speed of 4 m/s ve an acceleration of 4 m/s²
tensile load / maximum100 N
weight per length77 kg/km
ambient conditions
during operation-40... +60 °C
during storage-40... +60 °C
during transport-40... +60 °C
during installation-40... +60 °C
noteelectrical properties measured 20 °C
ambient condition / for operationLimited segment length (see manual for PROFIBUS networks)
fire behaviorflame resistant according to IEC 60332-1-2
class of burning behaviour / according to EN 13501-6Eca
to mineral oiloil resistant according to IEC 60811-2-1 (7x24h/90°C)
to greaseresistant
to waterconditional resistance
radiological resistance / to UV radiationresistant
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingVar; c(UL)us / CMX
UL/ETL style / 600 V RatingVar; cRU AWM I A/B 80°C 600V FT2
EAC approvalVar
CE markingVar
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Det Norske Veritas (DNV)Yok
Germanische Lloyd (GL)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
