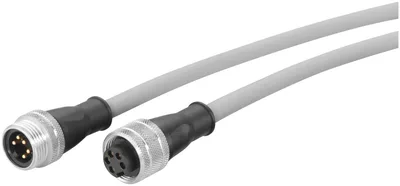

Siemens 6XV1822-5BE30
7/8" plug-in cable for Power supply of the ET 200, pre-assembled cable with 2 7/8" connectors, 5-pole, 0.3 m .
product brand nameSIMATIC NET
cable designationL-Y11Y-Z 5x1x1.5 GR
wire length0,3 m
insulation resistance coefficient1 GΩ·m
operating voltage / RMS value600 V
continuous current / of the power lines16 A; 25°C (14 A 40°C)
Ürün Hakkında
7/8" plug-in cable for Power supply of the ET 200, pre-assembled cable with 2 7/8" connectors, 5-pole, 0.3 m .
Siemens 6XV1822-5BE30
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for usePower supply of ET 200 modules with 7/8 inch power port to IP 65 degree of protection
cable designationL-Y11Y-Z 5x1x1.5 GR
wire length0,3 m
electrical data
insulation resistance coefficient1 GΩ·m
operating voltage / RMS value600 V
conductor cross section / of the power line1,5 mm²
continuous current / of the power lines16 A; 25°C (14 A 40°C)
mechanical data
number of electrical cores5
type of electrical connection7/8 inch - 180
of inner conductor1,55 mm
of the wire insulation2,73 mm
of cable sheath10,5 mm
symmetrical tolerance of the outer diameter / of cable sheath0,3 mm
design of stranding elementPairs
conductor class5
of the conductorCU, blank
of the wire insulationPVC
of cable sheathPUR
product component / PE connectionVar
marking / of coresColor, digits
of the power line insulationblack
of cable sheathgray
with single bend / minimum permissible27 mm
with multiple bends / minimum permissible63 mm
with continuous bending75 mm
number of bending cycles5000000; For use in cable carriers, for 5 million bending cycles with a bending radius of 75 mm, an acceleration of 4 m/s² ve a speed of 180 m/min
tensile load / maximum500 N
weight per length149 kg/km
plug
type of plug interlockscrewed
design of plug-in connection7/8 inch - 180
connector coding7/8 inch
ambient conditions
during operation-40... +80 °C
during storage-40... +80 °C
during transport-40... +80 °C
during installation-40... +80 °C
fire behaviorFlame-resistant acc. to IEC 60332-1
to mineral oilresistant
to greaseresistant
radiological resistance / to UV radiationresistant
protection class IPIP65 / 67
product features, product functions, product components / general
halogen-freeYok
silicon-freeVar
standards, specifications, approvals
UL/ETL listing / 300 V RatingYok
UL/ETL style / 600 V RatingVar
certificate of suitabilityUL2238 E300110
EAC approvalVar
RoHS conformityVar
