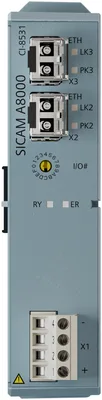

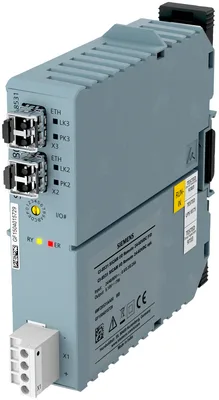

Siemens 6MF2853-1AA00
SICAM A8000 CI-8531 is an Ethernet expansion module with two fibre-optic interfaces to connect remote SICAM I/Os to SICAM A8000 CP-8050. It supports line and ring configurations and has an integrated power supply (24-60 VDC) to power up to 8 I/O modules. Optionally redundant power supply units (PS-862x or PS-864x) are supported. Two fibre-optic LC multimode plug-ins are included which support distances up to 2km between the I/O rows.
surge voltage / rated value4 kV
design of the productcommunication module
supply voltage / at DC18... 78 V
type of voltage / of the supply voltageDC
number of optical interfaces2
number of interfaces / serial0
Ürün Hakkında
SICAM A8000 CI-8531 is an Ethernet expansion module with two fibre-optic interfaces to connect remote SICAM I/Os to SICAM A8000 CP-8050. It supports line and ring configurations and has an integrated power supply (24-60 VDC) to power up to 8 I/O modules. Optionally redundant power supply units (PS-862x or PS-864x) are supported. Two fibre-optic LC multimode plug-ins are included which support distances up to 2km between the I/O rows.
Siemens 6MF2853-1AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General technical data
consumed active power / rated value / maximum7.000 mW
surge voltage / rated value4 kV
Model
design of the productcommunication module
Besleme gerilimi
supply voltage / at DC18... 78 V
type of voltage / of the supply voltageDC
Communication
number of ports / of the Ethernet interface0
number of optical interfaces2
number of interfaces / serial0

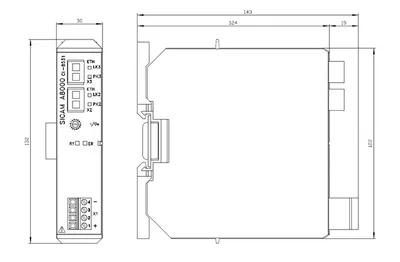

Mechanical Design
width30 mm
height132 mm
depth124 mm
product feature / conformal coatingYok
fastening method / DIN-rail mountingVar
fastening method / wall mountingYok
fastening method / rack mountingYok
material / of the enclosureplastic
product function / with function displayVar
product function / status displayVar
Degree of protection / protection class
operating resource protection classII
degree of pollution2
protection class IP / on the frontIP40
Environmental conditions
ambient temperature / during operation-40... +70 °C
ambient temperature / during storage-30... +85 °C
relative humidity5... 95 %
mounting height in relation to mean sea level / maximum3.000 m
air pressure / maximum106 kPa
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
