Siemens 6MF2852-2AA00

Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

Siemens 6MF2852-2AA00

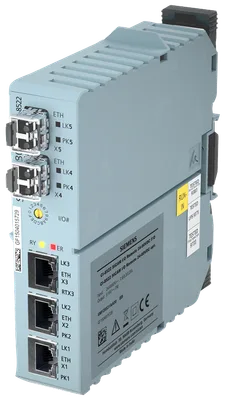

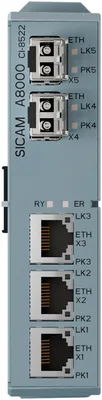

SICAM A8000 CI-8522 is an Ethernet expansion module for CP-8050 with 2x fibre-optic and 3x electrical interfaces. Up to 2x CI-8522 can be connected on the left side of CP-8050. Two fibre-optic LC multimode plug-ins are included which support distances up to 2km. RSTP/PRP/HSR is supported.

SiemensMFR # 6MF2852-2AA00SKU # YLSXNOHHRDVXV
surge voltage / rated value2 kV
design of the productcommunication module
supply voltage / at DC25,2... 30,8 V
type of voltage / of the supply voltageDC
protocol / is supported / PRPVar
protocol / is supported / RSTPVar
Paylaş
Sorularınız mı var?WhatsApp'tan yazın

Ürün Hakkında

SICAM A8000 CI-8522 is an Ethernet expansion module for CP-8050 with 2x fibre-optic and 3x electrical interfaces. Up to 2x CI-8522 can be connected on the left side of CP-8050. Two fibre-optic LC multimode plug-ins are included which support distances up to 2km. RSTP/PRP/HSR is supported.

Siemens 6MF2852-2AA00

  • Orijinal ve sertifikalı Siemens ürünü
  • Dünya genelinde tedarik ağıyla hızlı temin
  • Teknik ekibimizden ürün seçimi ve uyumluluk desteği
  • Muadil ve alternatif ürün önerisi
  • Talebinize özel fiyat teklifi ve teslim süresi

Teknik Özellikler

General technical data
consumed active power / rated value / maximum4.500 mW
surge voltage / rated value2 kV
Product details
number of expandable communication modules0
Model
design of the productcommunication module
Besleme gerilimi
supply voltage / at DC25,2... 30,8 V
type of voltage / of the supply voltageDC
Communication
protocol / to the higher-level station as server / is supported / IEC 60870-5-104Var
protocol / to the substation as master / is supported / IEC 60870-5-103Yok
protocol / is supported / IEC 60870-5-103 as deviceYok
protocol / to the substation as master / is supported / IEC 60870-5-101Yok
protocol / is supported / IEC 60870-5-101 as deviceYok
protocol / to the substation as client / is supported / IEC 61850Var
protocol / to the higher-level station as server / is supported / IEC 61850Var
protocol / at the point-to-point connection / is supported / Modbus RTU as masterYok
protocol / is supported / Modbus RTU deviceYok
protocol / is supported / Modbus TCP as clientVar
protocol / is supported / Modbus TCP as serverVar
protocol / is supported / DNP 3.0 serial as masterYok
protocol / is supported / DNP 3.0 serial as deviceYok
protocol / is supported / DNP 3.0 TCP as clientVar
protocol / is supported / DNP 3.0 TCP as serverVar
protocol / is supported / PROFIBUS DP as masterVar
protocol / is supported / PROFIBUS DP deviceYok
protocol / is supported / PROFINET as masterVar
protocol / is supported / PROFINET as deviceYok
protocol is supported / ethernetbased IO bus as deviceYok
protocol / is supported / PRPVar
protocol / is supported / RSTPVar
protocol / is supported / HSRVar
number of ports / of the Ethernet interface3
number of optical interfaces2
number of interfaces / serial0
property / of the serial interfaces / selectableYok
supply voltage / via serial interfacesYok
Cybersecurity
product feature / configurable firewallVar

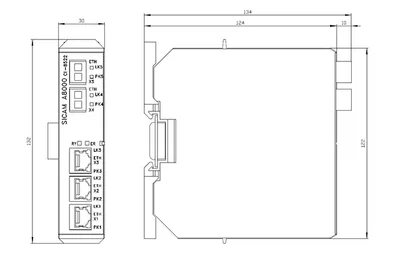

Mechanical Design
width30 mm
height132 mm
depth124 mm
product feature / conformal coatingYok
fastening method / DIN-rail mountingVar
fastening method / wall mountingYok
fastening method / rack mountingYok
material / of the enclosureplastic
product function / with function displayVar
product function / status displayVar
Degree of protection / protection class
operating resource protection classII
degree of pollution2
protection class IP / on the frontIP40
Environmental conditions
ambient temperature / during operation-25... +70 °C
ambient temperature / during storage-30... +85 °C
relative humidity5... 95 %
mounting height in relation to mean sea level / maximum3.000 m
air pressure / maximum106 kPa
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
