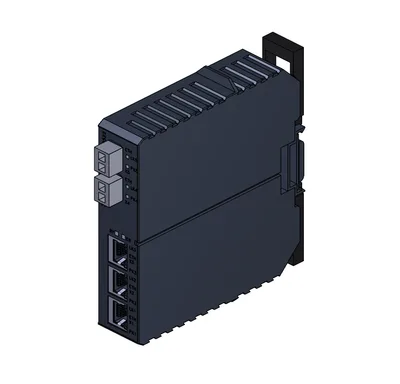

Siemens 6MF2852-0AC00
CI-8520 ETHERNET arayüz coated circuit board.
surge voltage / rated value2 kV
design of the productcommunication module
supply voltage / at DC25,2... 30,8 V
type of voltage / of the supply voltageDC
protocol / is supported / PRPVar
protocol / is supported / RSTPVar
Ürün Hakkında
Siemens 6MF2852-0AC00 (CI-8520 ETHERNET arayüz coated circuit board.), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. Siemens 6MF2852-0AC00 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.
Siemens 6MF2852-0AC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General technical data
consumed active power / rated value / maximum2.500 mW
surge voltage / rated value2 kV
Product details
number of expandable communication modules0
Model
design of the productcommunication module
Besleme gerilimi
supply voltage / at DC25,2... 30,8 V
type of voltage / of the supply voltageDC
Communication
protocol / to the higher-level station as server / is supported / IEC 60870-5-104Var
protocol / to the substation as master / is supported / IEC 60870-5-103Yok
protocol / is supported / IEC 60870-5-103 as deviceYok
protocol / to the substation as master / is supported / IEC 60870-5-101Yok
protocol / is supported / IEC 60870-5-101 as deviceYok
protocol / to the substation as client / is supported / IEC 61850Var
protocol / to the higher-level station as server / is supported / IEC 61850Var
protocol / at the point-to-point connection / is supported / Modbus RTU as masterYok
protocol / is supported / Modbus RTU deviceYok
protocol / is supported / Modbus TCP as clientVar
protocol / is supported / Modbus TCP as serverVar
protocol / is supported / DNP 3.0 serial as masterYok
protocol / is supported / DNP 3.0 serial as deviceYok
protocol / is supported / DNP 3.0 TCP as clientVar
protocol / is supported / DNP 3.0 TCP as serverVar
protocol / is supported / PROFIBUS DP as masterVar
protocol / is supported / PROFIBUS DP deviceYok
protocol / is supported / PROFINET as masterVar
protocol / is supported / PROFINET as deviceYok
protocol is supported / ethernetbased IO bus as deviceYok
protocol / is supported / PRPVar
protocol / is supported / RSTPVar
protocol / is supported / HSRVar
number of ports / of the Ethernet interface5
number of optical interfaces0
number of interfaces / serial0
property / of the serial interfaces / selectableYok
supply voltage / via serial interfacesYok
Cybersecurity
product feature / configurable firewallVar
Mechanical Design
width30 mm
height132 mm
depth124 mm
product feature / conformal coatingVar
fastening method / DIN-rail mountingVar
fastening method / wall mountingYok
fastening method / rack mountingYok
material / of the enclosureplastic
product function / with function displayVar
product function / status displayVar
Degree of protection / protection class
operating resource protection classII
degree of pollution2
protection class IP / on the frontIP40
Environmental conditions
ambient temperature / during operation-25... +70 °C
ambient temperature / during storage-30... +85 °C
relative humidity5... 95 %
mounting height in relation to mean sea level / maximum3.000 m
air pressure / maximum106 kPa
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
