Detayları Gör
Siemens
6GC6510-0AA00-0AA0
MFR #6GC6510-0AA00-0AA0
SKU #YLSCKSKICY0LVBW
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

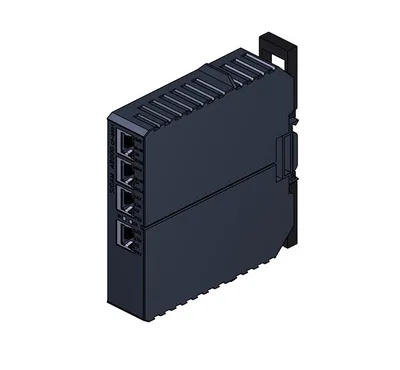

Siemens 6MF2803-1AC00
Returns only via RMA Tool, otherwise 350€ administration fee will be charged. Ethernet ve 2x serial interfaces. güç kaynağı PS-862x veya PS-864x is required. Singular veya yedekli besleme besleme is supported. en çok 8x SICAM A8000 I/O modülleri can be connected right beside the güç kaynağı. coated circuit board.
surge voltage / rated value4 kV
surge voltage resistance2,5 kV
processor clock frequency800 MHz
storage capacity / of the RAM512 MB
storage capacity / of the flash memory4 Gbyte
time resolution1 ms
Ürün Hakkında
Returns only via RMA Tool, otherwise 350€ administration fee will be charged. Ethernet ve 2x serial interfaces. güç kaynağı PS-862x veya PS-864x is required. Singular veya yedekli besleme besleme is supported. en çok 8x SICAM A8000 I/O modülleri can be connected right beside the güç kaynağı. coated circuit board.
Siemens 6MF2803-1AC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General technical data
consumed active power / rated value / maximum4.200 mW
surge voltage / rated value4 kV
surge voltage resistance2,5 kV
processor clock frequency800 MHz
storage capacity / of the RAM512 MB
storage capacity / of the flash memory4 Gbyte
product component / hardware real time clockVar
accuracy [ppm] / of the hardware real time clock5 ppm
buffer time / of the hardware real time clock / in case of power failure72 h
Product details
time resolution1 ms
number of local IO modules / maximum16
number of allowable IO lines / maximum2
number of data points / maximum20.000
Measuring functions
sampling interval10 ms
Besleme gerilimi
type of voltage / of the supply voltageDC
Inputs / Outputs
number of digital inputs0
number of isolated output groups0
number of digital outputs0
Communication
protocol / to the substation as client / is supported / IEC 60870-5-104Var
protocol / to the higher-level station as server / is supported / IEC 60870-5-104Var
protocol / to the substation as master / is supported / IEC 60870-5-103Var
protocol / is supported / IEC 60870-5-103 as deviceVar
protocol / to the substation as master / is supported / IEC 60870-5-101Var
protocol / is supported / IEC 60870-5-101 as deviceVar
protocol / to the substation as client / is supported / IEC 61850Var
protocol / to the higher-level station as server / is supported / IEC 61850Var
protocol / at the point-to-point connection / is supported / Modbus RTU as masterVar
protocol / is supported / Modbus RTU deviceVar
protocol / is supported / Modbus TCP as clientVar
protocol / is supported / Modbus TCP as serverVar
protocol / is supported / DNP 3.0 serial as masterVar
protocol / is supported / DNP 3.0 serial as deviceVar
protocol / is supported / DNP 3.0 TCP as clientVar
protocol / is supported / DNP 3.0 TCP as serverVar
protocol / is supported / PROFIBUS DP as masterVar
protocol / is supported / PROFINET as masterVar
type of mobile wireless service / is supported / GPRSYok
number of protocols / for standard application / maximum4
number of ports / of the Ethernet interface2
number of interfaces / serial2
Cybersecurity
type of communication security / Secure 104 according to IEC 62351-3Var
type of access control / role-based access control (RBAC)Var
type of system monitoring / according to SNMPVar
product function / logging via Security EventlogVar
service / as web server / HTTPSVar
product feature / configurable firewallVar
product function / firmware identifierVar
Time synchronization
time synchronization / via telecontrol protocolVar
time synchronization / via NTP/SNTPVar
time synchronization / via IRIG-BVar
product feature / time synchronization via IEEE 1588Var
Mechanical Design
width30 mm
height132 mm
depth124 mm
product feature / conformal coatingVar
product feature / with displayYok
fastening method / DIN-rail mountingVar
fastening method / wall mountingYok
fastening method / rack mountingYok
type of electrical connectionscrew terminal
connectable conductor cross-section0,2... 2,5 mm²
material / of the enclosureplastic
product feature / plug-in terminal blocksVar
product function / with function displayVar
product function / status displayVar
Degree of protection / protection class
operating resource protection classIII
degree of pollution2
protection class IP / on the frontIP20
Environmental conditions
ambient temperature / during operation-25... +70 °C
ambient temperature / during storage-30... +85 °C
relative humidity5... 95 %
mounting height in relation to mean sea level / maximum3.000 m
air pressure / maximum106 kPa
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalVar
