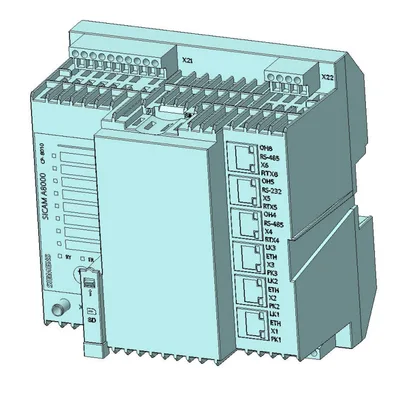

Siemens 6MF2801-0AC00
SICAM A8000 CP-8010 is a master modül which supports 3xRJ45 Ethernet ve 3x serial interfaces. It has an dahili güç kaynağı ranging from 24 to 60 VDC. SICAM A8000 I/O modülleri can be connected to the right side. There is an dahili kablosuz sensör Coordinator modül to connect sensors. On the ön an ek modül CM-888* can be inserted. -40 to +70 derece celsius çalışma sıcaklık. This varyant is conformal coated.
surge voltage / rated value4 kV
surge voltage resistance2,5 kV
number of processor cores2
processor clock frequency800 MHz
storage capacity / of the RAM512 MB
storage capacity / of the flash memory4 Gbyte
Ürün Hakkında
SICAM A8000 CP-8010 is a master modül which supports 3xRJ45 Ethernet ve 3x serial interfaces. It has an dahili güç kaynağı ranging from 24 to 60 VDC. SICAM A8000 I/O modülleri can be connected to the right side. There is an dahili kablosuz sensör Coordinator modül to connect sensors. On the ön an ek modül CM-888* can be inserted. -40 to +70 derece celsius çalışma sıcaklık. This varyant is conformal coated.
Siemens 6MF2801-0AC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General technical data
consumed active power / rated value / maximum12.500 mW
surge voltage / rated value4 kV
surge voltage resistance2,5 kV
number of processor cores2
processor clock frequency800 MHz
storage capacity / of the RAM512 MB
storage capacity / of the flash memory4 Gbyte
product component / hardware real time clockVar
accuracy [ppm] / of the hardware real time clock3,5 ppm
buffer time / of the hardware real time clock / in case of power failure72 h
Product details
time resolution1 ms
number of local IO modules / maximum16
number of allowable IO lines / maximum2
Measuring functions
sampling interval10 ms
Besleme gerilimi
supply voltage / at DC / rated value18... 78 V
type of voltage / of the supply voltageDC
Inputs / Outputs
number of isolated input groups1
number of digital inputs8
type of input voltage / at the inputsDC
input voltage / at DC / per input24... 60 V
input voltage / per input18... 70 V
consumed current / per input0,6... 1,5 mA
product feature / galvanic isolation of the inputsVar
number of isolated output groups2
number of digital outputs7
design of the digital outputrelais
type of voltage / at digital outputAC/DC
voltage / at AC / at 50 Hz / per output110... 230 V
voltage / at AC / at 60 Hz / per output230... 110 V
voltage / at DC / per output24... 60 V
voltage / per output18... 253 V
consumed current / per output8.000 mA
switching capacity apparent power / at AC / at 50 Hz2.000 V·A
switching capacity apparent power / at AC / at 60 Hz2.000 V·A
switching capacity active power / at DC1.000 W
product function / galvanic isolation of the outputsVar
Communication
protocol / to the substation as client / is supported / IEC 60870-5-104Var
protocol / to the higher-level station as server / is supported / IEC 60870-5-104Var
protocol / to the substation as master / is supported / IEC 60870-5-103Var
protocol / is supported / IEC 60870-5-103 as deviceVar
protocol / to the substation as master / is supported / IEC 60870-5-101Var
protocol / is supported / IEC 60870-5-101 as deviceVar
protocol / to the substation as client / is supported / IEC 61850Var
protocol / to the higher-level station as server / is supported / IEC 61850Var
protocol / at the point-to-point connection / is supported / Modbus RTU as masterVar
protocol / is supported / Modbus RTU deviceVar
protocol / is supported / Modbus TCP as clientVar
protocol / is supported / Modbus TCP as serverVar
protocol / is supported / DNP 3.0 serial as masterVar
protocol / is supported / DNP 3.0 serial as deviceVar
protocol / is supported / DNP 3.0 TCP as clientVar
protocol / is supported / DNP 3.0 TCP as serverVar
protocol / is supported / PROFIBUS DP as masterVar
protocol / is supported / PROFINET as masterVar
type of mobile wireless service / is supported / GPRSYok
number of protocols / for standard application / maximum4
number of protocols / through firmware expansion4
number of ports / of the Ethernet interface3
number of interfaces / serial3
supply voltage / via serial interfacesVar
Cybersecurity
type of communication security / Secure 104 according to IEC 62351-3Var
type of access control / role-based access control (RBAC)Var
type of system monitoring / according to SNMPVar
product function / logging via Security EventlogVar
service / as web server / HTTPSVar
product function / firmware identifierVar
Time synchronization
time synchronization / via telecontrol protocolVar
time synchronization / via NTP/SNTPVar
time synchronization / via IRIG-BVar
product feature / time synchronization via IEEE 1588Var
Mechanical Design
width153,5 mm
height160 mm
depth124 mm
product feature / conformal coatingVar
fastening method / DIN-rail mountingVar
fastening method / wall mountingYok
fastening method / rack mountingYok
type of electrical connectionscrew terminal
connectable conductor cross-section0,2... 2,5 mm²
material / of the enclosureplastic
product feature / plug-in terminal blocksVar
product function / with function displayVar
product function / status displayVar
Degree of protection / protection class
operating resource protection classII
degree of pollution2
protection class IP / on the frontIP20
Environmental conditions
ambient temperature / during operation-40... +70 °C
ambient temperature / during storage-40... +85 °C
relative humidity5... 95 %
mounting height in relation to mean sea level / maximum3.000 m
air pressure / maximum106 kPa
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalYok
