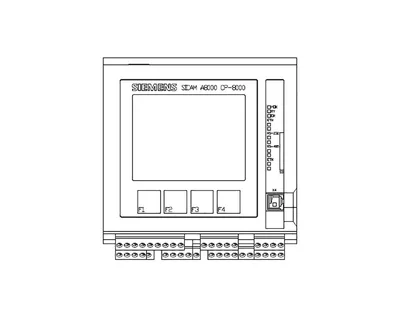

Siemens 6MF2101-1AB10-0AA0
SICAM A8000 CP-8000 24-60VDC -40 BIS +70 GRAD CELSIUS. COMPACT RTU
surge voltage / rated value4 kV
surge voltage resistance2,5 kV
processor clock frequency400 MHz
storage capacity / of the RAM32 MB
time resolution1 ms
number of local IO modules / maximum6
Ürün Hakkında
SICAM A8000 CP-8000 24-60VDC -40 BIS +70 GRAD CELSIUS. COMPACT RTU
Siemens 6MF2101-1AB10-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
General technical data
consumed active power / rated value / maximum4.300 mW
surge voltage / rated value4 kV
surge voltage resistance2,5 kV
processor clock frequency400 MHz
storage capacity / of the RAM32 MB
product component / hardware real time clockVar
accuracy [ppm] / of the hardware real time clock5 ppm
buffer time / of the hardware real time clock / in case of power failure72 h
Product details
time resolution1 ms
number of local IO modules / maximum6
Measuring functions
sampling interval10 ms
Besleme gerilimi
supply voltage / at DC / rated value18... 78 V
type of voltage / of the supply voltageDC
Inputs / Outputs
number of isolated input groups2
number of digital inputs12
type of input voltage / at the inputsDC
input voltage / at DC / per input24... 60 V
input voltage / per input18... 70 V
product feature / galvanic isolation of the inputsVar
number of isolated output groups4
number of digital outputs8
design of the digital outputrelais
type of voltage / at digital outputAC/DC
voltage / at AC / at 50 Hz / per output110... 120 V
voltage / at DC / per output24... 60 V
voltage / per output18... 253 V
consumed current / per output5.000 mA
switching capacity apparent power / at AC / at 50 Hz1.250 V·A
switching capacity active power / at DC0,05... 150 W
product function / galvanic isolation of the outputsVar

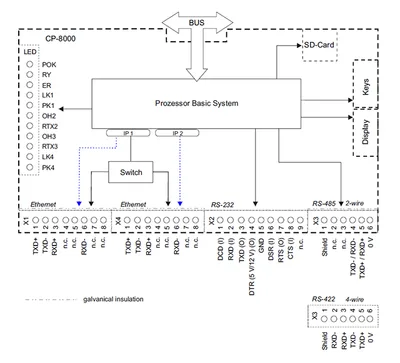

Communication
protocol / is supported / Modbus RTU deviceVar
protocol / is supported / PROFIBUS DP deviceYok
type of mobile wireless service / is supported / GPRSYok
number of ports / of the Ethernet interface2
number of interfaces / serial2
Cybersecurity
type of communication security / Secure 104 according to IEC 62351-3Var
type of access control / role-based access control (RBAC)Var
type of system monitoring / according to SNMPVar
product function / logging via Security EventlogVar
service / as web server / HTTPSVar
product function / firmware identifierVar
Time synchronization
time synchronization / via telecontrol protocolVar
time synchronization / via NTP/SNTPVar
time synchronization / via IRIG-BYok

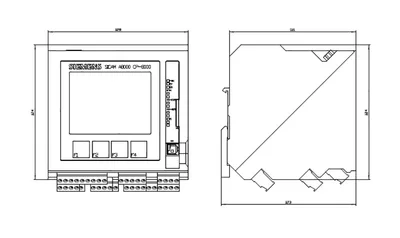

Mechanical Design
width128 mm
height124 mm
depth123 mm
product feature / conformal coatingYok
product feature / with displayVar
fastening method / DIN-rail mountingVar
fastening method / wall mountingYok
fastening method / rack mountingYok
type of electrical connectionscrew terminal
connectable conductor cross-section0,2... 2,5 mm²
material / of the enclosureplastic
product feature / plug-in terminal blocksVar
product function / with function displayVar
product function / status displayVar
Degree of protection / protection class
operating resource protection classII
degree of pollution2
protection class IP / on the frontIP20
Environmental conditions
ambient temperature / during operation-40... +70 °C
ambient temperature / during storage-40... +85 °C
relative humidity5... 95 %
mounting height in relation to mean sea level / maximum3.000 m
air pressure / maximum106 kPa
Approval certification
certificate of suitability / CE markingVar
certificate of suitability / UL approvalYok
Aksesuarlar 8
Siemens 6MF2101-1AB10-0AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9CA4110-0GE00-0DC1 | Aksesuar | |
| 9CA4110-0ND00-0DH1 | Aksesuar | |
| 9CA4110-0NE00-0DH1 | Aksesuar | |
| 9CA4140-0AD00-0DA8 | Aksesuar | |
| 9CA4140-0AE00-0DA8 | Aksesuar | |
| 9CA4160-0WE00-0DA1 | Aksesuar | |
| 9CA4160-0WE00-0DA2 | Aksesuar | |
| 9CA4160-0WE00-0DA4 | Aksesuar |
