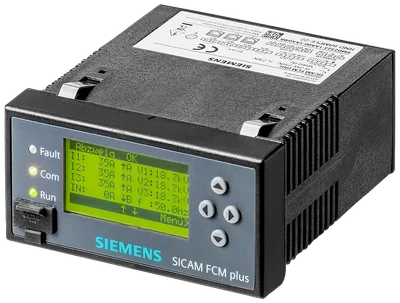

Siemens 6MD2323-1AA00-1AA0
Returns only via RMA Tool, otherwise 350€ administration fee will be charged. plus ile SUPER CAP. CONFIGURATOR - mevcut - COMPATIBLE AS PER IEC 61869-10/11 SENSORS SIX BINARY giriş FOUR dijital çıkış ROGOWSKI akım giriş NO BATTERY - MAINTENANCE FREE ön POWERED USB PORT 3 LED ve LCD için USER arayüz MODBUS RTU SLAVE - RS485 PORT 0,5% ACCURACY sınıf güç ve ENERGY METER 50 EVENT LOGS ENHANCED arıza DETECTION DUAL güç kaynağı - AC ve DC
sampling frequency / per sampling cycle9.600 Hz
number of events50
product function / voltage measurementVar
product function / current measurementVar
product function / frequency measurementVar
automatic calibrationYok
Ürün Hakkında
Returns only via RMA Tool, otherwise 350€ administration fee will be charged. plus ile SUPER CAP. CONFIGURATOR - mevcut - COMPATIBLE AS PER IEC 61869-10/11 SENSORS SIX BINARY giriş FOUR dijital çıkış ROGOWSKI akım giriş NO BATTERY - MAINTENANCE FREE ön POWERED USB PORT 3 LED ve LCD için USER arayüz MODBUS RTU SLAVE - RS485 PORT 0,5% ACCURACY sınıf güç ve ENERGY METER 50 EVENT LOGS ENHANCED arıza DETECTION DUAL güç kaynağı - AC ve DC
Siemens 6MD2323-1AA00-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Measuring functions
sampling frequency / per sampling cycle9.600 Hz
number of events50
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / power factor measurementVar
product function / voltage measurementVar
product function / current measurementVar
product function / frequency measurementVar
type of measured value detection / mean valuesVar
Product Functions
automatic calibrationYok
correction factors for current values according to IEC 61869-10Var
reversal of load flow direction per phaseYok
inversion of active power, reactive powerVar
phase-rotation supervisionVar
remote parameterizationVar
password protectionVar
self-testVar
Control and supervision function
undervoltage protection (ANSI 27)Var
directional power monitoring (ANSI 32)Yok
unbalance protection (ANSI 46)Var
definite overcurrent-time protection (ANSI 50/50N)Var
sensitive ground-fault detection for resonant-grounded systems and isolated systems (ANSI 50Ns)Var
intermittent ground-fault protectionVar
dependent overcurrent-time protection (ANSI 51/51N)Var
overvoltage protection (ANSI 59)Var
directional overcurrent-time protection, phases (ANSI 67)Var
directional ground fault protection (ANSI 67N)Var
directional sensitive ground-fault detection for resonant-grounded systems and isolated systems (ANSI 67Ns)Var
Short-Circuit Indicator Functions
product function / phase-selective fault acquisitionVar
product function / ground fault detection with cos phi/sin phiVar
product function / ground fault detection with pulse detectionVar
product function / parameter group switchover for ground fault detectionVar
type of distribution system / with regard to neutral pointsolid, isolated, compensated
number of overcurrent-time levels2
product function / automatic reset of the fault displayVar
product function / reset of the fault display via digital inputVar
product function / reset of the fault display via user interfaceVar
product function / reset of the fault display via ModbusVar
product function / AMZ overcurrent protection with inverse time over tripping characteristic (NI)Var
product function / fault display via LEDVar
product function / fault display via displayVar
product function / fault display via ModbusVar
product function / monitoring for repeated short-circuitsVar
product function / inrush current detectionVar
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
product function / apparent energy measurementVar
Measuring inputs
number of inputs / for voltage measurement3
number of inputs / for current measurement3
Besleme gerilimi
supply voltage / at AC230 V
supply voltage / at DC / rated value24... 250 V
type of voltage / of the supply voltageAC/DC
line frequency50... 60 Hz
Inputs / Outputs
number of digital inputs6
number of inputs / for temperature sensor3
number of digital outputs4
Communication
protocol / is supported / Modbus RTUVar
Time synchronization
type of time synchronizationModbus
Mechanical Design
width96 mm
height48 mm
depth109,5 mm
weight500 g
fastening method / panel mountingVar
type of electrical connectionPush-in terminals
Degree of protection / protection class
protection class IP / on the frontIP40
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-40... +70 °C
ambient temperature / during storage-25... +55 °C
mounting height in relation to mean sea level / maximum2.000 m
Approval certification
certificate of suitability / CE markingVar
