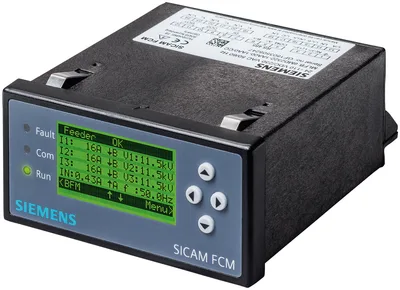

Siemens 6MD2322-1AA00-1AA0
Returns only via RMA Tool, otherwise 350€ administration fee will be charged. MEASUREMENT VIA CAPACITIVE gerilim DIVIDER EARTH arıza dedektör için LOW-POWER akım SENSORS 1 BINARY giriş 2 BINARY çıkış MEASUREMENT/CALCULATION OF VALUES U,I,P,Q,S,F,COS PHI ENERGY COUNTER COMMUNICATION MODBUS RTU güç kaynağı DC24-110V / AC230V
number of events20
automatic calibrationYok
phase-rotation supervisionVar
min/max pointerVar
direct low voltage measurementYok
remote parameterizationVar
Ürün Hakkında
Returns only via RMA Tool, otherwise 350€ administration fee will be charged. MEASUREMENT VIA CAPACITIVE gerilim DIVIDER EARTH arıza dedektör için LOW-POWER akım SENSORS 1 BINARY giriş 2 BINARY çıkış MEASUREMENT/CALCULATION OF VALUES U,I,P,Q,S,F,COS PHI ENERGY COUNTER COMMUNICATION MODBUS RTU güç kaynağı DC24-110V / AC230V
Siemens 6MD2322-1AA00-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Product details
product function / connection to capacitive LRM voltage detecting systemsYok
Measuring functions
number of events20
product function / phase angle measurementVar
product function / active power measurementVar
product function / reactive power measurementVar
product function / apparent power measurementVar
product function / power factor measurementVar
product function / measurement of ground currentVar
product function / calculation of ground currentVar
accuracy class / according to IEC 61557-120,5
Product Functions
automatic calibrationYok
adjustable rated value of primary current50... 1.000 A
adjustable rated value of primary voltage1.000 V... 36 kV
correction factors for current values according to IEC 61869-10Var
reversal of load flow direction per phaseVar
inversion of active power, reactive powerVar
phase-rotation supervisionVar
min/max pointerVar
direct low voltage measurementYok
remote parameterizationVar
remote firmware updateVar
password protectionVar
undervoltage detectionVar
overvoltage detectionVar
overcurrent detectionVar
self-testVar
number of display languages / noteGerman, English, Spanish, Portuguese, French
Short-Circuit Indicator Functions
product function / phase-selective fault acquisitionVar
product function / ground fault detection with cos phi/sin phiVar
product function / ground fault detection with pulse detectionVar
product function / ground fault detection with earth leakage wiperVar
product function / parameter group switchover for ground fault detectionVar
type of distribution system / with regard to neutral pointgrounded, insulated, compensated
number of overcurrent-time levels2
product function / automatic reset of the fault displayVar
product function / reset of the fault display via digital inputVar
product function / reset of the fault display via user interfaceVar
product function / reset of the fault display via ModbusVar
product function / AMZ overcurrent protection with inverse time over tripping characteristic (NI)Var
product function / fault display via LEDVar
product function / fault display via displayVar
product function / fault display via ModbusVar
product function / monitoring for repeated short-circuitsVar
product function / intermittent ground fault detectionVar
product function / inrush current detectionVar
Energy Management functions
product function / active energy measurementVar
product function / reactive energy measurementVar
Measuring inputs
number of inputs / for voltage measurement3
number of inputs / for current measurement3
Besleme gerilimi
supply voltage / at AC230 V
supply voltage / at DC / rated value24... 250 V
type of voltage / of the supply voltageAC/DC
line frequency50... 60 Hz
Inputs / Outputs
number of digital inputs1
number of digital inputs / notereset of fault display
number of digital outputs2
Communication
protocol / is supported / Modbus RTUVar
Time synchronization
type of time synchronizationModbus
Mechanical Design
width96 mm
height48 mm
depth109,5 mm
weight300 g
fastening method / panel mountingVar
type of electrical connectionspring-loaded terminal / screw terminal
Degree of protection / protection class
protection class IP / on the frontIP40
protection class IP / rear sideIP20
Environmental conditions
ambient temperature / during operation-40... +70 °C
ambient temperature / during storage-25... +55 °C
mounting height in relation to mean sea level / maximum2.000 m
Approval certification
certificate of suitability / CE markingVar
Aksesuarlar 8
Siemens 6MD2322-1AA00-1AA0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9CA4110-0GE00-0DC1 | Aksesuar | |
| 9CA4110-0ND00-0DH1 | Aksesuar | |
| 9CA4110-0NE00-0DH1 | Aksesuar | |
| 9CA4140-0AD00-0DA8 | Aksesuar | |
| 9CA4140-0AE00-0DA8 | Aksesuar | |
| 9CA4160-0WE00-0DA1 | Aksesuar | |
| 9CA4160-0WE00-0DA2 | Aksesuar | |
| 9CA4160-0WE00-0DA4 | Aksesuar |
