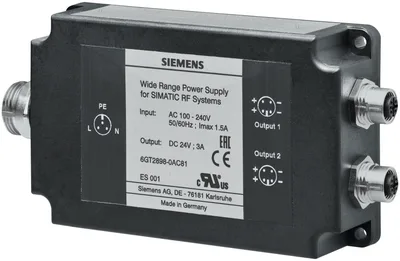

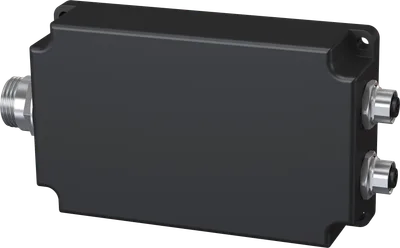

Siemens 6GT2898-0AC81
SIMATIC RF600 Wide-range voltage supply for SIMATIC RF systems In: AC: 100-240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP 67 Without power supply cable / connector.
product brand nameSIMATIC RF
voltage curve / at inputAC single phase
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value100... 240 V
50 HzVar
60 HzVar
Ürün Hakkında
SIMATIC RF600 Wide-range voltage supply for SIMATIC RF systems In: AC: 100-240 V Out: 24 V DC 3 A CE, UL, CSA degree of protection IP 67 Without power supply cable / connector.
Siemens 6GT2898-0AC81
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
type of current supplyInput: 100 to 230 V AC, output: 24 V DC / 3 A
suitability for useTwo readers can be connected directly. Robust ve cast industrial power supply unit with high degree of protection for use directly the process.
suitability for operationFor connecting to suitable power grids; for direct connection of 2 readers
electrical data / input
voltage curve / at inputAC single phase
supply voltage / 1 / rated value230 V
supply voltage / 1 / rated value100... 240 V
type of voltage / 1 / of the supply voltageAC
50 HzVar
60 HzVar
electrical data / output
voltage curve / at outputDC 24 V fixed voltage
1 / at DC / rated value24 V
rated value3 A
rated range0... 3,9 A
efficiency in percent90 %
electrical data / closed-loop control
relative overall tolerance / of the voltage2 %
electrical data / protection and monitoring
design of the overvoltage protection / at outputUout nom +20 % tipik
property of the output / short-circuit proofVar
design of short-circuit protectionPermanent
enduring short circuit current / RMS value / maximum3,9 A
electrical data / safety
galvanic isolation / between input and outputVar
galvanic isolationSELV / PELV according to EN 60950
operating resource protection classClass II (protective insulation)
interfaces
for power supply2
at inputMini-Change® connector, male, 3-pin
at output2 x M12 4 pin, A-coded, female
signal inputs/outputs
product component / signaling contactYok

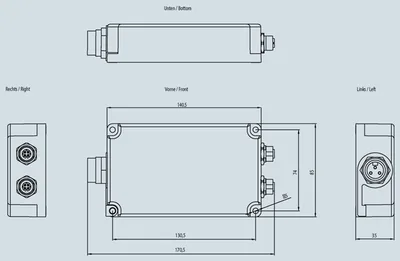

design, dimensions and weights
width85 mm
height35 mm
depth175 mm
net weight0,72 kg
fastening method4 screws M5
ambient conditions
during operation-25... +75 °C
during storage-40... +85 °C
during transport-40... +85 °C
notefree convection
protection class IPIP67
standards, specifications, approvals
for safety / from CSA and ULEN 60950 / UL 60950 / CAN/CSA 22,2.950, 3 Edition
for emitted interferenceEN 61000-6-3, EN 55011 (Class B)
accessories
accessoriesConnecting cabl...EU, US veya UK
