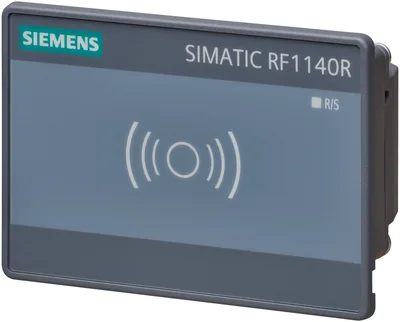

Siemens 6GT2831-6CB00
Successor 6GT2831-6CB01 start of delivery planned for 12/27 Reader RF1140R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; Power over Ethernet, 24 V RJ45 IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, .
product brand nameSIMATIC RF
operating frequency0,125... 13,56 MHz
product feature / multitag-capableVar
operating frequency / 12,4 GHz (only for BLE support)
materialPC-GF
colortitanium gray
Ürün Hakkında
Successor 6GT2831-6CB01 start of delivery planned for 12/27 Reader RF1140R; LF 125 kHz, HITAG 1/2/S, EM41xx, HF, ISO 14443 A/B, ISO15693; Power over Ethernet, 24 V RJ45 IP65 front, -25 to +55 °C; 90 x 62 x 25 mm LxWxH; with integrated antenna, .
Siemens 6GT2831-6CB00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
suitability for operationHiTag 1/2/S, EM4xxx, ISO 15693 ve ISO 14443 A/B transponder, for connection in the system landscape
radio frequencies
operating frequency0,125... 13,56 MHz
protocol / with radio transmissionHiTag 1/2/S, EM41xx/45xx, EKS key, ISO 15693, ISO 14443 A/B, Felica, NXP NTAG21x, HID iClass
transfer rate / with radio transmission / maximum424 kbit/s
product feature / multitag-capableVar
operating frequency / 12,4 GHz (only for BLE support)
interfaces
standard for interfaces / for communicationTCP IP (XML) / ModbusTCP / RJ 45
mechanical data
materialPC-GF
colortitanium gray
mounting distance / relating to metal surfaces / recommended / minimum0 mm
supply voltage, current consumption, power loss
rated value24 V
20... 30 V
ambient conditions
during operation-25... +55 °C
during storage-25... +55 °C
during transport-25... +55 °C
protection class IPIP65; on front after cabinet installation, IP20 rear
shock resistanceEN 60721-3-7 Class 7 M2
shock acceleration300 m/s²
vibrational acceleration50 m/s²
design, dimensions and weights
width90 mm
height62 mm
depth45,5 mm
net weight0,17 kg
fastening method4 stud bolts M4 for cabinet installation
product features, product functions, product components / general
display version3-color LED
product feature / silicon-freeVar
standards, specifications, approvals
certificate of suitabilityRadio according to R&TTE guidelines EN300 330 ve EN 301489, FCC, cULus
IECExYok
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
accessories
accessoriescard holder, clean room cover, HID license card
