Detayları Gör
Siemens
6GF3326-0HT01
MFR #6GF3326-0HT01
SKU #YLSQNBXRUOOGWDE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

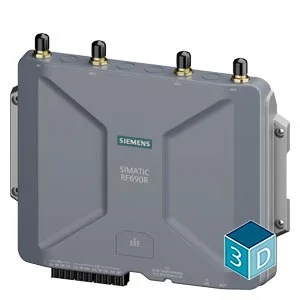

Siemens 6GT2811-7AD20-1AA0
halefi 6GT2811-8AD20-1AA0 başlatma of teslimat planned için 12/27 FCC; Ethernet RJ45 PoE 4 antennas, 1 DI/DQ, 24 V DC; -25 to +55 °C; olmadan aksesuar ve antennas.
product brand nameSIMATIC RF
operating frequency902... 928 MHz
transmit power3... 2000 mW
for each external antenna / maximum2000 mW
for each external antenna / maximum4000 mW
product feature / multitag-capableVar
Ürün Hakkında
halefi 6GT2811-8AD20-1AA0 başlatma of teslimat planned için 12/27 FCC; Ethernet RJ45 PoE 4 antennas, 1 DI/DQ, 24 V DC; -25 to +55 °C; olmadan aksesuar ve antennas.
Siemens 6GT2811-7AD20-1AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
suitability for operationRFID high-performance reader for use in the warehouse environment for recording high flows of goods.
radio frequencies
operating frequency902... 928 MHz
transmit power3... 2000 mW
for each external antenna / maximum2000 mW
for each external antenna / maximum4000 mW
protocol / with radio transmissionEPCglobal Class 1 Gen 2 V2 / ISO/IEC 18000-62
transfer rate / with radio transmission / maximum640 kbit/s
product feature / multitag-capableVar
interfaces
number of external antennas4
standard for interfaces / for communicationEthernet, OPC UA, XML
for external antenna(s)RP-TNC
for supply voltageterminal block, 4-pole
at the digital inputs/outputsRJ45 connector (8-pole)
number of digital inputs1
number of digital outputs1
mechanical data
materialLexan
colorsilver, TI-Grey
mounting distance / relating to metal surfaces / recommended / minimum0 mm
supply voltage, current consumption, power loss
rated value24 V
20... 30 V
at 24 V / typical2 A
at 24 V / maximum2 A
ambient conditions
during operation-25... +55 °C
during storage-40... +85 °C
during transport-40... +85 °C
ambient condition / for operationWith operating temperature below -20 °C: Warming-up time least 10 minutes
protection class IPIP33
shock resistanceEN 60068-2-27, EN 60068-2-6
shock acceleration250 m/s²
vibrational acceleration30 m/s²
resistance to mechanical stressThe maximum values for shock ve vibration acceleration must not occur as continuous stress ve they apply exclusively to assembly using screws
design, dimensions and weights
width245 mm
height209 mm
depth41 mm
net weight1,3 kg
fastening methodVesa 100 with 4 screws, DIN rail, mounting hole 4 x M4 screws
of antenna cable / minimum1 m
of antenna cable / maximum40 m
product features, product functions, product components / general
display version3 LEDs
protocol / is supported / Media Redundancy Protocol (MRP)Yok
product function / of the PROFINET IO device / is supported / H-Sync forwardingYok
LLDPYok
PROFINET IO protocolYok
TCP/IPVar
SNMP v1Var
SNMP v2Yok
SNMP v3Var
DCPVar
EtherNet/IP protocolYok
OPC UAVar
product feature / silicon-freeVar
product functions / management, configuration, engineering
type of parameterizationWBM
type of programmingOPC UA, XML
type of computer-switched communicationTCP/IP
standards, specifications, approvals
certificate of suitabilitywireless according to FCC, IC (Canada), cULus, OPC UA: embedded UA Server Profile
IECExYok
MTBF28 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total289,45 kg
during manufacturing40 kg
during operation249 kg
after end of life0,45 kg
accessories
accessoriesup to 4 external antennas, set for mounting on top-hat rail veya profile rail
