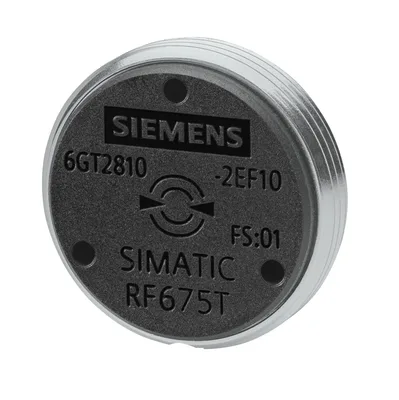

Siemens 6GT2810-2EF10
SIMATIC RF675T (FCC) PBT, aluminum, 20 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 902 to 928 MHz IMPINJ MONZA R6-P 128 bits (16 bytes) EPC ID 32 bits (4 bytes) user memory screw in, glue in metal printing not possible temperature from -40 °C to +85 °C IP67 10 units/carton 1 carton 10 units MOQ
product brand nameSIMATIC RF
operating frequency902... 928 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
product feature / multitag-capableVar
polarizationLinear
product component / backup batteryYok
Ürün Hakkında
SIMATIC RF675T (FCC) PBT, aluminum, 20 x 6 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 902 to 928 MHz IMPINJ MONZA R6-P 128 bits (16 bytes) EPC ID 32 bits (4 bytes) user memory screw in, glue in metal printing not possible temperature from -40 °C to +85 °C IP67 10 units/carton 1 carton 10 units MOQ
Siemens 6GT2810-2EF10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
radio frequencies
operating frequency902... 928 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
transfer rate / with radio transmission / maximum320 kbit/s
product feature / multitag-capableVar
polarizationLinear
electrical data
product component / backup batteryYok
memory
type of memoryEEPROM
storage capacity / of the user memory16 bayt
type of memory organizationEPC memory 128 bits (16 bytes) assigned with sequential identifier, user memory 32 bit (4 bytes), TID memory 96 bit (12 bytes)
number of read cycles / at ambient temperature < 40 °C / maximum1E+14
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memorylock, unlock, write protection, password protection
type of transponder chip usedImpinj Monza R6P
mechanical data
materialPBT ve aluminum
colorblack / silver
mounting distance / relating to metal surfaces / recommended / minimum0 mm
ambient conditions
during read/write access-20... +85 °C
outside the read/write area-40... +160 °C
during storage-20... +85 °C
protection class IPIP67
shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3
shock acceleration500 m/s²
vibrational acceleration200 m/s²
resistance to mechanical stressTorsion ve bending stress not permissible
design, dimensions and weights
height6 mm
diameter20 mm
net weight3 g
fastening methodthread M20 x 1
product features, product functions, product components / general
silicon-freeVar
printableYok
standards, specifications, approvals
IECExYok
