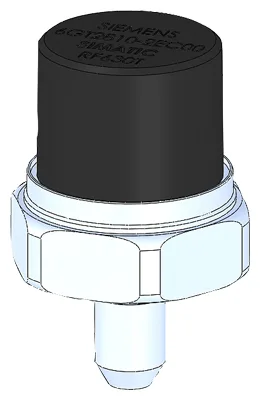

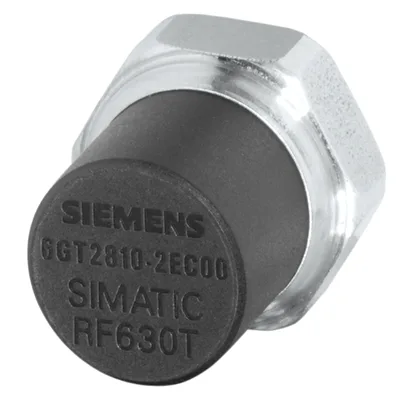

Siemens 6GT2810-2EC00
SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
product brand nameSIMATIC RF
operating frequency865... 868 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
product feature / multitag-capableVar
polarizationLinear
product component / backup batteryYok
Ürün Hakkında
SIMATIC RF630T (ETSI) PA, 21 x 21 mm ISO 18000-63, EPC Class 1 Gen 2 frequency 865 to 868 MHz NXP UCODE G2XM 240 bits (30 bytes) EPC ID 512 bits (64 bytes) user memory fixing by screwing in on metal printing not possible temperature from -40 °C to +125 °C IP68/IPx9K 10 units/carton 1 carton 10 units MOQ
Siemens 6GT2810-2EC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
radio frequencies
operating frequency865... 868 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
transfer rate / with radio transmission / maximum320 kbit/s
product feature / multitag-capableVar
polarizationLinear
electrical data
product component / backup batteryYok
memory
type of memoryEEPROM
storage capacity / of the user memory64 bayt
type of memory organizationEPC memory 96 bit (12 bayt) assigned with sequential identifier ve expandable up to 240 bit (30 bayt), user memory 512 bit (64 bayt), TID memory 64 bit (8 bayt)
number of read cycles / at ambient temperature < 40 °C / maximum1E+14
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memorylock, unlock, write protection, password protection
type of transponder chip usedNXP G2XM
mechanical data
materialPA6.6 GF / stainless steel
colorblack / silver
tightening torque / of the screw for securing the equipment / maximum6 N·m
mounting distance / relating to metal surfaces / recommended / minimum0 mm
ambient conditions
during read/write access-25... +85 °C
outside the read/write area-40... +125 °C
during storage-40... +125 °C
protection class IPIP68/IPx9K
shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3
shock acceleration1000 m/s²
vibrational acceleration200 m/s²

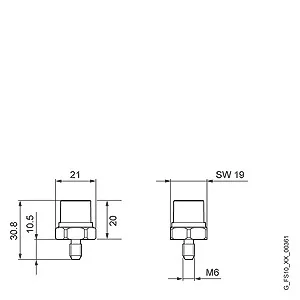

design, dimensions and weights
height20 mm
diameter21 mm
net weight22 g
fastening methodscrewing (M6)
product features, product functions, product components / general
tamper-proofYok
printableYok
standards, specifications, approvals
IECExYok
MTBF1712 a
