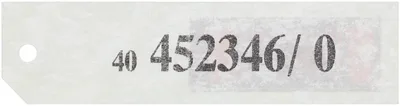

Siemens 6GT2810-2AG84-0AX0
SIMATIC RF682L SmartLabel NOMEX, 156 x 40 x 0,4 mm ISO 18000-63, EPC sınıf 1 Gen 2 frekans 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by montaj heat-resistant printed (customized) sıcaklık from -40 °C to +200 °C IP67 1000 units in the box 5 boxes in the carton 5,000 units MOQ
product brand nameSIMATIC RF
operating frequency860... 960 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
product feature / multitag-capableVar
polarizationLinear
product component / backup batteryYok
Ürün Hakkında
SIMATIC RF682L SmartLabel NOMEX, 156 x 40 x 0,4 mm ISO 18000-63, EPC sınıf 1 Gen 2 frekans 865 to 928 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory fixing by montaj heat-resistant printed (customized) sıcaklık from -40 °C to +200 °C IP67 1000 units in the box 5 boxes in the carton 5,000 units MOQ
Siemens 6GT2810-2AG84-0AX0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
radio frequencies
operating frequency860... 960 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
transfer rate / with radio transmission / maximum320 kbit/s
product feature / multitag-capableVar
polarizationLinear
electrical data
product component / backup batteryYok
memory
type of memoryEEPROM
storage capacity / of the user memory256 bayt
type of memory organizationEPC memory 96 bit (12 bayt) expandable up to 448 bit (56 bayt), user memory 2048 bit (256 bayt), TID memory 96 bit (12 bayt)
number of read cycles / at ambient temperature < 40 °C / maximum1E+14
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memorylock, unlock, kill, write protection, password protection
type of transponder chip usedNXP Ucode 7-xm 2k
mechanical data
materialPaper
colorbeige
mounting distance / relating to metal surfaces / recommended / minimum3 mm
ambient conditions
during read/write access-25... +85 °C
outside the read/write area-40... +230 °C
during storage-40... +85 °C
ambient condition / for operationOperating temperature permanent up to 85 °C, for 6 hours up to 200 °C, for 1 hour up to 220 °C, short-term up to 230 °C
protection class IPIP67
resistance to mechanical stressTorsion ve bending stress conditionally permissible
design, dimensions and weights
width156 mm
height0,4 mm
depth40 mm
net weight3 g
fastening methodgluing, screwing
product features, product functions, product components / general
silicon-freeVar
tamper-proofYok
printableVar
printing processcustomer-specific labeling
standards, specifications, approvals
IECExYok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,0088 kg
during manufacturing0,0086 kg
during operation0,00017 kg
after end of life5E-5 kg
