Siemens
6GF3326-0HT01
MFR #6GF3326-0HT01
SKU #YLSQNBXRUOOGWDE
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

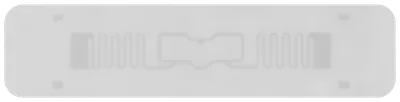

Siemens 6GT2810-2AE83-0AX1
SIMATIC RF630L SmartLabel PET white, 105 x 25 mm ISO 18000-63, EPC sınıf 1 Gen 2 frekans 860 to 960 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory self-adhesive strongly adhesive on plastic printable thermotransfer sıcaklık from -25 °C to +85 °C IP67 1,000 units/roll 5 rolls/carton 5,000 units MOQ roll 76,2 mm (3") core diameter
product brand nameSIMATIC RF
operating frequency860... 930 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
product feature / multitag-capableVar
polarizationLinear
product component / backup batteryYok
Ürün Hakkında
SIMATIC RF630L SmartLabel PET white, 105 x 25 mm ISO 18000-63, EPC sınıf 1 Gen 2 frekans 860 to 960 MHz NXP UCODE 7xm-2k 448 bits (56 bytes) EPC ID 2048 bits (256 bytes) user memory self-adhesive strongly adhesive on plastic printable thermotransfer sıcaklık from -25 °C to +85 °C IP67 1,000 units/roll 5 rolls/carton 5,000 units MOQ roll 76,2 mm (3") core diameter
Siemens 6GT2810-2AE83-0AX1
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
radio frequencies
operating frequency860... 930 MHz
protocol / with radio transmissionEPCglobal Class 1 Gen 2 / ISO 18000-63
transfer rate / with radio transmission / maximum320 kbit/s
product feature / multitag-capableVar
polarizationLinear
electrical data
product component / backup batteryYok
memory
type of memoryEEPROM
storage capacity / of the user memory256 bayt
type of memory organizationEPC 96 bit (12 bayt) expandable up to 448 bit (56 bayt), user memory 2048 bit (256 bayt), TID 96 bit (12 bayt)
number of read cycles / at ambient temperature < 40 °C / maximum1E+14
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memorylock, unlock, kill, write protection, password protection
type of transponder chip usedNXP Ucode 7-xm 2k
mechanical data
materialPET
colorwhite
mounting distance / relating to metal surfaces / recommended / minimum3 mm
ambient conditions
during read/write access-25... +85 °C
outside the read/write area-25... +130 °C
during storage5... 25 °C
ambient condition / for operationMaximum storage life 2 years
protection class IPIP67 in bonded state, suitable for washing facilities
resistance to mechanical stressTorsion ve bending stress conditionally permissible
design, dimensions and weights
width105 mm
height0,3 mm
depth25 mm
net weight3 g
fastening methodone-side adhesible
pack typeRolls with 1000 labels for applicator with 3'' core
product features, product functions, product components / general
tamper-proofYok
printableVar
printing processThermal transfer process
standards, specifications, approvals
IECExYok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,0088 kg
during manufacturing0,0086 kg
during operation0,00017 kg
after end of life5E-5 kg
