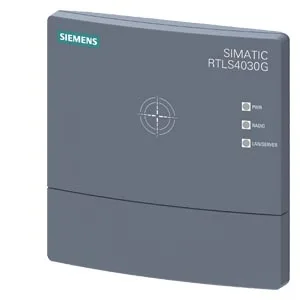

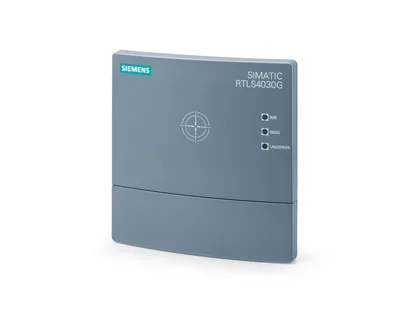

Siemens 6GT2701-5DB33
SIMATIC RTLS Gateway RTLS4030G, UWB/phase, ISED,
product brand nameSIMATIC RTLS
suitability for operationRTLS4000 with UWB, phase technology
accuracy of localization / 1 / typical0,1 m
protocol / 1 / with radio transmissionIEEE 802.15.4-2015 UWB HRP PHY
accuracy of localization / 2 / typical3 m
protocol / 2 / with radio transmissionIEEE 802.15.4
Ürün Hakkında
Siemens 6GT2701-5DB33 (SIMATIC RTLS Gateway RTLS4030G, UWB/phase, ISED,), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. Siemens 6GT2701-5DB33 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.
Siemens 6GT2701-5DB33
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RTLS
suitability for operationRTLS4000 with UWB, phase technology
radio frequencies
operating frequency / 16000... 7000 MHz; depending on the country approvals
equivalent isotropically radiated power / 10,001... 0,037 mW
range / 1 / maximum30 m; Range information for open air applications; always follow the manual
accuracy of localization / 1 / typical0,1 m
protocol / 1 / with radio transmissionIEEE 802.15.4-2015 UWB HRP PHY
transfer rate / 1 / with radio transmission / maximum850 kbit/s
operating frequency / 22400... 2480 MHz; depending on the country approvals
equivalent isotropically radiated power / 20,022... 100 mW
range / 2 / maximum500 m; Range information for open air applications; always follow the manual
accuracy of localization / 2 / typical3 m
protocol / 2 / with radio transmissionIEEE 802.15.4
transfer rate / 2 / with radio transmission / maximum1000 kbit/s
interfaces
standard for interfaces / for communicationEthernet, MESH Network
for supply voltageBulgin PX0412/03P, 3-pin connector, PoE over RJ45 acc. to IEEE 802.3af
for communications interfaceRJ45, Amphenol LTW RCP-5SPFFHTCU7001
at the digital inputs/outputsBulgin PX0412/03P, 3-pin connector
number of digital inputs0
number of digital outputs1
mechanical data
materialASA+PC
colortitanium gray
supply voltage, current consumption, power loss
rated value24 V
8... 30 V
at 24 V / maximum0,38 A
ambient conditions
during operation-15... +50 °C
during storage-15... +50 °C
during transport-15... +50 °C
protection class IPIP65
design, dimensions and weights
width180 mm
height48 mm
depth180 mm
net weight0,65 kg
fastening method3 M4 screws
product features, product functions, product components / general
display version3 LEDs
protocol / is supported / Media Redundancy Protocol (MRP)Yok
LLDPYok
PROFINET IO protocolYok
TCP/IPVar
SNMP v1Yok
SNMP v2Yok
SNMP v3Yok
DCPYok
EtherNet/IP protocolYok
OPC UAYok
product feature / silicon-freeVar
standards, specifications, approvals
certificate of suitabilityEU conformity according to RED, RoHS, CMIIT
IECExYok
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total144,37 kg
during manufacturing12,12 kg
during operation131,41 kg
after end of life0,84 kg
accessories
accessoriesCorner mount bracket, mounting plate for ceiling suspension
