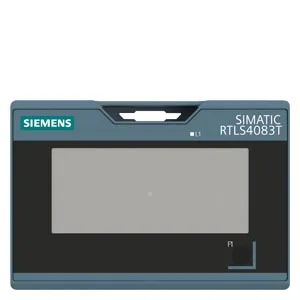

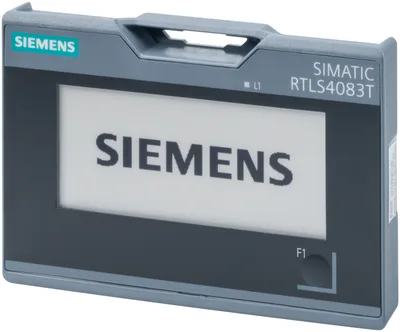

Siemens 6GT2700-5DC15
SIMATIC RTLS Transponder RTLS4083T, plus, UWB/phase, FCC.
product brand nameSIMATIC RTLS
typical0,1 m
protocol / 1 / with radio transmissionIEEE 802.15.4-2015 HRP UWB
typical3 m
protocol / 2 / with radio transmissionIEEE 802.15.4
product component / backup batteryVar
Ürün Hakkında
Siemens 6GT2700-5DC15 (SIMATIC RTLS Transponder RTLS4083T, plus, UWB/phase, FCC.), Yılsa Mühendislik güvencesiyle orijinal ve hızlı şekilde tedarik edilir. Siemens 6GT2700-5DC15 fiyatı, stok durumu ve teknik özellikleri için hemen teklif alın.
Siemens 6GT2700-5DC15
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RTLS
radio frequencies
operating frequency / 13100... 7000 MHz; depending on the country approvals
range / 1 / maximum30 m; Range information for open air applications; always follow the manual
typical0,1 m
protocol / 1 / with radio transmissionIEEE 802.15.4-2015 HRP UWB
transfer rate / 1 / with radio transmission / maximum850 kbit/s
operating frequency / 22400... 2480 MHz; depending on the country approvals
range / 2 / maximum50 m; Range information for open air applications; always follow the manual
typical3 m
protocol / 2 / with radio transmissionIEEE 802.15.4
transfer rate / 2 / with radio transmission / maximum1000 kbit/s
electrical data
type of voltage supplyLi-ion battery rechargeable, charging contacts
product component / backup batteryVar
product feature / replaceable batteryYok
battery life / typical1 a; standby mode: 1 year, UWB localization in 1 second cycle: 6 months, display update in 10 second cycle: 25 days
memory
type of memoryFLASH
type of memory organizationmemory for 5 background images, 20 fonts ve 20 text fields for 58 characters her biri
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than20 a
property of memoryConfiguration memory
mechanical data
materialPC
colorTi gray
ambient conditions
during read/write access0... 40 °C
outside the read/write area-10... +50 °C
during storage-10... +50 °C
ambient condition / for operationtemperature for display operation 0 to 40 °C, on charging: 10 to +40 ℃
protection class IPIP65

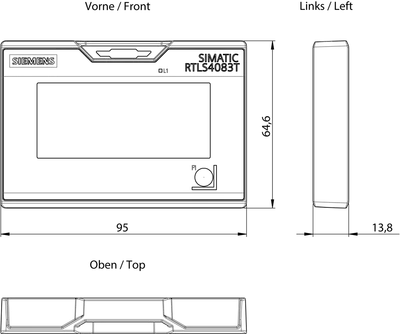

design, dimensions and weights
width95 mm
height13,8 mm
depth64,6 mm
net weight85 g
fastening methodCable ties, mounting clips
product features, product functions, product components / general
display version1 two-color LED, 2,7'' ePaper display with 296 x 128 pixels
operator element version1 function key
silicon-freeVar
standards, specifications, approvals
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total4,98 kg
during manufacturing4,85 kg
during operation0,08 kg
after end of life0,05 kg
accessories
accessoriescharging station, mounting clips
