Siemens 6GT2600-4AC00

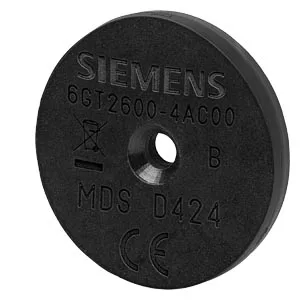

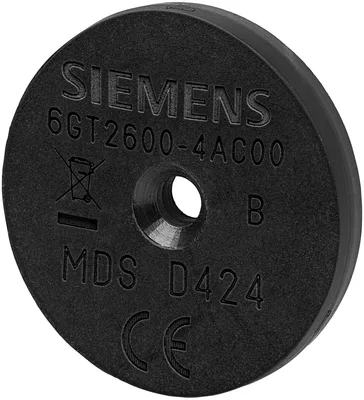

Transponder MDS D424 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 27x 4 mm (DxH); Minimum order quantity 20 units.
product brand nameSIMATIC RF
operating frequency / rated value13,56 MHz
protocol / with radio transmissionISO 15693
product feature / multitag-capableVar
product component / backup batteryYok
type of memoryFRAM
Ürün Hakkında
Transponder MDS D424 for RF200/RF300 ISO/MOBY D button ISO 15693, Chip type FUJITSU MB89R118, 2000 byte FRAM User memory 27x 4 mm (DxH); Minimum order quantity 20 units.
Siemens 6GT2600-4AC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
radio frequencies
operating frequency / rated value13,56 MHz
protocol / with radio transmissionISO 15693
transfer rate / with radio transmission / maximum26,5 kbit/s
product feature / multitag-capableVar
electrical data
product component / backup batteryYok
memory
type of memoryFRAM
storage capacity / of the user memory2000 bayt
type of memory organizationUID (fixed code) 8 bytes, user memory 2000 bytes, configuration memory 40 bytes
number of read cycles / at ambient temperature < 40 °C / maximum1E+12
number of write cycles / at ambient temperature < 40 °C / maximum1E+12
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memoryBlock-by-block write protection of the user memory
type of transponder chip usedFujitsu MB89R118
mechanical data
materialEpoxy resin
colorblack
tightening torque / of the screw for securing the equipment / maximum1 N·m
mounting distance / relating to metal surfaces / recommended / minimum15 mm
ambient conditions
during read/write access-25... +85 °C
outside the read/write area-40... +100 °C
during storage-40... +100 °C
protection class IPIP67/IPx9K
shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3
shock acceleration1000 m/s²
vibrational acceleration200 m/s²
design, dimensions and weights
height4 mm
diameter27 mm
net weight5 g
fastening methodM3 screw, gluing
product features, product functions, product components / general
silicon-freeVar
printableYok
standards, specifications, approvals
IECExYok
MTBF171 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,93 kg
during manufacturing0,88 kg
during operation0,00041 kg
after end of life0,05 kg
accessories
accessoriesMounting support ve spacer
