Siemens 6GT2600-0AB10

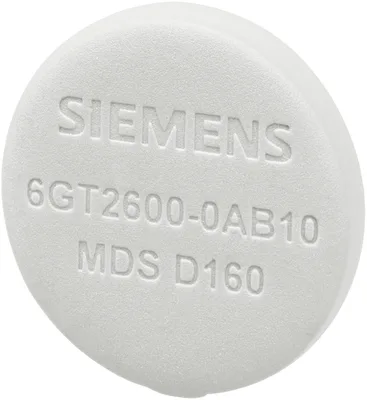

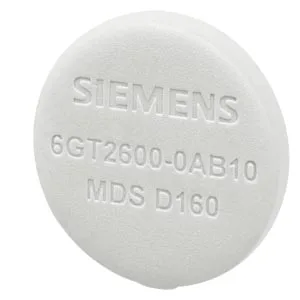

transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units
product brand nameSIMATIC RF
operating frequency / rated value13,56 MHz
protocol / with radio transmissionISO 15693
product feature / multitag-capableVar
product component / backup batteryYok
type of memoryEEPROM
Ürün Hakkında
transponder MDS D160 for RF200/RF300 ISO/MOBY D heat-resistant up to +175 °C ISO 15693 chip type, NXP ICODE SLI, 112 byte user memory; 16x 3 mm (DxH); minimum order quantity 100 units
Siemens 6GT2600-0AB10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC RF
radio frequencies
operating frequency / rated value13,56 MHz
protocol / with radio transmissionISO 15693
transfer rate / with radio transmission / maximum26,5 kbit/s
product feature / multitag-capableVar
electrical data
product component / backup batteryYok
memory
type of memoryEEPROM
storage capacity / of the user memory112 bayt
type of memory organizationUID (fixed code) 8 bytes, user memory 112 bytes, configuration memory 8 bytes
number of read cycles / at ambient temperature < 40 °C / maximum1E+14
number of write cycles / at ambient temperature < 40 °C / maximum100000
data retention time / at ambient temperature < 40 °C / not less than10 a
property of memoryBlock-by-block write protection of the user memory
type of transponder chip usedNXP I-Code SLI
mechanical data
materialPPS
colorbeige
mounting distance / relating to metal surfaces / recommended / minimum10 mm
ambient conditions
during read/write access-25... +85 °C
outside the read/write area-40... +175 °C
during storage-25... +100 °C
ambient condition / for operationOperating temperature permanent up to 100 °C, up to 175 °C min. 100 washing cycles, one time up to 220 °C for 30 s
protection class IPIP68/IPx9K
shock resistanceAccording to DIN EN 60721-3-7 Class 7 M3
shock acceleration400 m/s²
vibrational acceleration100 m/s²
design, dimensions and weights
height3 mm
diameter16 mm
net weight1,2 g
fastening methodpatch, sewing, gluing
product features, product functions, product components / general
printableYok
standards, specifications, approvals
IECExYok
MTBF228 a
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,93 kg
during manufacturing0,88 kg
during operation0,00041 kg
after end of life0,05 kg
accessories
accessoriesMounting support ve spacer
