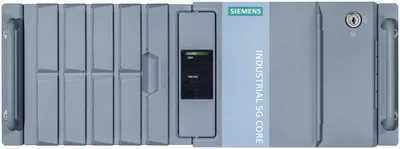

Siemens 6GK8531-1AA00
SINEC Industrial 5G Core on SIMATIC IPC 1047E 19" 4U rack PC 572 mm 2x Intel Xeon SP Silver 4210 10C/20T - 2.2 GHz/3.2 GHz 2x 1 Gbit LAN (RJ45) N2 and MGMT interface; 4x 10 Gbit NIC (SFP+) N6 (data network) and N3 interface; GNSS support; web user interface for configuration of the complete 5G system
product brand nameSIMATIC
suitability for useprivate 5G networks
transfer rate100, 1.000 Mbit/s
transfer rate / 1 / acc. to PCIe10 Gbit/s
operating frequency1.575,42 MHz
230 V
Ürün Hakkında
SINEC Industrial 5G Core on SIMATIC IPC 1047E 19" 4U rack PC 572 mm 2x Intel Xeon SP Silver 4210 10C/20T - 2.2 GHz/3.2 GHz 2x 1 Gbit LAN (RJ45) N2 and MGMT interface; 4x 10 Gbit NIC (SFP+) N6 (data network) and N3 interface; GNSS support; web user interface for configuration of the complete 5G system
Siemens 6GK8531-1AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSIMATIC
suitability for useprivate 5G networks
transfer rate
transfer rate100, 1.000 Mbit/s
interfaces / for communication / integrated
number of interfaces / according to Industrial Ethernet2; N2 interface ve Management interface
interfaces / other
number of slots / acc. to PCIe1; PCIe Ethernet network adapter 4x SFP+ N6 (data network) ve N3 interface
transfer rate / 1 / acc. to PCIe10 Gbit/s
product functions / GPS
type of satellite navigation system / is supported / GPS, GLONASS and GalileoVar
operating frequency1.575,42 MHz
supply voltage, current consumption, power loss
230 V
110... 230 V
type of voltage / of the supply voltageAC
consumed current / at AC / at 230 V / typical2,3 A
50 HzVar
60 HzVar
ambient conditions
during operation / minimum0 °C
during operation / maximum40 °C; with maximum configuration
during storage and transport / minimum-20 °C; maks. 20 °C/h (no condensation)
during storage and transport / maximum60 °C
relative humidity / at 25 °C / during operation / maximum80 %
protection class IPIP30; front: IP20 rear
design, dimensions and weights
designrack PC, 19"
number of modular height units / relating to 19-inch cabinet4
width430 mm
height176,6 mm
depth572 mm
net weight25 kg
fastening methodyatay rack mounting
hardware configuration
design of the processor2x Intel Xeon SP Silver 4210 10C/20T - 2,2 GHz/3.2GHz
design of the drive/storage medium / solid-state diskVar; 1 x SSD M.2 NVMe
storage capacity / on solid-state disk1.000 Gibyte
type of memoryDDR4-SDRAM DIMM
operating system / pre-installedLinux
softwareSINEC Industrial 5G Core software (EU)
standards, specifications, approvals
certificate of suitability / CE markingVar; industry
UL onayıVar; industry
cULus approvalVar; industry
CSA approvalVar; CSA C22.2 Yok. 142
