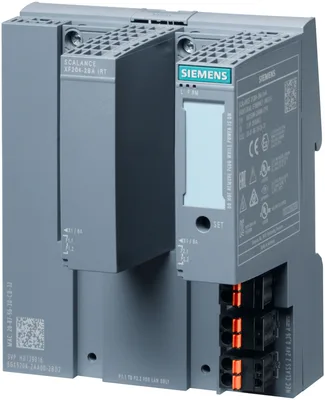

Siemens 6GK5204-2AA00-2BD2
XF204-2BA IRT managed IE IRT switch, 4 x 10/100 Mbit/s, 2 x Bus adapter interface , error signaling contact, with set pushbutton, redundant 24 V DC power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional.
product brand nameSCALANCE
product type designationXF204-2BA IRT
transfer rate10, 100 Mbit/s
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
Ürün Hakkında
XF204-2BA IRT managed IE IRT switch, 4 x 10/100 Mbit/s, 2 x Bus adapter interface , error signaling contact, with set pushbutton, redundant 24 V DC power supply, PROFINET IO device, network management, Redundancy Manager integrated, incl. electron. manual on CD-ROM, C-PLUG optional.
Siemens 6GK5204-2AA00-2BD2
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product type designation
product brand nameSCALANCE
product type designationXF204-2BA IRT
transfer rate
transfer rate10, 100 Mbit/s
interfaces / for communication / integrated
for network components or terminal equipment0
interfaces / other
for signaling contact1
for power supply1
for signaling contact2-pole terminal block
for power supply2-pole terminal block
C-PLUGVar
at DC / rated value24 V
at DC / maximum0,1 A
supply voltage, current consumption, power loss
product component / connection for redundant voltage supplyVar
type of voltage / 1 / of the supply voltageDC
supply voltage / 1 / rated value24 V
power loss [W] / 1 / rated value2,4 W
supply voltage / 1 / voltage range19,2... 28,8
consumed current / 1 / maximum0,1 A
type of electrical connection / 1 / for power supply2-pole terminal block
product component / 1 / fusing at power supply inputVar
fuse protection type / 1 / at input for supply voltage2,5 A (cannot be replaced by user)
ambient conditions
during operation-40... +60 °C
during storage-40... +85 °C
during transport-40... +85 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP20

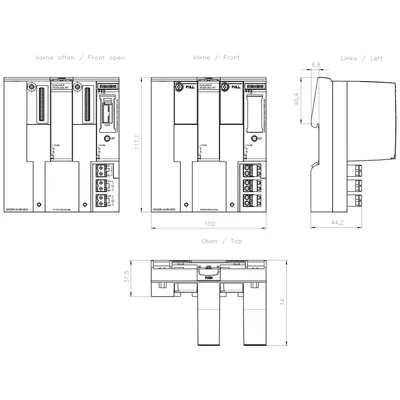

design, dimensions and weights
designcompact
width100 mm
height117 mm
depth74 mm
net weight0,25 kg
35 mm DIN-rail mountingVar
wall mountingYok
S7-300 rail mountingYok
S7-1500 rail mountingYok
product features, product functions, product components / general
cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s50
cascading in cases of star topologyany (depending only on signal propagation time)
product functions / management, configuration, engineering
CLIVar
web-based managementVar
MIB supportVar
TRAPs via emailVar
configuration with STEP 7Var
port mirroringYok
multiport mirroringYok
with IRT / PROFINET IO switchVar
PROFINET IO diagnosisVar
switch-managedVar
PROFINET conformity classC
network load class / according to PROFINETII
TelnetVar
HTTPVar
HTTPSVar
TFTPVar
FTPVar
BOOTPYok
DCPVar
LLDPVar
SNMP v1Var
SNMP v2Var
SNMP v3Var
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
product functions / diagnostics
port diagnosticsVar
statistics Packet SizeVar
statistics packet typeVar
error statisticsVar
product functions / DHCP
DHCP clientVar
product functions / redundancy
protocol / is supported / Media Redundancy Protocol (MRP)Var
media redundancy protocol (MRP) with redundancy managerVar
Media Redundancy Protocol for Planned Duplication (MRPD)Var
ring redundancyVar
high speed redundancy protocol (HRP) with redundancy managerVar
high speed redundancy protocol (HRP) with standby redundancyVar
Parallel Redundancy Protocol (PRP)/operation in the PRP-networkVar
Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA)Yok
passive listeningVar
product functions / security
SSHVar
product functions / time
SICLOCK supportVar
NTPYok
SNTPVar
standards, specifications, approvals
CE markingVar
UKCA markingVar
EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1Var
cULus approvalVar
KC onayıVar
Regulatory Compliance Mark (RCM)Var
for EMC interference emissionEN 61000-6-4:2001 (Class A)
for immunity to EMCEN 61000-6-2, EN 61000-6-4
for safety / from CSA and ULUL 61010-1, CAN/CSA C22.2 Yok. 61010-1
standards, specifications, approvals / hazardous environments
ATEXVar
UKEXVar
IECExVar
ULhazloc approvalVar
CCC / for hazardous zone according to GB standardVar
FM registrationVar
standards, specifications, approvals / other
railway application in accordance with EN 50155Yok
railway application in accordance with EN 50124-1Yok
RoHS conformityVar
resistance to air pollution / conformity according to ANSI/ISA-71.04Var; G3
standards, specifications, approvals / marine classification
certificate of suitability / shipbuilding approval / noteCertifications marked 'Yok' are currently under renewal.
American Bureau of Shipping Europe Ltd. (ABS)Yok
French marine classification society (BV)Yok
Chinese Classification Society (CCS)Yok
Det Norske Veritas (DNV)Yok
Korean Register of Shipping (KRS)Yok
Lloyds Register of Shipping (LRS)Yok
Nippon Kaiji Kyokai (NK)Yok
Polski Rejestr Statkow (PRS)Yok
Royal Institution of Naval Architects (RINA)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total95,76 kg
during manufacturing20,21 kg
during operation75,23 kg
after end of life0,32 kg
product functions / general
warranty period5 a
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing20,21 kg
global warming potential [CO2 eq] / during operation75,23 kg
global warming potential [CO2 eq] / after end of life0,32 kg
global warming potential [CO2 eq] / total95,76 kg
Aksesuarlar 11
Siemens 6GK5204-2AA00-2BD2 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1900-0AB00 | Aksesuar | |
| 6XV1812-8A | Aksesuar · Cables · power cables | |
| 6XV1840-2AH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-2B | Aksesuar · Cables · network cable electrical | |
| 6GK1901-1BB50-0AA0 | Aksesuar | |
| 6GK1901-1GA00 | Aksesuar | |
| 6GK1901-0BP10-6AA0 | Aksesuar | |
| 6GK1901-1BB10-6AA0 | Aksesuar | |
| 6GK1901-1BB20-6AA0 | Aksesuar | |
| 6GK1907-0AB11-6AA0 | Aksesuar | |
| 6XV1801-2B | Aksesuar · Cables · power cables |
