Siemens 6GK1905-0EA10

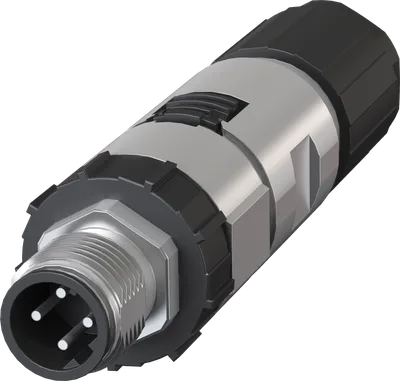

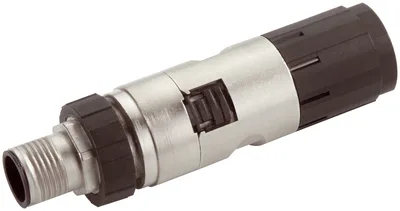

PROFIBUS FC M12 plug PRO M12 plug-in connector with rugged metal enclosure and FC connection system, with axial cable outlet, for use with ET 200 PRO, pin insert (B-coded) 1 pack=5 units.
product brand nameSIMATIC NET
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
for PROFIBUS cables1
material / of the enclosuremetal
number of reuses10
locking mechanism designScrewed joint
Ürün Hakkında
PROFIBUS FC M12 plug PRO M12 plug-in connector with rugged metal enclosure and FC connection system, with axial cable outlet, for use with ET 200 PRO, pin insert (B-coded) 1 pack=5 units.
Siemens 6GK1905-0EA10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting electrical PB FC bus cables to ET200 PRO, suitable for fast assembly with the FastConnect system
transfer rate
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
for PROFIBUS cables1
for network components or terminal equipment1
for PROFIBUS cablesdahili insulation displacement terminals for 2-core PB FC installation cables
for network components or terminal equipmentM12 connector (male insert, 4-pin, B-coded)
type of electrical connection / FastConnectVar
mechanical data
material / of the enclosuremetal
number of reuses10
locking mechanism designScrewed joint
tightening torque / for M12 round connector / maximum0,6 N·m
connector coding / of the M12 circular connectorB

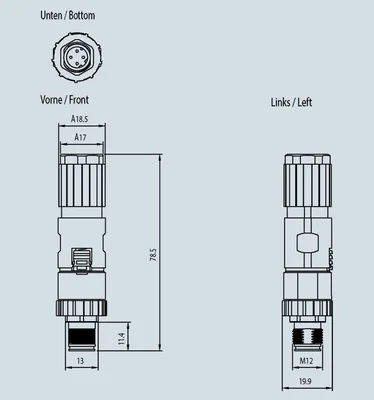

design, dimensions and weights
type of cable outlet180° cable outlet
width19 mm
height19 mm
depth73 mm
net weight40 g
connectable cable diameter6... 8 mm
connectable conductor cross-section0,33 mm²
ambient conditions
during operation-40... +85 °C
during storage-40... +85 °C
during transport-40... +85 °C
to waterresistant
protection class IPIP65/67
product features, product functions, product components / general
silicon-freeVar
strain reliefVar
standards, specifications, approvals
RoHS conformityVar
UL onayıVar
cULus approvalVar
railway application in accordance with EN 50155Yok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,32 kg
during manufacturing0,28 kg
during operation0,01 kg
after end of life0,03 kg
