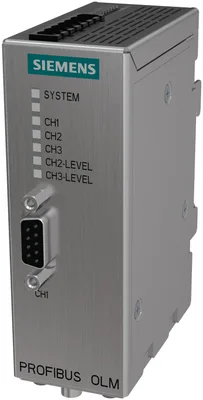

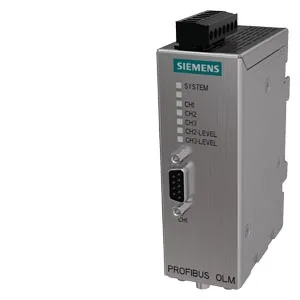

Siemens 6GK1503-3CC00
PROFIBUS OLM/G12-1300 V4.0 optical link module with 1 RS 485 and 2 glass fiber optic cable interfaces (4 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.
product brand nameSIMATIC NET
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
transfer rate / with PROFIBUS PA45,45 kbit/s
for measuring device1
for signaling contact1
for power supply1
Ürün Hakkında
PROFIBUS OLM/G12-1300 V4.0 optical link module with 1 RS 485 and 2 glass fiber optic cable interfaces (4 BFOC sockets), 1300 Nm shaft length for large distances with signaling contact and test port.
Siemens 6GK1503-3CC00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
transfer rate / with PROFIBUS PA45,45 kbit/s
interfaces
number of electrical/optical connections / for network components or terminal equipment / maximum3
for network components or terminal equipment1
for measuring device1
for signaling contact1
for power supply1
for redundant voltage supply1
for network components or terminal equipment9-pin Sub-D socket
for measuring device2-pole terminal block
for power supply and signaling contact5-pole terminal block
number of optical interfaces / for fiber optic cable2
design of the optical interface / for fiber optic cableBFOC port
optical data
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum8 dB
propagation delay [bit]6,5 bit
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-19 dB
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km-29 dB
wavelength / of the optical interface / note1310 nm, single-mode
for glass FOC with 10/125 µm or 9/125 µm / at 0.5 dB/km / maximum15 km
signal inputs/outputs
operating voltage / of the signaling contacts / at DC / rated value24 V
operational current / of the signaling contacts / at DC / maximum0,1 A
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
supply voltage / at DC18,8... 28,8 V
product component / fusing at power supply inputVar
consumed current / at DC / at 24 V / maximum0,2 A
ambient conditions
during operation0... 60 °C
during storage-40... +70 °C
during transport-40... +70 °C
at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP40

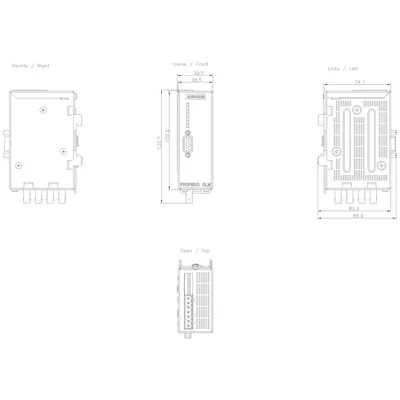

design, dimensions and weights
designcompact
width39,5 mm
height112 mm
depth74,5 mm
net weight340 g
35 mm DIN-rail mountingVar
wall mountingVar
product functions / redundancy
product function / ring redundancyVar
standards, specifications, approvals
for safety / from CSA and ULUL 60950-1, CSA C22.2 Nr. 60950-1
for emitted interferenceEN 61000-6-4 (Class A)
for interference immunityEN 61000-6-2
certificate of suitabilityEN 61000-6-2, EN 61000-6-4
CE markingVar
C-TickVar
American Bureau of Shipping Europe Ltd. (ABS)Var
French marine classification society (BV)Var
Det Norske Veritas (DNV)Var
Germanische Lloyd (GL)Var
Lloyds Register of Shipping (LRS)Var
Nippon Kaiji Kyokai (NK)Var
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / hazardous environments
certificate of suitability / CCC / for hazardous zone according to GB standardYok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total165,41 kg
during manufacturing15,09 kg
during operation150,26 kg
after end of life0,06 kg
