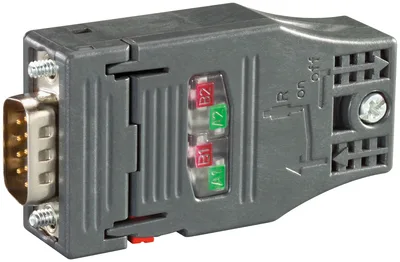

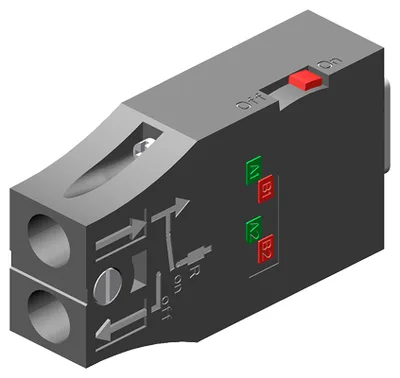

Siemens 6GK1500-0FC10
PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM, Transfer rate: 12 Mbit/s, terminating resistor with isolating function, plastic enclosure.
product brand nameSIMATIC NET
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
for PROFIBUS cables2
material / of the enclosureplastic
locking mechanism designScrewed joint
type of cable outlet180° cable outlet
Ürün Hakkında
PROFIBUS FC RS 485 plug 180 PROFIBUS connector with FastConnect connection plug and axial cable outlet for Industry PC, SIMATIC OP, OLM, Transfer rate: 12 Mbit/s, terminating resistor with isolating function, plastic enclosure.
Siemens 6GK1500-0FC10
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
suitability for useFor connecting PROFIBUS nodes to the PROFIBUS bus cable
transfer rate
transfer rate / with PROFIBUS9,6 kbit/s... 12 Mbit/s
interfaces
for PROFIBUS cables2
for network components or terminal equipment1
for PROFIBUS cablesdahili insulation displacement terminals for 2-core PB FC installation cables
for network components or terminal equipmentSub-D connector (9-pin)
type of electrical connection / FastConnectVar
mechanical data
design of terminating resistordahili resistor combination that can be selected with slide switch. Disconnect function: When the resistor is connected, the outgoing bus is isolated.
material / of the enclosureplastic
locking mechanism designScrewed joint

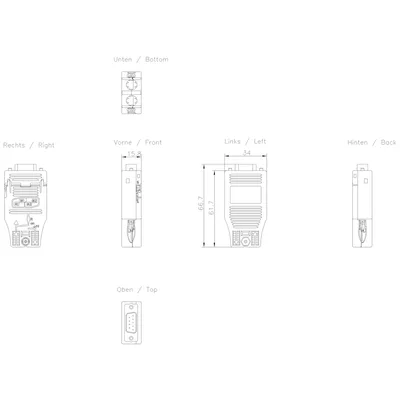

design, dimensions and weights
type of cable outlet180° cable outlet
width16 mm
height62 mm
depth34,5 mm
net weight40 g
ambient conditions
during operation-40... +70 °C
during storage-25... +80 °C
during transport-25... +80 °C
at 25 °C / without condensation / during operation / maximum75 %
protection class IPIP20
product features, product functions, product components / general
silicon-freeVar
PG connection socketYok
strain reliefVar
standards, specifications, approvals
RoHS conformityVar
UL onayıVar
cULus approvalVar
railway application in accordance with EN 50155Yok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total0,73 kg
during manufacturing0,44 kg
during operation0,24 kg
after end of life0,05 kg
