Siemens 6GK1162-3AA00

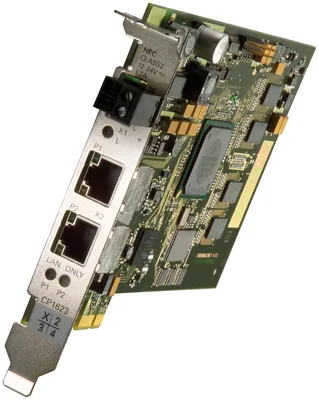

Communications processor CP 1623 PCI Express X1 (3, 3 V/12 V) for connection to Industrial Ethernet (10/100/1000 Mbit/s) with 2-port switch (RJ45) can be uploaded onto device HARDNET-IE S7 and S7-REDCONNECT operating system support see SIMATIC NET software released as of SIMATIC NET CD V7.0 HF1.
product brand nameSIMATIC NET
transfer rate10, 100, 1000 Mbit/s
for power supply1
of the backplane busPCI Express x1
for power supply2-pole terminal block
type of voltage / of the supply voltageDC
Ürün Hakkında
Communications processor CP 1623 PCI Express X1 (3, 3 V/12 V) for connection to Industrial Ethernet (10/100/1000 Mbit/s) with 2-port switch (RJ45) can be uploaded onto device HARDNET-IE S7 and S7-REDCONNECT operating system support see SIMATIC NET software released as of SIMATIC NET CD V7.0 HF1.
Siemens 6GK1162-3AA00
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
transfer rate10, 100, 1000 Mbit/s
interfaces
at the 1st interface / according to Industrial Ethernet2
for power supply1
at the 1st interface / according to Industrial EthernetRJ45 port
of the backplane busPCI Express x1
for power supply2-pole terminal block
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
type of voltage supply / optional external power supplyVar
1 / from backplane bus3,3 V
2 / from backplane bus12 V
external24 V
external10,5... 32 V
at 3.3 V9 %
at 5 V5 %
at 12 V8 %
at 24 V33 %
1 / from backplane bus / at DC / maximum0,85 A
2 / from backplane bus / at DC / maximum0,4 A
from external supply voltage / at DC / at 12 V / maximum0,55 A
from external supply voltage / at DC / at 24 V / maximum0,3 A
power loss [W]7,6 W
power loss [W] / in switch mode / maximum7,2 W
ambient conditions
during operation5... 55 °C
during storage-20... +60 °C
during transport-20... +60 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP00

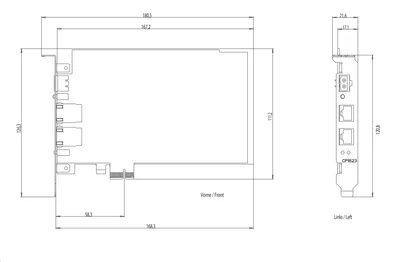

design, dimensions and weights
module formatPCI Express x1 (half length)
width18 mm
height111 mm
depth167 mm
net weight124 g
product features, product functions, product components / general
number of plug-in cards of same design / plug-in / per PC station4
number of units / note-
performance data / open communication
software / for open communication / by means of SEND/RECEIVE / requiredVar, HARDNET-IE S7 (S7-1613)
number of possible connections / for open communication / by means of SEND/RECEIVE / maximum120
performance data / S7 communication
software / for S7 communication / requiredVar, HARDNET-IE S7 (S7-1613)
number of possible connections / for S7/PG communication / maximum120
number of possible connections / for optimized S7 communication / maximum40
performance data / multi-protocol mode
number of active connections / with multi-protocol mode120
number of configurable connections / per PC station207
performance data / PROFINET CBA
software / for PROFINET CBA communication / requiredVar, PN CBA OPC server
number of remote connection partners / with PROFINET CBA228
number of connections / with PROFINET CBA / total10000
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
SNMP v3Yok
DCPVar
LLDPYok
configuration software / requiredIncluded in the scope of delivery of the required software product
configuration software / for PROFINET CBA / requiredVar, SIMATIC iMAP
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
I&M2 - installation dateYok
I&M3 - commentYok
I&M4 - signatureYok
I&M4 - OEM dataYok
product functions / switch
product feature / switchVar
product function / switch-managedYok
product function / with IRT / PROFINET IO switchYok
product functions / redundancy
software / for redundancy function / requiredVar, HARDNET-IE S7-REDCONNECT for communication with SIMATIC S7 H systems
product functions / time
product function / SICLOCK supportVar
protocol / is supported / NTPYok
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total240,36 kg
during manufacturing33,2 kg
during operation207,1 kg
after end of life0,06 kg
Aksesuarlar 34
Siemens 6GK1162-3AA00 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1706-1NW00-3AL0 | Aksesuar | |
| 6GK1706-1NW17-0AA0 | Aksesuar | |
| 6GK1706-1NW17-0AK0 | Aksesuar | |
| 6GK1706-1NW17-0AC0 | Aksesuar | |
| 6GK1706-1NW17-0AK1 | Aksesuar | |
| 6GK1706-1NX00-3AL0 | Aksesuar | |
| 6GK1706-1NX17-0AA0 | Aksesuar | |
| 6GK1706-1NX17-0AK0 | Aksesuar | |
| 6GK1716-0HB17-0AA0 | Aksesuar | |
| 6GK1716-0HB17-0AC0 | Aksesuar | |
| 6GK1716-0HB17-0AK0 | Aksesuar | |
| 6GK1716-0HB17-0AK1 | Aksesuar | |
| 6GK1716-1CB00-3AL0 | Aksesuar | |
| 6GK1716-1CB17-0AA0 | Aksesuar | |
| 6GK1716-1CB17-0AK0 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical |
