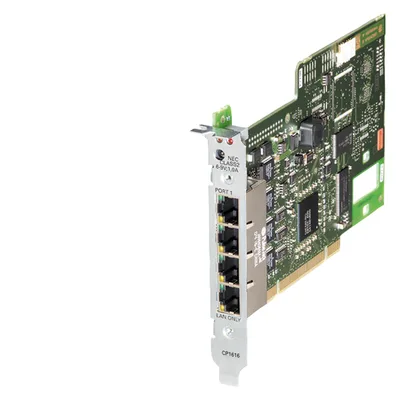

Siemens 6GK1161-6AA02
Communications processor CP 1616 PCI card (32-bit; 33/66 MHz; 3.3/5 V) with asic ERTEC 400 for connection to PROFINET IO with 4-port real-time switch (RJ45) via development kit DK-16XX PN IO; NCM PC.
product brand nameSIMATIC NET
transfer rate100
for power supply1
type of voltage / of the supply voltageDC
1 / from backplane bus5 V
external6... 9 V
Ürün Hakkında
Communications processor CP 1616 PCI card (32-bit; 33/66 MHz; 3.3/5 V) with asic ERTEC 400 for connection to PROFINET IO with 4-port real-time switch (RJ45) via development kit DK-16XX PN IO; NCM PC.
Siemens 6GK1161-6AA02
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
transfer rate100
interfaces
at the 1st interface / according to Industrial Ethernet4
for power supply1
at the 1st interface / according to Industrial EthernetRJ45 port
of the backplane busPCI (32Bit 3,3V/5V UniversalKey 33/66MHz)
for power supplyLow-voltage socket for hollow plug 3,5 mm (-) / 1,3 mm (+)
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
1 / from backplane bus5 V
external6... 9 V
at 5 V5 %
at 12 V5 %
1 / from backplane bus / at DC / maximum0,8 A
from external supply voltage / at DC / at 6 V / maximum0,65 A
from external supply voltage / at DC / at 9 V / maximum0,45 A
power loss [W]4 W
power loss [W] / in switch mode / maximum4,1 W
ambient conditions
during operation5... 70 °C
during storage-40... +60 °C
during transport-20... +60 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP00
design, dimensions and weights
module formatPCI
width18 mm
height107 mm
depth167 mm
net weight110 g
product features, product functions, product components / general
number of plug-in cards of same design / plug-in / per PC station1
number of units / note-
performance data / PROFINET communication / as PN IO controller
software / for PROFINET IO communication / requiredYok
number of PN IO devices / on PROFINET IO controller / operable / total128
number of PN IO IRT devices / on PROFINET IO controller / operable64
as user data for input variables / as PROFINET IO controller / maximum8192 bayt
as user data for output variables / as PROFINET IO controller / maximum8192 bayt
as user data for input variables per PN IO device / as PROFINET IO controller / maximum1430 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum1430 bayt
performance data / PROFINET communication / as PN IO device
as user data for input variables / as PROFINET IO device / maximum1430 bayt
as user data for output variables / as PROFINET IO device / maximum1430 bayt
as user data for input variables / for each sub-module as PROFINET IO device254 bayt
as user data for output variables / for each sub-module as PROFINET IO device254 bayt
as user data for the consistency area for each sub-module254 bayt
number of submodules / per PROFINET IO-Device64
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
configuration software / requiredIncluded in scope of supply
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
I&M2 - installation dateVar
I&M3 - commentVar
I&M4 - signatureVar
I&M4 - OEM dataVar
product functions / diagnostics
web-based diagnosticsVar
port diagnosticsVar
product functions / switch
product feature / switchVar
product function / switch-managedYok
product function / with IRT / PROFINET IO switchVar
product functions / redundancy
software / for redundancy function / requiredYok
ring redundancyVar
redundancy managerVar
protocol / is supported / Media Redundancy Protocol (MRP)Var
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total145,53 kg
during manufacturing33,2 kg
during operation112,27 kg
after end of life0,06 kg
