Siemens 6GK1160-4AA01

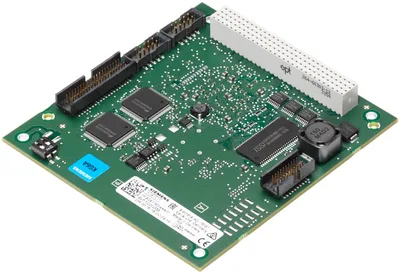

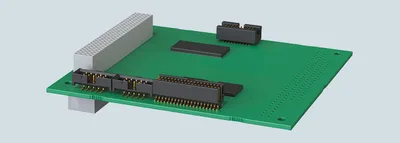

Communications processor CP 1604 PC/104 plus card (32-bit; 33/66 MHz; 3.3/5 V) with asic ERTEC 400 for connection to PROFINET IO with 4-port real-time switch via Development kit DK-16XX PN IO; NCM PC.
product brand nameSIMATIC NET
transfer rate100
for power supply1
of the backplane busPCI-104 (32Bit)
type of voltage / of the supply voltageDC
1 / from backplane bus5 V
Ürün Hakkında
Communications processor CP 1604 PC/104 plus card (32-bit; 33/66 MHz; 3.3/5 V) with asic ERTEC 400 for connection to PROFINET IO with 4-port real-time switch via Development kit DK-16XX PN IO; NCM PC.
Siemens 6GK1160-4AA01
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
product brand nameSIMATIC NET
transfer rate
transfer rate100
interfaces
at the 1st interface / according to Industrial Ethernet4
for power supply1
at the 1st interface / according to Industrial EthernetRJ45 port via connection board
of the backplane busPCI-104 (32Bit)
for power supply4-pole terminal block through power supply board
supply voltage, current consumption, power loss
type of voltage / of the supply voltageDC
type of voltage supply / optional external power supplyVar
1 / from backplane bus5 V
external5 V
noteoptional external power supply ve external supply voltage alternatively via power supply board (optional accessory)
at 5 V5 %
1 / from backplane bus / at DC / maximum0,8 A
from external supply voltage / at DC / at 24 V / maximum0,3 A
power loss [W]4 W
power loss [W] / in switch mode / maximum4,1 W
ambient conditions
during operation5... 60 °C
during storage-20... +60 °C
during transport-20... +60 °C
relative humidity / at 25 °C / without condensation / during operation / maximum95 %
protection class IPIP00

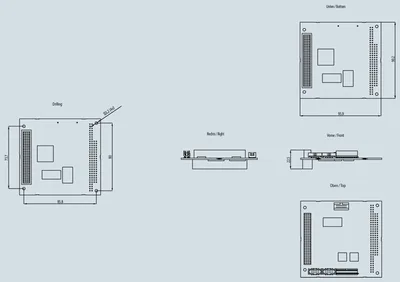

design, dimensions and weights
module formatPC/104-Plus
width90 mm
height24 mm
depth95 mm
net weight110 g
fastening methodScrew mounting
product features, product functions, product components / general
number of plug-in cards of same design / plug-in / per PC station1
number of units / note-
performance data / PROFINET communication / as PN IO controller
software / for PROFINET IO communication / requiredYok
number of PN IO devices / on PROFINET IO controller / operable / total128
number of PN IO IRT devices / on PROFINET IO controller / operable64
as user data for input variables / as PROFINET IO controller / maximum8192 bayt
as user data for output variables / as PROFINET IO controller / maximum8192 bayt
as user data for input variables per PN IO device / as PROFINET IO controller / maximum1430 bayt
as user data for output variables per PN IO device / as PROFINET IO controller / maximum1430 bayt
performance data / PROFINET communication / as PN IO device
as user data for input variables / as PROFINET IO device / maximum1430 bayt
as user data for output variables / as PROFINET IO device / maximum1430 bayt
as user data for input variables / for each sub-module as PROFINET IO device254 bayt
as user data for output variables / for each sub-module as PROFINET IO device254 bayt
as user data for the consistency area for each sub-module254 bayt
number of submodules / per PROFINET IO-Device64
product functions / management, configuration, engineering
product function / MIB supportVar
SNMP v1Var
DCPVar
LLDPVar
configuration software / requiredIncluded in scope of supply
I&M0 - device-specific informationVar
I&M1 - higher level designation/location designationVar
I&M2 - installation dateVar
I&M3 - commentVar
I&M4 - signatureVar
I&M4 - OEM dataVar
product functions / diagnostics
web-based diagnosticsVar
port diagnosticsVar
product functions / switch
product feature / switchVar
product function / switch-managedYok
product function / with IRT / PROFINET IO switchVar
product functions / redundancy
software / for redundancy function / requiredYok
ring redundancyVar
redundancy managerVar
protocol / is supported / Media Redundancy Protocol (MRP)Var
standards, specifications, approvals
product function / is supported / identification linkVar; acc. to IEC 61406-1:2022
standards, specifications, approvals / Environmental Product Declaration
Environmental Product DeclarationVar
total145,53 kg
during manufacturing33,2 kg
during operation112,27 kg
after end of life0,06 kg
accessories
accessoriesoptional: Connection board for CP 1604, power supply board for CP 1604, HARDNET-IE DK (development kit)
Aksesuarlar 20
Siemens 6GK1160-4AA01 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6GK1160-4AC00 | Aksesuar | |
| 6XV1870-3QE30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QE50 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QH60 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN10 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN15 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN25 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN30 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN35 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN40 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-3QN45 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4BH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4GH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4RH20 | Aksesuar · Cables · network cable electrical | |
| 6XV1870-4UH20 | Aksesuar · Cables · network cable electrical |
