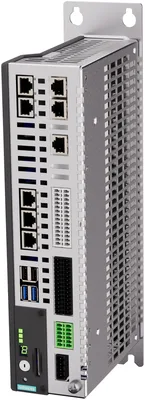

Siemens 6FC5370-7AA50-0AA0
SINUMERIK 828 see package marketing control CNC hardware PU 272.5 modular maximum 4-axis interpolation
product brand nameSINUMERIK
product designationCNC control
product type designation828
product short termPU 272,5
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
Ürün Hakkında
SINUMERIK 828 see package marketing control CNC hardware PU 272.5 modular maximum 4-axis interpolation
Siemens 6FC5370-7AA50-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
general information
product brand nameSINUMERIK
product designationCNC control
product type designation828
product short termPU 272,5
performance data
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
consumed current / rated value6 A
consumed current / maximum8 A
consumed active power / maximum41 W
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
buffering time / in the event of power failure3 ms; 20 ms mit SITOP smart power supply
degree of protection, protection class
protection class IP / on the frontIP20
protection class IP / rear sideIP20
standards, approvals, certificates
reference code / according to IEC 81346-2K
ambient conditions
environmental category / according to IEC 60721-3-3Class 3K3 Condensation ve icing excluded. Low air temperature 0 °C (32 °F).
Substance Prohibitance (day/month/year)10/15/2019
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7
ambient temperature
on the front / during operation0... 45 °C, 32... 113 °F
rear side / during operation0... 55 °C, 32... 131 °F
during transport-40... +70 °C, -40... +158 °F
during storage-25... +55 °C, -13... +131 °F
relative humidity
at 25 °C / during operation5... 90 %
at 25 °C / during transport5... 95 %
at 25 °C / during storage5... 95 %
type of design, assembly
mounting position / of operating panelYok operator panel
design, dimensions, weights
width220 mm, 8,66 in
height345 mm, 13,58 in
depth74 mm, 2,91 in
net weight2,3 kg, 5,07 lb
Approvals / Certificates
global warming potential [CO2 eq] / during manufacturing103 kg
global warming potential [CO2 eq] / during sales1,78 kg
global warming potential [CO2 eq] / during operation1040 kg
global warming potential [CO2 eq] / after end of life-10.7 kg
global warming potential [CO2 eq] / total1134,08 kg
