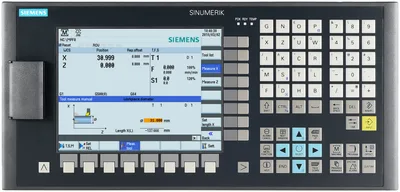

Siemens 6FC5370-2AT03-0AA0
SINUMERIK 808D, extended T PPU 161,3 yatay ile akım yazılım sürüm English layout maximum 4-axis interpolation
product brand nameSINUMERIK
product designationCNC control
product type designation808D
product short termPPU 161,3
consumed active power / maximum50 W
performance class for CNC controllersADVANCED T
Ürün Hakkında
SINUMERIK 808D, extended T PPU 161,3 yatay ile akım yazılım sürüm English layout maximum 4-axis interpolation
Siemens 6FC5370-2AT03-0AA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
general information
product brand nameSINUMERIK
product designationCNC control
product type designation808D
product short termPPU 161,3
performance data
consumed active power / maximum50 W
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
performance class for CNC controllersADVANCED T
buffering time / in the event of power failure3 ms; 20 ms mit SITOP smart power supply
display
design of the displayLCD color
screen diagonal8,4 in
horizontal image resolution / of the display800 pixel
vertical image resolution / of the display600 pixel
degree of protection, protection class
protection class IP / on the frontIP65; With the front flap closed
protection class IP / rear sideIP20 / UL open type
standards, approvals, certificates
reference code / according to IEC 81346-2K
ambient conditions
environmental category / according to IEC 60721-3-3Condensation ve icing excluded. Low air temperature 0 °C (32 °F).
Substance Prohibitance (day/month/year)08/04/2015
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7
ambient temperature
on the front / during operation0... 45 °C, 32... 113 °F
rear side / during operation0... 50 °C, 32... 122 °F
during transport-20... +60 °C, -4... +140 °F
during storage-20... +60 °C, -4... +140 °F
relative humidity
at 25 °C / during operation5... 90 %
at 25 °C / during transport5... 95 %
at 25 °C / during storage5... 95 %
type of design, assembly
mounting position / of operating panelVertical
positive cutout tolerance / of the mounting surface1 mm
cutout height / of the mounting surface186 mm, 7,32 in
cutout width / of the mounting surface406 mm, 15,98 in
design, dimensions, weights
width420 mm, 16,54 in
height200 mm, 7,87 in
depth104 mm, 4,09 in
net weight3 kg, 6,61 lb
