Siemens 6FC5317-4AA00-1DA0

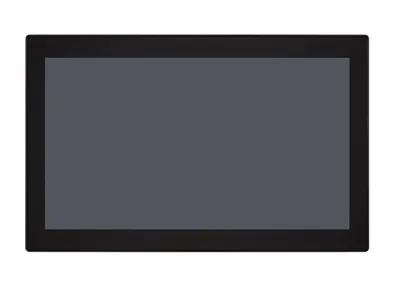

SINUMERIK ONE PPU 1740-1900 with PLC-1500F ***maximum 4-axis interpolation in the export version***
product brand nameSINUMERIK
product designationCNC control
product type designationONE
product short termPPU 1740-1900
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
Ürün Hakkında
SINUMERIK ONE PPU 1740-1900 with PLC-1500F ***maximum 4-axis interpolation in the export version***
Siemens 6FC5317-4AA00-1DA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
general information
product brand nameSINUMERIK
product designationCNC control
product type designationONE
product short termPPU 1740-1900
performance data
type of voltage / of the supply voltageDC
supply voltage / at DC / rated value24 V
consumed current / rated value6 A
consumed current / maximum8 A
consumed active power / maximum98 W
relative positive tolerance / at DC / at 24 V20 %
relative negative tolerance / at DC / at 24 V15 %
buffering time / in the event of power failure3 ms; 20 ms mit SITOP smart power supply
display
design of the displayLCD color
screen diagonal18,5 in
horizontal image resolution / of the display1.920 pixel
vertical image resolution / of the display1.080 pixel
memory
type of work memory 1DRAM
storage capacity4 Gbyte
type of work memory 2NVM
storage capacity1 MB
degree of protection, protection class
protection class IP / on the frontIP65
protection class IP / rear sideIP20 / UL open type
ambient conditions
environmental category / according to IEC 60721-3-3Condensation ve icing excluded. Low air temperature 0 °C (32 °F).
Substance Prohibitance (day/month/year)10/15/2019
SVHC substance nameLead CAS-Yok. 7439-92-1 Lead monoxide (lead oxide) CAS-Yok. 1317-36-8 4,4'-isopropylidenediphenol (Bisphenol A, BPA) CAS-Yok. 80-05-7 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol CAS-Yok. 119-47-1
ambient temperature
on the front / during operation0... 40 °C, 32... 104 °F
rear side / during operation0... 45 °C, 32... 113 °F
during transport-20... +70 °C, -4... +158 °F
during storage-25... +55 °C, -13... +131 °F
relative humidity
at 25 °C / during operation5... 95 %
at 25 °C / during transport5... 95 %
at 25 °C / during storage5... 95 %
type of design, assembly
mounting position / of operating panelPerpendicular
cutout height / of the mounting surface278 mm, 10,94 in
cutout width / of the mounting surface448 mm, 17,63 in
design, dimensions, weights
width464 mm, 18,26 in
height294 mm, 11,57 in
depth138 mm, 5,43 in
net weight7,3 kg, 16,09 lb
