Siemens 6ET2901-1AA00-1BA0

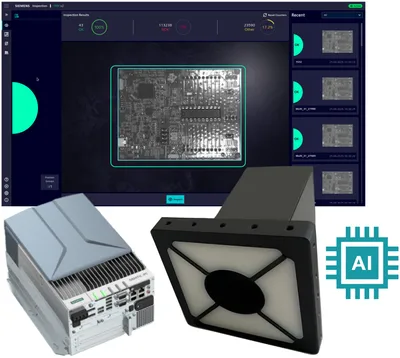

Inspekto Core Bundle AI-based visual quality inspection için presence ve anomaly detection - limited to 6 profiles - high performance (GPU-accelerated) - TIS camera included - Lumimax SmartLight included
— inspection cycle100 ms
— object speed, max.2,25 m/s
— installation clearance, min.2 cm
— installation clearance, max.100 cm
— optical magnification17
— image detectionautonomous
Ürün Hakkında
Inspekto Core Bundle AI-based visual quality inspection için presence ve anomaly detection - limited to 6 profiles - high performance (GPU-accelerated) - TIS camera included - Lumimax SmartLight included
Siemens 6ET2901-1AA00-1BA0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Visual inspection
— inspection cycle100 ms
— object speed, max.2,25 m/s
— installation clearance, min.2 cm
— installation clearance, max.100 cm
— smallest fault size0,33 mm 10 cm distance without optical zoom
— optical magnification17
— optical settingsautonomous embedded anti-reflection adaptive lighting
— image detectionautonomous
— positioningautonomous
— trigger typeauto / manual / PLC / trigger-in
— color range of sensorgrayscale
— number of inspection profiles6
Camera
— vision standardGigE Vision
— dynamic range12 bit
— frame rate36 1/s
— Image resolution2.048 x 1.536
— focal length, min.6.800 µm; Wide
— focal length, max.136.000 µm; tele
— object width, min.1 cm; Wide
— object width, max.90 cm; tele
— irisF1.5 (wide) to F3.4 (tele)
— sensor format1/1,8"
— pixel format3.450 nm
— sensor typeSony IMX26LLR-C
— shutter typeglobal
— pixel size3,45 µm
— IR cut filterVar (removable)
— shutter20 ms up to 30 s
— gain0 dB to 48 dB
illumination
— light colorwhite 5.700 K (CRI80)
— LED technologySMD LEDs
— width of light-emitting surface100 mm
— length of light-emitting surface100 mm
— illuminance40.000 lx; 0,1 m
— electrical power at the light field, max.16,8 W; normal mode
— Operating modecontinuous ve switching operation; 4 separately controllable segments
— ON-delay10,5 µs
— illumination controllerdahili illumination controller
— continuous operationwith no firmware activated, light operates in continuous mode only, red status LED lights up (with firmware activated red status LED turns off)
— PLC switching inputlow level ≤ 8 V DC; high level = 12 to 30 V DC; internally limited to 6 mA Switch-on delay 2,5 μs to MCU
— Boost modebrings 33,4 W to light field for illumination increase, maks. switch-on time 500 ms with duty factor 50 %
— risk groupExempt Group (DIN EN 62471)
Installation type/mounting
Mounting accessoriesincluding
Besleme gerilimi
Design of the power supplyDC
İzin verilen aralık, alt sınır (DC)24 V
İzin verilen aralık, üst sınır (DC)24 V
Arayüzler
Ethernet interfaceVar
Protokoller
PROFINETVar
EtherNet/IPVar
Protokoller (Ethernet)
TCP/IPVar
Koruma derecesi ve sınıfı
IP koruma sınıfıIP20 control cabinet installation / open type
Ambient conditions
Suited for indoor useVar
Suited for outdoor useYok
Çalışma ortam sıcaklığı
min.10 °C
maks.38 °C
min. [°F]50 °F
max. [°F]100 °F
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Bağıl nem
Çalışma, min.20 %
Çalışma, maks.80 %
Operating systems
pre-installed operating systemLINUX
Connection method
Type of connectionplugged, screwed
Ölçüler
width of controller79 mm; 85 mm base module
height of controller194 mm
depth of controller237 mm; 237 mm base module without fan module ve with / without extension module 1 slot, 307 mm base module with fan module ve with / without extension module 1/2 slots, 400 mm with extension module 4 slots
camera width71 mm
camera height71 mm
camera depth147 mm
lighting width130 mm
lighting height130 mm
lighting depth20,5 mm
Ağırlık
weight of controller6 kg
