Siemens 6ES7923-1BD00-0HD0

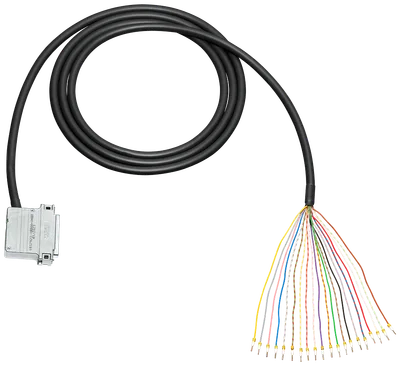

connection cable shielded f. SIMATIC ET200 SP HA from 37-pole D-sub to bare ends with wire end sleeve labeled 20 channels L = 3 m, 0.56 mm2
target systemSIMATIC ET 200SP HA
suitability for useI/O modules
input card PLCYok
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
Ürün Hakkında
connection cable shielded f. SIMATIC ET200 SP HA from 37-pole D-sub to bare ends with wire end sleeve labeled 20 channels L = 3 m, 0.56 mm2
Siemens 6ES7923-1BD00-0HD0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemSIMATIC ET 200SP HA
suitability for useI/O modules
input card PLCYok
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
product brand nameSIMATIC Top connect
product type designationModular connection
product designationPre-assembled round cable
electrical data
rated value24 V
maximum60 V
connection method
design of cableRound cable
number of channels10
wire length3 m
conductor cross section / rated value0,56 mm²
Product component / with shieldVar
design of the shieldbraided shield
number of poles20
at the 1st interface37; control page
at the 2nd interface20; numbered
marking / of coreslabel clip
connector typeD-Sub connector
type of electrical connection / on enclosureFemale header
type of electrical connection / in the fieldEnd sleeve
standards, specifications, approvals
cULus approvalYok
ambient conditions
during operation-30; without vibrations ve oscillations -40 °C... +70 °C
during storage-30... +70
mechanical data
outer diameter / of cable sheath10 mm
material / of the connection cable sheathPVC
color / of cable sheathBlack
net weight0,5 kg
additional information
other informationtechnical specifications apply to rated input voltage values ve +25 °C ambient temperature (if not otherwise specified)
marketing textThe 20-pole round cable, 0,56 mm2 (shielded) with a length of 3 m represents the link between the control ve the field. This preassembled cable enables an interference-free ve reliable signal flow. In this way, even complex installations remain manageable ve can be checked in the shortest possible time, which is particularly valuable when it comes to maintenance ve expansion. This preassembled connecting cable is part of the modular connection of SIMATIC TOP connect for the fastest ve safest system cabling. In addition to low wiring workload, sources of error during cabling can be significantly reduced.
