Detayları Gör
Siemens
1EE1122-..A00-...4
MFR #1EE1122-..A00-...4
SKU #YLS3FGFZLYE3EV8
Fotoğraf, ürünün gerçek halini yansıtmayabilir. Tüm detaylar için ürünün adına ve özelliklerine bakınız.

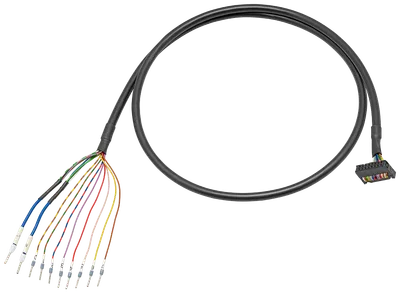

Siemens 6ES7923-0BC00-0FB0
Connecting cable unshielded IDC connector on one side for connection modules 8 I/O and open ends with end sleeve for connection of the control system Labeled, L = 2.0 m, 0.14 mm2
target systemControl
suitability for useDigital I/O modules
input card PLCVar
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
Ürün Hakkında
Connecting cable unshielded IDC connector on one side for connection modules 8 I/O and open ends with end sleeve for connection of the control system Labeled, L = 2.0 m, 0.14 mm2
Siemens 6ES7923-0BC00-0FB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
target systemControl
suitability for useDigital I/O modules
input card PLCVar
PLC output cardVar
digital signal transmissionVar
analog signal transmissionYok
product brand nameSIMATIC Top connect
product type designationFully modular connection
product designationPre-assembled round cable
electrical data
rated value24 V
maximum60 V
connection method
design of cableRound cable
number of channels8
wire length2 m
conductor cross section / rated value0,14 mm²
Product component / with shieldYok
number of poles16
at the 1st interface10; control page
at the 2nd interface16; on the connection module
connector typeIDC connector
type of electrical connection / on enclosureend sleeve
type of electrical connection / in the fieldConnector strip
standards, specifications, approvals
cULus approvalYok
ambient conditions
during operation0... 60 °C
during storage-30... +70
mechanical data
outer diameter / of cable sheath6,5 mm
material / of the connection cable sheathPVC
color / of cable sheathBlack
net weight0,154 kg
additional information
other informationtechnical specifications apply to rated input voltage values ve +25 °C ambient temperature (if not otherwise specified)
marketing textThe 16-pin round cable (unshielded) with a length of 2.0m represents the link between the control ve connection module. This pre-assembled cable enables a trouble-free ve safe signal flow. Even complex installations remain manageable ve can be checked in the shortest possible time, which makes maintenance ve expansion affordable. This pre-assembled connecting cable is part of the fully modular SIMATIC TOP connect connection for the fastest ve safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced. Sensors ve actuators from the peripherals are combined with the connection modules of SIMATIC TOP connect ve connected to the control via cable
