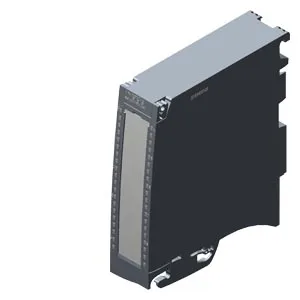

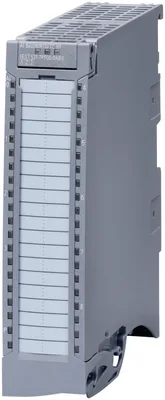

Siemens 6ES7531-7PF00-0AB0
SIMATIC S7-1500/ET 200MP, analog input module, AI 8 x U/R/RTD/TC HF (35 mm); 16-bit resolution (up to 21-bit resolution for RTD and TC); accuracy 0.1%; 8 channels in groups of 1; common mode voltage 30 V AC/60 V DC; diagnostics; hardware interrupts; scalable temperature measuring range; thermocouple type C; calibrate in RUN; incl. U-connector and complete infeed and shielding set (without front connector)
Ürün tipi tanımıAI 8xU/R/RTD/TC HF
HW functional statusfrom FS01
Firmware sürümüV1.1.0
FW update possibleVar
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Ürün Hakkında
SIMATIC S7-1500/ET 200MP, analog input module, AI 8 x U/R/RTD/TC HF (35 mm); 16-bit resolution (up to 21-bit resolution for RTD and TC); accuracy 0.1%; 8 channels in groups of 1; common mode voltage 30 V AC/60 V DC; diagnostics; hardware interrupts; scalable temperature measuring range; thermocouple type C; calibrate in RUN; incl. U-connector and complete infeed and shielding set (without front connector)
Siemens 6ES7531-7PF00-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıAI 8xU/R/RTD/TC HF
HW functional statusfrom FS01
Firmware sürümüV1.1.0
FW update possibleVar
Product function
I&M dataVar; I&M0 to I&M3
Isochronous modeYok
Prioritized startupVar
Measuring range scalableVar
Scalable measured valuesYok
Adjustment of measuring rangeYok
Mühendislik aracı
STEP 7 TIA Portal configurable/integrated from versionV14 / -
STEP 7 configurable/integrated from versionV5.5 SP3 / -
PROFIBUS from GSD version/GSD revisionV1.0 / V5.1
PROFINET from GSD version/GSD revisionV2.3 / -
Operating mode
OversamplingYok
MSIVar
CiR - Configuration in RUN
Reparameterization possible in RUNVar
Calibration possible in RUNVar
Besleme gerilimi
Nominal değer (DC)24 V
İzin verilen aralık, alt sınır (DC)19,2 V
İzin verilen aralık, üst sınır (DC)28,8 V
Ters polarite korumasıVar
Giriş akımı
Akım tüketimi, maks.55 mA; with 19,2 V supply
Power
Power consumption from the backplane bus0,85 W
Güç kaybı
Güç kaybı, tipik1,9 W
Address space per module
Inputs18 bayt; typical, maximum 80 bytes, see manual for details
Outputs0 bayt
Analog girişler
Analog giriş sayısı8; Plus one additional RTD (reference) channel
For voltage measurement8; Plus one additional RTD (reference) channel
For resistance/resistance thermometer measurement8; Plus one additional RTD (reference) channel
For thermocouple measurement8; Plus one additional RTD (reference) channel
permissible input voltage for voltage input (destruction limit), max.20 V
Constant measurement current for resistance-type transmitter, typ.150 Ohm, 300 Ohm, 600 Ohm, Cu10, Cu50, Cu100, Ni10, Ni100, Ni120, Ni200, Pt10, Pt50, Pt100, Pt200 climate: 1 mA; 6 kOhm, Ni500, Ni1000, LG-Ni1000, Pt200 standard, Pt500, Pt1000, PTC: 0,25 mA
Technical unit for temperature measurement adjustableVar; °C/°F/K
Analog input with oversamplingYok
Standardization of measured valuesVar; See manual for details
Giriş aralıkları (nominal değerler), gerilim
0 to +5 VYok
0 … +10 VYok
1 V to 5 VYok
-1 V to +1 VVar
— Input resistance (-1 V to +1 V)10 MΩ
-10 V to +10 VYok
-2.5 V to +2.5 VYok
-25 mV to +25 mVVar
— Input resistance (-25 mV to +25 mV)10 MΩ
-250 mV to +250 mVVar
— Input resistance (-250 mV to +250 mV)10 MΩ
-5 V to +5 VYok
-50 mV to +50 mVVar
— Input resistance (-50 mV to +50 mV)10 MΩ
-500 mV to +500 mVVar
— Input resistance (-500 mV to +500 mV)10 MΩ
-80 mV to +80 mVVar
— Input resistance (-80 mV to +80 mV)10 MΩ
Input ranges (rated values), currents
0 … 20 mAYok
-20 mA to +20 mAYok
4 mA to 20 mAYok
Input ranges (rated values), thermocouples
type BVar
— Input resistance (Type B)10 MΩ
type CVar
— Input resistance (Type C)10 MΩ
Type EVar
— Input resistance (Type E)10 MΩ
Type JVar
— Input resistance (type J)10 MΩ
Type KVar
— Input resistance (Type K)10 MΩ
Type LYok
Type NVar
— Input resistance (Type N)10 MΩ
Type RVar
— Input resistance (Type R)10 MΩ
Type SVar
— Input resistance (Type S)10 MΩ
Type TVar
— Input resistance (Type T)10 MΩ
Type TXK/TXK(L) to GOSTVar
— Input resistance (Type TXK/TXK(L) to GOST)10 MΩ
Input ranges (rated values), resistance thermometer
Cu 10Var; Standard/climate
— Input resistance (Cu 10)10 MΩ
Cu 10 according to GOSTVar; Standard/climate
— Input resistance (Cu 10 according to GOST)10 MΩ
Cu 50Var; Standard/climate
— Input resistance (Cu 50)10 MΩ
Cu 50 according to GOSTVar; Standard/climate
— Input resistance (Cu 50 according to GOST)10 MΩ
Cu 100Var; Standard/climate
— Input resistance (Cu 100)10 MΩ
Cu 100 according to GOSTVar; Standard/climate
— Input resistance (Cu 100 according to GOST)10 MΩ
Ni 10Var; Standard/climate
— Input resistance (Ni 10)10 MΩ
Ni 10 according to GOSTVar; Standard/climate
— Input resistance (Ni 10 according to GOST)10 MΩ
Ni 100Var; Standard/climate
— Input resistance (Ni 100)10 MΩ
Ni 100 according to GOSTVar; Standard/climate
— Input resistance (Ni 100 according to GOST)10 MΩ
Ni 1000Var; Standard/climate
— Input resistance (Ni 1000)10 MΩ
Ni 1000 according to GOSTVar; Standard/climate
— Input resistance (Ni 1000 according to GOST)10 MΩ
LG-Ni 1000Var; Standard/climate
— Input resistance (LG-Ni 1000)10 MΩ
Ni 120Var; Standard/climate
— Input resistance (Ni 120)10 MΩ
Ni 120 according to GOSTVar; Standard/climate
— Input resistance (Ni 120 according to GOST)10 MΩ
Ni 200Var; Standard/climate
— Input resistance (Ni 200)10 MΩ
Ni 200 according to GOSTVar; Standard/climate
— Input resistance (Ni 200 according to GOST)10 MΩ
Ni 500Var; Standard/climate
— Input resistance (Ni 500)10 MΩ
Ni 500 according to GOSTVar; Standard/climate
— Input resistance (Ni 500 according to GOST)10 MΩ
Pt 10Var; Standard/climate
— Input resistance (Pt 10)10 MΩ
Pt 10 according to GOSTVar; Standard/climate
— Input resistance (Pt 10 according to GOST)10 MΩ
Pt 50Var; Standard/climate
— Input resistance (Pt 50)10 MΩ
Pt 50 according to GOSTVar; Standard/climate
— Input resistance (Pt 50 according to GOST)10 MΩ
Pt 100Var; Standard/climate
— Input resistance (Pt 100)10 MΩ
Pt 100 according to GOSTVar; Standard/climate
— Input resistance (Pt 100 according to GOST)10 MΩ
Pt 1000Var; Standard/climate
— Input resistance (Pt 1000)10 MΩ
Pt 1000 according to GOSTVar; Standard/climate
— Input resistance (Pt 1000 according to GOST)10 MΩ
Pt 200Var; Standard/climate
— Input resistance (Pt 200)10 MΩ
Pt 200 according to GOSTVar; Standard/climate
— Input resistance (Pt 200 according to GOST)10 MΩ
Pt 500Var; Standard/climate
— Input resistance (Pt 500)10 MΩ
Pt 500 according to GOSTVar; Standard/climate
— Input resistance (Pt 500 according to GOST)10 MΩ
Input ranges (rated values), resistors
0 to 150 ohmsVar
— Input resistance (0 to 150 ohms)10 MΩ
0 to 300 ohmsVar
— Input resistance (0 to 300 ohms)10 MΩ
0 to 600 ohmsVar
— Input resistance (0 to 600 ohms)10 MΩ
0 to 3000 ohmsYok
0 to 6000 ohmsVar
— Input resistance (0 to 6000 ohms)10 MΩ
PTCVar
— Input resistance (PTC)10 MΩ
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationVar
— external temperature compensation via RTDVar
— Compensation for 0 °C reference point temperatureVar; fixed value can be set
— Reference channel of the moduleVar; 9th channel that can be used as a genuine 9th RTD channel regardless of the parameterization of the other channels, veya that can be used for compensation in the case of TC measurement
Kablo uzunluğu
Ekranlı, maks.800 m; U; 200 m R/RTD/TC
Analog value generation for the inputs
Measurement principleintegrating
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.21 bit; For measuring mode RTC ve TC when using the function "Scalable temperature measuring range" (32 bit REAL format); 16 bit for measuring mode R ve U; 16 bit for all measuring modes when using the S7 format (16 bit INTEGER)
Entegrasyon süresi, parametrelenebilirVar
Integration time (ms)Fast mode: 2,5 / 16,67 / 20 / 100 ms, standard mode: 7,5 / 50 / 60 / 300 ms
Basic conversion time, including integration time (ms)Fast mode: 4 / 18 / 22 / 102 ms; Standard mode: 9 / 52 / 62 / 302 ms
— additional conversion time for wire-break monitoringThermocouples, 150 Ohm, 300 Ohm, 600 Ohm, Cu10, Cu50, Cu100, Ni10, Ni100, Ni120, Ni200, Pt10, Pt50, Pt100: 4 ms; 6 kOhm, Ni500, Ni1000, LG-Ni1000, Pt200, Pt500, Pt1000: 13 ms
Interference voltage suppression for interference frequency f1 in Hz400 / 60 / 50 / 10 Hz
Basic execution time of the module (all channels released)Corresponds to the channel with the highest basic conversion time
Smoothing of measured values
Number of smoothing levels4
ParameterizableVar
Step: NoneVar
Step: lowVar
Step: MediumVar
Step: HighVar
Connection of signal encoders
for voltage measurementVar
for current measurement as 2-wire transducerYok
for current measurement as 4-wire transducerYok
for resistance measurement with two-wire connectionVar
for resistance measurement with three-wire connectionVar; All measuring ranges except PTC; internal compensation of the cable resistances
for resistance measurement with four-wire connectionVar; All measuring ranges except PTC
Errors/accuracies
Linearity error (relative to input range), (+/-)0,02 %
Temperature error (relative to input range), (+/-)0,005 %/K
Crosstalk between the inputs, max.-80 dB
Repeat accuracy in steady state at 25 °C (relative to input range), (+/-)0,02 %
Temperature error of internal compensation±1,5 °C
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,1 %
Resistance, relative to input range, (+/-)0,1 %
Resistance thermometer, relative to input range, (+/-)Cuxxx Standard: ±0,5 K, Cuxxx Klima: ±0,5 K, Ptxxx Standard: ±1 K, Ptxxx Klima: ±0,5 K, Nixxx Standard: ±0,5 K, Nixxx Klima: ±0,3 K
Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±2 K, Type E: > -200 °C ±1 K, Type J: > -210 °C ±1 K, Type K: > -200 °C ±2 K, Type N: > -200 °C ±2 K, Type R: > 0 °C ±2 K, Type S: > 0 °C ±2 K, Type T: > -200 °C ±1 K, Type C: ±4 K, Type TXK/TXK(L): ±1 K
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,05 %
Resistance, relative to input range, (+/-)0,05 %
Resistance thermometer, relative to input range, (+/-)Cuxxx Standard: ±0,3 K, Cuxxx Klima: ±0,2 K, Ptxxx Standard: ±0,5 K, Ptxxx Klima: ±0,2 K, Nixxx Standard: ±0,3 K, Nixxx Klima: ±0,15 K
Thermocouple, relative to input range, (+/-)Type B: > 600 °C ±1 K, Type E: > -200 °C ±0,5 K, Type J: > -210 °C ±0,5 K, Type K: > -200 °C ±1 K, Type N: > -200 °C ±1 K, Type R: > 0 °C ±1 K, Type S: > 0 °C ±1 K, Type T: > -200 °C ±0,5 K, Type C: ±2 K, Type TXK/TXK(L): ±0,5 K
Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency
Series mode interference (peak value of interference < rated value of input range), min.80 dB; in the Standard operating mode, 40 dB in the Fast operating mode
Common mode voltage, max.60 V DC/30 V AC
Common mode interference, min.80 dB
Interrupts/diagnostics/status information
Diagnostics functionVar
Alarms
Diagnostic alarmVar
Limit value alarmVar; two upper ve two lower limit values in her biri case
Diagnoses
Monitoring the supply voltageVar
Wire breakVar; Only with TC, R, RTD
short-circuitYok
Group errorYok
Overflow/UnderflowVar
Tanılama gösterge LED’i
RUN LEDVar; green LED
ERROR LED’iVar; red LED
MAINT LED’iYok
Monitoring of the supply voltage (PWR-LED)Var; green LED
Channel status displayVar; green LED
for channel diagnosticsVar; red LED
for module diagnosticsVar; red LED
Potential separation channels
Kanallar arasıVar
Kanallar arası, grup başına1
between the channels and backplane busVar
between the channels and the power supply of the electronicsVar
Permissible potential difference
between different circuits60 V DC/30 V AC; insulation rated for 120 V AC basic insulation: between the channels ve the supply voltage L+; between the channels ve the backplane bus; between the channels
Isolation
Isolation tested with2.000 V DC between the channels ve the supply voltage L+; 2.000 V DC between the channels ve the backplane bus; 2.000 V DC between the channels; 707 V DC (type test) between the supply voltage L+ ve the backplane bus
Standartlar, onaylar, sertifikalar
Siemens Eco Profile (SEP)Siemens EcoTech
Suitable for applications according to AMS 2750Var; Declaration of Conformity, see online support entry 109757262
Suitable for applications according to CQI-9Var; Based on AMS 2750 E
Ekolojik ayak izi
Çevresel ürün beyanıVar
Küresel ısınma potansiyeli
— Küresel ısınma potansiyeli (toplam) [CO₂ eşd.]38,6 kg
— Küresel ısınma potansiyeli (üretim sırasında) [CO₂ eşd.]14,4 kg
— Küresel ısınma potansiyeli (çalışma sırasında) [CO₂ eşd.]24,6 kg
— Küresel ısınma potansiyeli (ömür sonrası) [CO₂ eşd.]-0.44 kg
Security
signed firmware updateYok
safely removing dataYok
data integrityYok
Çalışma ortam sıcaklığı
Yatay montaj, min.-30 °C; From FS02
Yatay montaj, maks.60 °C
Dikey montaj, min.-30 °C; From FS02
Dikey montaj, maks.40 °C
Deniz seviyesine göre çalışma yüksekliği
Installation altitude above sea level, max.2.000 m
Absolute humidity
dew point, min.-60 °C; suitable for dry room applications
Ölçüler
Genişlik35 mm
Yükseklik147 mm
Derinlik129 mm
Ağırlık
Ağırlık, yaklaşık290 g
Other
Note:please order front connectors (screw-in/push-in) separately
Aksesuarlar 16
Siemens 6ES7531-7PF00-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 6ES7592-1AM00-0XB0 | Aksesuar · Connection plug | |
| 6ES7590-1AB60-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AC40-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AF30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1AJ30-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-1BC00-0AA0 | Aksesuar · Mounting rail | |
| 6ES7590-0BD00-0AA0 | Aksesuar · Rack | |
| 6ES7590-0BH00-0AA0 | Aksesuar · Rack | |
| 6ES7590-0BL00-0AA0 | Aksesuar · Rack | |
| 6ES7590-0AA00-0AA0 | Yedek parça · spare part | |
| 6ES7590-5CA00-0AA0 | Yedek parça · spare part | |
| 6ES7590-5BA00-0AA0 | Yedek parça · Accessories | |
| 6ES7528-0AA00-7AA0 | Yedek parça · spare part | |
| 6ES7592-2AX00-0AA0 | Yedek parça · label | |
| 6ES7592-1BM00-0XB0 | Zorunlu ek ürün · Connection plug | |
| 6ES7590-1AE80-0AA0 | Zorunlu ek ürün · Mounting rail |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
Brush Research Mfg
BC8M12
MFR #BC8M12
SKU #YLSA0P5BE6ZJCIW
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
AC20A-01G-V-1-B FR/L COMBO MODULAR
MFR #AC20A-01G-V-1-B FR/L COMBO MODULAR
SKU #YLSSMWXCWLO2KA6
İlgili Aramalar
Siemens 6ES7531-7PF00-0AB0 fiyatSiemens 6ES7531-7PF00-0AB0 teklif alSiemens 6ES7531-7PF00-0AB0 satın al6ES7531-7PF00-0AB0 fiyat6ES7531-7PF00-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7531-7PF00-0AB0 muadilSiemens 6ES7531-7PF00-0AB0 teknik özellikler
