Siemens 6ES7431-1KF10-0AB0
SIMATIC S7-400, analog giriş SM 431, izoleli 8 AI, resolution 14 bit, U/I/Resistor/Thermocouple/Pt100
Ters polarite korumasıVar
from backplane bus 5 V DC, max.600 mA
Güç kaybı, tipik3,5 W
Analog giriş sayısı8
For voltage/current measurement8
For resistance measurement4
Ürün Hakkında
SIMATIC S7-400, analog giriş SM 431, izoleli 8 AI, resolution 14 bit, U/I/Resistor/Thermocouple/Pt100
Siemens 6ES7431-1KF10-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Yük gerilimi L+
Nominal değer (DC)24 V; Only required for supplying 2-wire transmitters
Ters polarite korumasıVar
Giriş akımı
from load voltage L+ (without load), max.200 mA; for 8 connected, fully controlled 2-wire transmitters
from backplane bus 5 V DC, max.600 mA
Güç kaybı
Güç kaybı, tipik3,5 W
Analog girişler
Analog giriş sayısı8
For voltage/current measurement8
For resistance measurement4
permissible input voltage for voltage input (destruction limit), max.18 V; 18 V continuous, 75 V for 1 ms (mark to space ratio 1:20)
permissible input current for current input (destruction limit), max.40 mA; Permanent
Constant measurement current for resistance-type transmitter, typ.1,67 mA
Giriş aralıkları
GerilimVar
CurrentVar
ThermocoupleVar
Resistance thermometerVar
ResistanceVar
Giriş aralıkları (nominal değerler), gerilim
1 V to 5 VVar
— Input resistance (1 V to 5 V)1 MΩ
-1 V to +1 VVar
— Input resistance (-1 V to +1 V)1 MΩ
-10 V to +10 VVar
— Input resistance (-10 V to +10 V)1 MΩ
-2.5 V to +2.5 VVar
— Input resistance (-2.5 V to +2.5 V)1 MΩ
-250 mV to +250 mVVar
— Input resistance (-250 mV to +250 mV)1 MΩ
-5 V to +5 VVar
— Input resistance (-5 V to +5 V)1 MΩ
-500 mV to +500 mVVar
— Input resistance (-500 mV to +500 mV)1 MΩ
-80 mV to +80 mVVar
— Input resistance (-80 mV to +80 mV)1 MΩ
Input ranges (rated values), currents
0 … 20 mAVar
— Input resistance (0 to 20 mA)50 Ω
4 mA to 20 mAVar
— Input resistance (4 mA to 20 mA)50 Ω
Input ranges (rated values), thermocouples
Type BVar
— Input resistance (Type B)1 MΩ
Type EVar
— Input resistance (Type E)1 MΩ
Type JVar
— Input resistance (type J)1 MΩ
Type KVar
— Input resistance (Type K)1 MΩ
Type LVar
— Input resistance (Type L)1 MΩ
Type NVar
— Input resistance (Type N)1 MΩ
Type RVar
— Input resistance (Type R)1 MΩ
Type SVar
— Input resistance (Type S)1 MΩ
Type TVar
— Input resistance (Type T)1 MΩ
Type UVar
— Input resistance (Type U)1 MΩ
Input ranges (rated values), resistance thermometer
Ni 100Var
— Input resistance (Ni 100)1 MΩ
Ni 1000Var
— Input resistance (Ni 1000)1 MΩ
Pt 100Var
— Input resistance (Pt 100)1 MΩ
Pt 1000Var
Pt 10000Var
Pt 200Var
— Input resistance (Pt 200)1 MΩ
Pt 500Var
— Input resistance (Pt 500)1 MΩ
Input ranges (rated values), resistors
0 to 48 ohmsVar
— Input resistance (0 to 48 ohms)1 MΩ
0 to 150 ohmsVar
— Input resistance (0 to 150 ohms)1 MΩ
0 to 300 ohmsVar
— Input resistance (0 to 300 ohms)1 MΩ
0 to 600 ohmsVar
— Input resistance (0 to 600 ohms)1 MΩ
0 to 6000 ohmsVar; Usable up to 5000 Ohm
— Input resistance (0 to 6000 ohms)1 MΩ
Temperature compensation
— ParametrelenebilirVar
— internal temperature compensationYok
— external temperature compensation with Pt100Var
— external temperature compensation with compensations socketVar
— dynamic reference temperature valueVar
Characteristic linearization
ParameterizableVar
— for thermocouplesType B, E, J, K, L, N, R, S, T, U
— for resistance thermometerPt100, Pt200, Pt500, Pt1000, Ni100, Ni1000
Kablo uzunluğu
Ekranlı, maks.200 m; 50 m with thermocouples ve input ranges ≤ 80 mV
Kanal başına entegrasyon/dönüşüm süresi ve çözünürlük
Aşım dahil çözünürlük (işaret biti dahil), maks.14 bit; with activated filtering: 16 bit
Entegrasyon süresi, parametrelenebilirVar
Basic conversion time (ms)20,1 / 23,5 ms
Integration time (ms)16,7 / 20 ms
Interference voltage suppression for interference frequency f1 in Hz50 / 60 Hz
Basic execution time of the module (all channels released)161 ms; 161 / 188 ms
Connection of signal encoders
for voltage measurementVar; possible
for current measurement as 2-wire transducerVar
for current measurement as 4-wire transducerVar
for resistance measurement with two-wire connectionVar; Line resistances are also measured
for resistance measurement with three-wire connectionVar
for resistance measurement with four-wire connectionVar
Errors/accuracies
Temperature error (relative to input range), (+/-)0,004 %/K
Operational error limit in overall temperature range
Voltage, relative to input range, (+/-)0,38 %; ±0,38 % ±80 mV; ±0,35 % ±250 mV, ±500 mV, ±1 V, ±2,5 V, ±5 V, 1 to 5 V, ±10 V
Current, relative to input range, (+/-)0,35 %; ±20 mA, 0 to 20 mA, 4 to 20 mA
Resistance, relative to input range, (+/-)0,5 %
Resistance thermometer, relative to input range, (+/-)0,5 %
Thermocouple, relative to input range, (+/-)TC Type B (±14,8 K), TC Type R (±9,4 K), TC Type S (±10,6 K), TC Type T (±2,2 K), TC Type E (±4,0 K), TC Type J (±5,2 K), TC Type K (±7,6 K), TC Type U (±3,5 K), TC Type L (±5,1 K), TC Type N (±5,5 K)
Basic error limit (operational limit at 25 °C)
Voltage, relative to input range, (+/-)0,15 %; ±0,15 % (±250 mV, ±500 mV, ±1 V, ±2,5 V, ±5 V, 1 to 5 V, ±10 V); ±0,17% (±80 mV)
Current, relative to input range, (+/-)0,15 %; ±20 mA, 0 to 20 mA, 4 to 20 mA
Resistance, relative to input range, (+/-)0,15 %; ±0,15 % 0 to 48 ohms (4-conductor measurement), 0 to 150 ohms (4-conductor measurement), 0 to 300 ohms (4-conductor measurement), 0 to 600 ohms (4-conductor measurement), 0 to 5000 ohms (4-conductor measurement, in range of 6000 ohms); ±0,3 % 0 to 300 ohms (3-conductor measurement), 0 to 600 ohms (3-conductor measurement), 0 to 5000 ohms (3-conductor measurement, in range of 6000 ohms)
Resistance thermometer, relative to input range, (+/-)0,3 %
Thermocouple, relative to input range, (+/-)TC Type B (±8,2 K), TC Type R (±5,2 K), TC Type S (±5,9 K), TC Type T (±1,2 K), TC Type E (±1,8 K), TC Type J (±2,3 K), TC Type K (±3,4 K), TC Type U (±1,8 K), TC Type L (±2,3 K), TC Type N (±2,9 K)
Interrupts/diagnostics/status information
Diagnostics functionYok
Potential separation analog inputs
Potential separation analog inputsVar; internal/external
Kanallar arasıYok
between the channels and backplane busVar
Between the channels and load voltage L+Var
Isolation
Isolation tested with2.120 V DC between bus ve L+/M; 2.120 V DC between bus ve analog section; 500 V DC between bus ve local ground; 500 V DC between analog section ve L+/M; 2.120 V DC between analog section ve local ground; 2.120 V DC between L+/M ve local ground

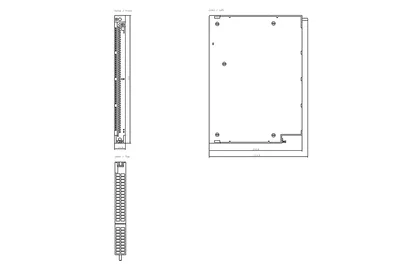

Ölçüler
Genişlik25 mm
Yükseklik290 mm
Derinlik210 mm
Ağırlık
Ağırlık, yaklaşık500 g
Aksesuarlar 1
Siemens 6ES7431-1KF10-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9MC0110-1EG00-0AA3 | Servis · Box PC |
