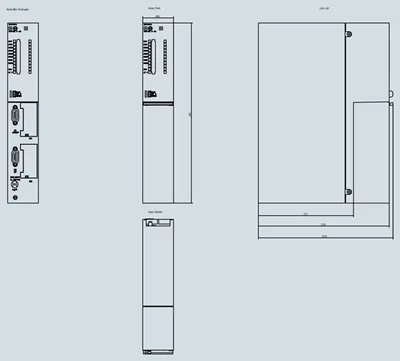

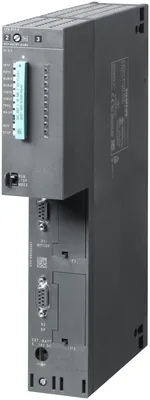

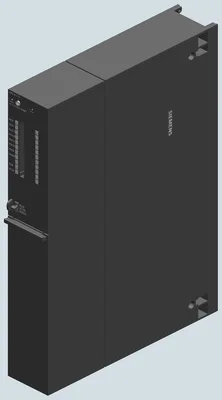

Siemens 6ES7417-4XT07-0AB0
WHEN USING THE DP MODULE MAKE SURE TO USE THE MODULE 6ES7964-2AA04-0AB0 Central processing unit with: Work memory 32 MB, (16 MB code; 16 MB data) 1st interface MPI 12 Mbit/s; 2nd interface PROFIBUS DP, 3rd/4th interface plug-in IFM module
Ürün tipi tanımıCPU 417-4
HW functional status01
Firmware sürümüV7.0
Isochronous modeVar; For PROFIBUS only
Programlama paketiSTEP 7 V5.4 veya üstü with HSP 261
CiR synchronization time, basic load60 ms
Ürün Hakkında
WHEN USING THE DP MODULE MAKE SURE TO USE THE MODULE 6ES7964-2AA04-0AB0 Central processing unit with: Work memory 32 MB, (16 MB code; 16 MB data) 1st interface MPI 12 Mbit/s; 2nd interface PROFIBUS DP, 3rd/4th interface plug-in IFM module
Siemens 6ES7417-4XT07-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 417-4
HW functional status01
Firmware sürümüV7.0
Product function
Isochronous modeVar; For PROFIBUS only
Mühendislik aracı
Programlama paketiSTEP 7 V5.4 veya üstü with HSP 261
CiR - Configuration in RUN
CiR synchronization time, basic load60 ms
CiR synchronization time, time per I/O byte7 µs
Besleme gerilimi
Nominal değer (DC)Power supply via system power supply
Giriş akımı
from backplane bus 5 V DC, typ.1,3 A
from backplane bus 5 V DC, max.1,6 A
from backplane bus 24 V DC, max.600 mA; 150 mA per DP interface
from interface 5 V DC, max.90 mA; At her biri DP interface
Güç kaybı
Güç kaybı, tipik6,5 W
Storage
Type of memoryRAM
Çalışma belleği
Dahili32 MB
integrated (for program)16 MB
integrated (for data)16 MB
expandableYok
Yükleme belleği
expandable FEPROMVar; with Memory Card (FLASH)
expandable FEPROM, max.64 MB
integrated RAM, max.1 MB
expandable RAMVar; with Memory Card (RAM)
expandable RAM, max.64 MB
Yedekleme
MevcutVar
with batteryVar; all data
PilsizYok
Backup battery
Backup current, typ.225 µA; up to 40 °C
Backup current, max.1.275 µA
Backup time, max.See reference manual, module data, Chapter 3,3
Feeding of external backup voltage to CPU5 V DC to 15 V DC
CPU işlem süreleri
Bit işlemleri için, tipik7,5 ns
Word işlemleri için, tipik7,5 ns
for fixed point arithmetic, typ.7,5 ns
Kayan nokta aritmetiği için, tipik15 ns
DB
Sayı, maks.16.000; Number range: 1 to 16000
Boyut, maks.64 kB
FB
Sayı, maks.8.000; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.8.000; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Sayı, maks.see instruction list
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs8; OB 10-17
Number of delay alarm OBs4; OB 20-23
Number of cyclic interrupt OBs9; OB 30-38 (shortest cycle that can be set = 500 µs)
Number of process alarm OBs8; OB 40-47
Number of DPV1 alarm OBs3; OB 55-57
Number of isochronous mode OBs4; OB 61-64
Number of multicomputing OBs1; OB 60
Number of background OBs1; OB 90
Number of startup OBs3; OB 100-102
Number of asynchronous error OBs9; OB 80-88
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class24
additional within an error OB2
S7 counter
Number2.048
Retentivity
— adjustableVar
— presetZ 0 to Z 7
Counting range
— lower limit0
— upper limit999
IEC counter
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
S7 timer
Number2.048
Retentivity
— adjustableVar
— presetYok times retentive
Time range
— lower limit10 ms
— upper limit9.990 s
IEC timer
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.Total working ve load memory (with backup battery)
Merker (bayrak)
Boyut, maks.16 kB; Size of bit memory address area
Retentivity availableVar
Retentivity presetMB 0 to MB 15
Number of clock memories8; in 1 memory bayt
Yerel veri
adjustable, max.64 kB
preset32 kB
I/O address area
Inputs16 kB
Outputs16 kB
Proses görüntüsü
Girişler, ayarlanabilir16 kB
Çıkışlar, ayarlanabilir16 kB
Inputs, default1.024 bayt
Outputs, default1.024 bayt
consistent data, max.244 bayt
Access to consistent data in process imageVar
Subprocess images
Number of subprocess images, max.15
Digital channels
Inputs131.072
— of which central131.072
Outputs131.072
— of which central131.072
Analog channels
Inputs8.192
— of which central8.192
Outputs8.192
— of which central8.192
Donanım yapılandırması
Number of expansion units, max.21
connectable OPs119
MulticomputingVar; 4 CPUs maks. (with UR1 veya UR2)
Interface modules
Number of connectable IMs (total), max.6
Number of connectable IM 460s, max.6
Number of connectable IM 463s, max.4; IM 463-2
Number of DP masters
Dahili2
via CP10; CP 443-5 Extended
via IM 4674
Mixed mode IM + CP permittedYok; IM 467 cannot be used jointly with CP 443-5 Ext. veya CP 443-1 in PROFINET IO mode
via interface module2
Number of pluggable S5 modules (via adapter capsule in central device), max.6
Number of IO Controllers
Dahili0
Via CP4; Maks. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode
Number of operable FMs and CPs (recommended)
FMLimited by number of slots ve number of connections
CP, PtPCP 440: Limited by number of slots; CP 441: limited by number of connections
PROFIBUS and Ethernet CPs14; Of which 10 CPs maks. veya IMs as DP master, 4 PROFINET controller maximum
Slots
required slots2
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Resolution1 ms
Deviation per day (buffered), max.1,7 s; Power off
Deviation per day (unbuffered), max.8,6 s; For power On
Operating hours counter
Number16
Number/Number range0 to 15
Range of valuesSFCs 2, 3 ve 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Granularity1 h
retentiveVar
Clock synchronization
DestekleniyorVar
to MPI, masterVar
on MPI, deviceVar
to DP, masterVar
on DP, deviceVar
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPYok; Via CP
to IF 964 DPVar
Time difference in system when synchronizing via
MPI, max.200 ms
Arayüzler
Interfaces/bus type1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP, 2 x PROFIBUS DP (optionally pluggable)
Number of RS 485 interfaces2; Combined MPI / PROFIBUS DP ve PROFIBUS DP
Number of other interfaces2; PROFIBUS DP with IF 964-DP (plug-in option; MLFB: 6ES7964-2AA04-0AB0)
1. Arayüz
Arayüz tipiMPI/PROFIBUS DP
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIVar
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
MPI
Number of connections44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationVar
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
PROFIBUS DP master
Number of connections, max.32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
max. number of DP devices32
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; S7 routing
— Global data communicationYok
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceVar
— Eşzamanlı (isochronous) modVar
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— Direct data exchange (slave-to-slave communication)Var
— DPV1Var
Address area
— Inputs, max.2 kB
— Outputs, max.2 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connections32
İletim hızı, maks.12 Mbit/s
automatic baud rate searchYok
Address area, max.32; Virtual slots
User data per address area, max.32 bayt
— of which consistent, max.32 bayt
Servisler
— PG/OP haberleşmesiVar; with interface active
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
2. Interface
Arayüz tipiPROFIBUS DP
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
PROFIBUS DP master
Number of connections, max.32
İletim hızı, maks.12 Mbit/s
max. number of DP devices125
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; S7 routing
— Global data communicationYok
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceVar
— Eşzamanlı (isochronous) modVar
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— Direct data exchange (slave-to-slave communication)Var
— DPV1Var
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connections32
İletim hızı, maks.12 Mbit/s
Address area, max.32
User data per address area, max.32 bayt
— of which consistent, max.32 bayt
Servisler
— RoutingVar; with interface active
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
3. Interface
Arayüz tipipluggable interface module (IF), technical data as for 2nd interface
Plug-in interface modulesIF 964-DP (MLFB: 6ES7964-2AA04-0AB0)
İzoleliVar
İletim hızının otomatik algılanmasıYok
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIYok
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
PROFIBUS DP master
Number of connections, max.32
İletim hızı, maks.12 Mbit/s
max. number of DP devices125
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; S7 routing
— Global data communicationYok
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceVar
— Eşzamanlı (isochronous) modVar
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— Direct data exchange (slave-to-slave communication)Var
— DPV0Var
— DPV1Var
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connections32
İletim hızı, maks.12 Mbit/s
automatic baud rate searchYok
Address area, max.32
User data per address area, max.32 bayt
— of which consistent, max.32 bayt
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
4. Interface
Arayüz tipipluggable interface module (IF), technical data as for 2nd interface
Plug-in interface modulesIF 964-DP (MLFB: 6ES7964-2AA04-0AB0)
SIMATIC haberleşmesi
S7 yönlendirmeVar
Açık IE haberleşmesi
ISO-on-TCP (RFC1006)Via CP 443-1 ve loadable FB
— Veri uzunluğu, maks.1.452 bytes via CP 443-1 Adv.
Web sunucusu
DestekleniyorYok
Isochronous mode
EquidistanceVar
Number of DP masters with isochronous mode4
payload per isochronous device, max.244 bayt
shortest clock pulse1 ms; 0,5 ms without use of SFC 126, 127
max. cycle32 ms
Communication functions
PG/OP communicationVar
Number of connectable OPs with message processing119; When using Alarm_S/SQ ve Alarm_D/DQ
Number of connectable OPs without message processing119
Data record routingVar
Global data communication
DestekleniyorVar
Number of GD loops, max.16
Number of GD packets, transmitter, max.16
Number of GD packets, receiver, max.32
Size of GD packets, max.54 bayt
Size of GD packet (of which consistent), max.1 variable
S7 basic communication
DestekleniyorVar
İş başına kullanıcı verisi, maks.76 bayt
User data per job (of which consistent), max.1 variable
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar
İş başına kullanıcı verisi, maks.64 kB
User data per job (of which consistent), max.462 bayt; 1 variable
S5 compatible communication
DestekleniyorVar; Via FC AG_SEND ve AG_RECV, maks. via 10 CP 443-1 veya 443-5
İş başına kullanıcı verisi, maks.8 kB
User data per job (of which consistent), max.240 bayt
Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.64/64
Standard communication (FMS)
DestekleniyorVar; Via CP ve loadable FB
Bağlantı sayısı
Toplam120
usable for PG communication119
— reserved for PG communication1
— adjustable for PG communication, max.0
usable for OP communication119
— reserved for OP communication1
— adjustable for OP communication, max.0
usable for S7 basic communication118
— reserved for S7 basic communication0
— adjustable for S7 basic communication, max.0
usable for S7 communication118
— reserved for S7 communication0
— adjustable for S7 communication, max.0
usable for routing59
— reserved for routing0
— adjustable for routing, max.0
S7 message functions
Number of login stations for message functions, max.119; Maks. 119 with Alarm_S/SQ ve Alarm_D/DQ (OPs); maks. 16 with Alarm, Alarm_8, Alarm_8P, Notify ve Notify_8 (e.g. WinCC)
Symbol-related messagesVar
SCAN procedureVar
Program alarmsVar
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.1.000; Simultaneously active alarm_S/SQ blocks veya alarm_D/DQ blocks
Alarm 8-blocksVar
Number of instances for alarm 8 and S7 communication blocks, max.10.000
preset, max.1.200
Process control messagesVar
Number of archives that can log on simultaneously (SFB 37 AR_SEND)64
Number of messages
overall, max.1.024
in 100 ms grid, max.128
in 500 ms grid, max.512
in 1000 ms grid, max.1.024
Number of additional values
with 100 ms grid, max.1
with 500, 1000 ms grid, max.10
Test commissioning functions
Status blockVar; Up to 16 simultaneously
Single stepVar
Number of breakpoints16
Durum/kontrol
Durum/kontrol değişkeniVar; Up to 16 variable tables
DeğişkenlerInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Number of variables, max.70; Status/control
Zorlama (force)
Zorlama (force)Var
Forcing, variablesInputs, outputs, bit memories, peripheral inputs, peripheral outputs
Number of variables, max.512
Tanılama arabelleği
MevcutVar
Number of entries, max.3.200
— can be setVar
— preset120
Service data
Can be read outVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
CSA approvalVar
UL onayıVar
cULusVar
FM onayıVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
Use in hazardous areas
ATEX markingATEX II 3G Ex nA IIC T4 Gc
Çalışma ortam sıcaklığı
min.0 °C
maks.60 °C
Configuration software
STEP 7Var
Programming
Command setsee instruction list
Nesting levels7
Access to consistent data in process imageVar
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— LADVar
— FBDVar
— STLVar
— SCLVar
— CFCVar
— GRAPHVar
— HiGraph®Var
Number of simultaneously active SFCs
— DPSYC_FR2; SFC 11; per interface
— D_ACT_DP8; SFC 12; per interface
— RD_REC8; SFC 59; per interface
— WR_REC8; SFC 58; per interface
— WR_PARM8; SFC 55; per interface
— PARM_MOD1; SFC 57; per interface
— WR_DPARM2; SFC 56; per interface
— DPNRM_DG8; SFC 13; per interface
— RDSYSST8; SFC 51
— DP_TOPOL1; SFC 103; per interface
Number of simultaneously active SFBs
— RDREC8; SFB 52; per interface, but not more than 32 across all external interfaces
— WRREC8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy
Ölçüler
Genişlik50 mm
Yükseklik290 mm
Derinlik219 mm
Ağırlık
Ağırlık, yaklaşık900 g
Aksesuarlar 2
Siemens 6ES7417-4XT07-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
Baldor
VFSWDM3546T-5E
MFR #VFSWDM3546T-5E
SKU #YLSRYYEFOOW6J5E
Detayları Gör
SMC
MGPL25TN-200BZ-XC9
MFR #MGPL25TN-200BZ-XC9
SKU #YLSPBI637NOCN0Y
Detayları Gör
SMC
CDJ2L16-125Z-B
MFR #CDJ2L16-125Z-B
SKU #YLS5V0RW2VJJR1A
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
MTS32-150M
MFR #MTS32-150M
SKU #YLSSJCSBTRLX2P7
Detayları Gör
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MY1M20-200AH
MFR #MY1M20-200AH
SKU #YLSIZ8K8N4KBPBQ
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
MDBB63-100Z
MFR #MDBB63-100Z
SKU #YLSNBPQBGLI90UX
İlgili Aramalar
Siemens 6ES7417-4XT07-0AB0 fiyatSiemens 6ES7417-4XT07-0AB0 teklif alSiemens 6ES7417-4XT07-0AB0 satın al6ES7417-4XT07-0AB0 fiyat6ES7417-4XT07-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7417-4XT07-0AB0 muadilSiemens 6ES7417-4XT07-0AB0 teknik özellikler
