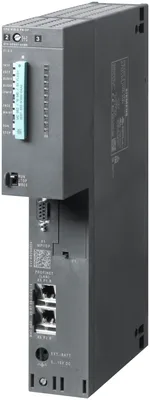

Siemens 6ES7416-3ES07-0AB0
WHEN USING THE DP MODULE MAKE SURE TO USE THE MODULE 6ES7964-2AA04-0AB0 Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data), interfaces 1st interface MPI/DP 12 Mbit/s, (X1), 2nd interface Ethernet/PROFINET (X5) 3rd interface IF 964-DP plug-in (IF1)
Ürün tipi tanımıCPU 416-3 PN/DP
HW functional status01
Firmware sürümüV7.0
Programlama paketiSTEP 7 V5.5 veya üstü with HSP 262
CiR synchronization time, basic load100 ms
Nominal değer (DC)Power supply via system power supply
Ürün Hakkında
WHEN USING THE DP MODULE MAKE SURE TO USE THE MODULE 6ES7964-2AA04-0AB0 Central processing unit with: Work memory 16 MB, (8 MB code, 8 MB data), interfaces 1st interface MPI/DP 12 Mbit/s, (X1), 2nd interface Ethernet/PROFINET (X5) 3rd interface IF 964-DP plug-in (IF1)
Siemens 6ES7416-3ES07-0AB0
- Orijinal ve sertifikalı Siemens ürünü
- Dünya genelinde tedarik ağıyla hızlı temin
- Teknik ekibimizden ürün seçimi ve uyumluluk desteği
- Muadil ve alternatif ürün önerisi
- Talebinize özel fiyat teklifi ve teslim süresi
Teknik Özellikler
Genel bilgiler
Ürün tipi tanımıCPU 416-3 PN/DP
HW functional status01
Firmware sürümüV7.0
Product function
Isochronous modeVar; Via PROFIBUS DP veya PROFINET interface
Mühendislik aracı
Programlama paketiSTEP 7 V5.5 veya üstü with HSP 262
CiR - Configuration in RUN
CiR synchronization time, basic load100 ms
CiR synchronization time, time per I/O byte10 µs
Besleme gerilimi
Nominal değer (DC)Power supply via system power supply
Giriş akımı
from backplane bus 5 V DC, typ.1,3 A
from backplane bus 5 V DC, max.1,6 A
from backplane bus 24 V DC, max.300 mA; 150 mA per DP interface
from interface 5 V DC, max.90 mA; At her biri DP interface
Güç kaybı
Güç kaybı, tipik6,5 W
Storage
Type of memoryRAM
Çalışma belleği
Dahili16 MB
integrated (for program)8 MB
integrated (for data)8 MB
expandableYok
Yükleme belleği
expandable FEPROMVar; with Memory Card (FLASH)
expandable FEPROM, max.64 MB
integrated RAM, max.1 MB
expandable RAMVar; with Memory Card (RAM)
expandable RAM, max.64 MB
Yedekleme
MevcutVar
with batteryVar; all data
PilsizYok
Backup battery
Backup current, typ.180 µA; up to 40 °C
Backup current, max.850 µA
Backup time, max.Dealt with in the module data manual with the secondary conditions ve the factors of influence
Feeding of external backup voltage to CPU5 V DC to 15 V DC
CPU işlem süreleri
Bit işlemleri için, tipik12,5 ns
Word işlemleri için, tipik12,5 ns
for fixed point arithmetic, typ.12,5 ns
Kayan nokta aritmetiği için, tipik25 ns
DB
Sayı, maks.10.000; Number range: 1 to 16000
Boyut, maks.64 kB
FB
Sayı, maks.5.000; Number range: 0 to 7999
Boyut, maks.64 kB
FC
Sayı, maks.5.000; Number range: 0 to 7999
Boyut, maks.64 kB
Organizasyon blokları (OB)
Sayı, maks.see instruction list
Boyut, maks.64 kB
Number of free cycle OBs1; OB 1
Number of time alarm OBs8; OB 10-17
Number of delay alarm OBs4; OB 20-23
Number of cyclic interrupt OBs9; OB 30-38 (shortest cycle that can be set = 500 µs)
Number of process alarm OBs8; OB 40-47
Number of DPV1 alarm OBs3; OB 55-57
Number of isochronous mode OBs4; OB 61-64
Number of multicomputing OBs1; OB 60
Number of background OBs1; OB 90
Number of startup OBs3; OB 100-102
Number of asynchronous error OBs9; OB 80-88
Number of synchronous error OBs2; OB 121, 122
Nesting depth
per priority class24
additional within an error OB2
S7 counter
Number2.048
Retentivity
— adjustableVar
— presetZ 0 to Z 7
Counting range
— lower limit0
— upper limit999
IEC counter
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
S7 timer
Number2.048
Retentivity
— adjustableVar
— presetYok times retentive
Time range
— lower limit10 ms
— upper limit9.990 s
IEC timer
MevcutVar
TypeSFB
NumberUnlimited (limited only by RAM capacity)
Veri alanları ve kalıcılığı
Kalıcı veri alanı (zamanlayıcı, sayıcı, merker dahil), maks.Total working ve load memory (with backup battery)
Merker (bayrak)
Boyut, maks.16 kB; Size of bit memory address area
Retentivity availableVar
Retentivity presetMB 0 to MB 15
Number of clock memories8; in 1 memory bayt
Yerel veri
adjustable, max.32 kB
preset16 kB
I/O address area
Inputs16 kB
Outputs16 kB
Proses görüntüsü
Girişler, ayarlanabilir16 kB
Çıkışlar, ayarlanabilir16 kB
Inputs, default512 bayt
Outputs, default512 bayt
consistent data, max.244 bayt
Access to consistent data in process imageVar
Subprocess images
Number of subprocess images, max.15
Digital channels
Inputs131.072
— of which central131.072
Outputs131.072
— of which central131.072
Analog channels
Inputs8.192
— of which central8.192
Outputs8.192
— of which central8.192
Donanım yapılandırması
Number of expansion units, max.21
connectable OPs95
MulticomputingVar; 4 CPUs maks. (with UR1 veya UR2)
Interface modules
Number of connectable IMs (total), max.6
Number of connectable IM 460s, max.6
Number of connectable IM 463s, max.4; IM 463-2
Number of DP masters
Dahili1
via CP10; CP 443-5 Extended
via IM 4674
Mixed mode IM + CP permittedYok; IM 467 cannot be used jointly with CP 443-5 Ext. veya CP 443-1 in PROFINET IO mode
via interface module1; IF 964-DP
Number of pluggable S5 modules (via adapter capsule in central device), max.6
Number of IO Controllers
Dahili1
Via CP4; Maks. 4 in the central controller; no mixed operation of different CP 443-1 types in PROFINET IO mode
Number of operable FMs and CPs (recommended)
FMLimited by number of slots veya number of connections
CP, PtPCP 440: Limited by number of slots; CP 441: Limited by number of slots ve number of connections
PROFIBUS and Ethernet CPs14; In toplam maks. 10 CPs as DP master ve PROFINET controller, of which up to 10 IMs veya CPs as DP master ve up to 4 CPs as PROFINET controller
Slots
required slots2
Saat
Donanım saati (gerçek zamanlı)Var
retentive and synchronizableVar
Resolution1 ms
Deviation per day (buffered), max.1,7 s; Power off
Deviation per day (unbuffered), max.8,6 s; For power On
Operating hours counter
Number16
Number/Number range0 to 15
Range of valuesSFCs 2, 3 ve 4: 0 to 32767 hours SFC 101: 0 to 2^31 - 1 hours
Granularity1 h
retentiveVar
Clock synchronization
DestekleniyorVar
to MPI, masterVar
on MPI, deviceVar
to DP, masterVar
on DP, deviceVar
in AS, masterVar
in AS, deviceVar
on Ethernet via NTPVar; As client
to IF 964 DPVar
Time difference in system when synchronizing via
Ethernet, max.10 ms
MPI, max.200 ms
Arayüzler
Interfaces/bus type1 x MPI/PROFIBUS DP, 1 x PROFINET (2 ports), 1 x PROFIBUS DP (optionally pluggable)
Number of RS 485 interfaces1; Combined MPI / PROFIBUS DP
Number of other interfaces1; PROFIBUS DP with IF 964-DP (plug-in option; MLFB: 6ES7964-2AA04-0AB0)
1. Arayüz
Arayüz tipiMPI/PROFIBUS DP
İzoleliVar
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIVar
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
MPI
Number of connections44; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— RoutingVar
— Global data communicationVar
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
PROFIBUS DP master
Number of connections, max.32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
İletim hızı, maks.12 Mbit/s
max. number of DP devices32
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; S7 routing
— Global data communicationYok
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceVar
— Eşzamanlı (isochronous) modVar
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— Direct data exchange (slave-to-slave communication)Var
— DPV1Var
Address area
— Inputs, max.2 kB
— Outputs, max.2 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connections32
İletim hızı, maks.12 Mbit/s
automatic baud rate searchYok
Address area, max.32; Virtual slots
User data per address area, max.32 bayt
— of which consistent, max.32 bayt
Servisler
— PG/OP haberleşmesiVar; with interface active
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
2. Interface
Arayüz tipiPROFINET
İzoleliVar
İletim hızının otomatik algılanmasıVar; Autosensing
Otomatik anlaşma (autonegotiation)Var
Otomatik çaprazlama (autocrossing)Var
Change of IP address at runtime, supportedVar; Assignment by higher-level IO-Controller veya by the user program with SFB104 "IP_CONF"
Arayüz tipleri
RJ 45 (Ethernet)Var
Port sayısı2
Dahili switchVar
Protokoller
PROFINET IO kontrolcüsüVar
PROFINET IO DeviceVar
PROFINET CBAVar
PROFIBUS DP masterYok
PROFIBUS DP deviceYok
Açık IE haberleşmesiVar
Web sunucusuVar
Point-to-point connectionYok
Ortam yedekliliğiVar
PROFINET IO kontrolcüsü
İletim hızı, maks.100 Mbit/s
Servisler
— PG/OP haberleşmesiVar
— S7 communicationVar
— Eşzamanlı (isochronous) modVar; Only with IRT ve the High Performance option
— Paylaşımlı cihazVar
— Önceliklendirilmiş başlatmaVar
— Önceliklendirilmiş başlatmalı IO cihazı sayısı, maks.32
— Bağlanabilir IO cihazı sayısı, maks.256
— Of which IO devices with IRT, max.64
— Bunlardan hat üzerinde, maks.64
— Number of IO Devices with IRT and the option "high flexibility"256
— Bunlardan hat üzerinde, maks.61
— RT için bağlanabilir IO cihazı sayısı, maks.256
— Bunlardan hat üzerinde, maks.256
— Activation/deactivation of IO DevicesVar
— Eşzamanlı etkinleştirilebilen/devre dışı bırakılabilen IO cihazı sayısı, maks.8
— IO Devices changing during operation (partner ports), supportedVar
— Number of IO Devices per tool, max.8; 8 parallel calls of the SFC 12 "D_ACT_DP" possible per line. Maks. 32 IO Devices changing during operation (partner ports) are supported
— Device replacement without swap mediumVar
— Send cycles250 μs, 500 μs, 1 ms, 2 ms, 4 ms additionally with IRT with high performance: 250 µs to 4 ms in 125 µs frame
— Güncelleme süresi250 µs to 512 ms; minimum value depends on preset communication share for PROFINET IO, on the number of IO Devices ve on the amount of configured user data, see PROFINET system description
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
— User data consistency, max.1.024 bayt
Servisler
— PG/OP haberleşmesiVar
— S7 communicationVar
— Eşzamanlı (isochronous) modYok
— IRTVar
— Önceliklendirilmiş başlatmaVar
— Paylaşımlı cihazVar
— Paylaşımlı cihazlı IO kontrolcüsü sayısı, maks.2
Transfer memory
— Inputs, max.1.440 bayt; Per IO Controller with shared device
— Outputs, max.1.440 bayt; Per IO Controller with shared device
Submodules
— Number, max.64
— User data per submodule, max.1.024 bayt
PROFINET CBA
acyclic transmissionVar
cyclic transmissionVar
Açık IE haberleşmesi
Number of connections, max.94
Local port numbers used at the system end0, 20, 21, 25, 80, 102, 135, 161, 34962, 34963, 34964, 65532, 65533, 65534, 65535
Keep-alive function, supportedVar
3. Interface
Arayüz tipiPluggable interface module (IF)
Plug-in interface modulesIF 964-DP (MLFB: 6ES7964-2AA04-0AB0)
İzoleliVar
İletim hızının otomatik algılanmasıYok
Arayüz tipleri
RS 485Var
Output current of the interface, max.150 mA
Protokoller
MPIYok
PROFIBUS DP masterVar
PROFIBUS DP deviceVar
PROFIBUS DP master
Number of connections, max.32
İletim hızı, maks.12 Mbit/s
max. number of DP devices125
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; S7 routing
— Global data communicationYok
— S7 basic communicationVar
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— EquidistanceVar
— Eşzamanlı (isochronous) modVar
— SYNC/FREEZEVar
— activation/deactivation of DP devicesVar
— Direct data exchange (slave-to-slave communication)Var
— DPV0Var
— DPV1Var
Address area
— Inputs, max.8 kB
— Outputs, max.8 kB
User data per DP device
— user data per DP device, max.244 bayt
— Inputs, max.244 bayt
— Outputs, max.244 bayt
— Slots, max.244
— per slot, max.128 bayt
PROFIBUS DP device
Number of connections32
İletim hızı, maks.12 Mbit/s
automatic baud rate searchYok
Address area, max.32; Virtual slots
User data per address area, max.32 bayt
— of which consistent, max.32 bayt
Servisler
— PG/OP haberleşmesiVar
— RoutingVar; with interface active
— Global data communicationYok
— S7 basic communicationYok
— S7 communicationVar
— S7 communication, as clientVar
— S7 communication, as serverVar
— Direct data exchange (slave-to-slave communication)Yok
— DPV1Yok
Transfer memory
— Inputs244 bayt
— Outputs244 bayt
Ortam yedekliliği
— Switchover time on line break, typ.200 ms
— Number of stations in the ring, max.50
SIMATIC haberleşmesi
S7 yönlendirmeVar
Açık IE haberleşmesi
TCP/IPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.94
— Veri uzunluğu, maks.32 kB
— several passive connections per port, supportedVar
ISO-on-TCP (RFC1006)Var; Via dahili PROFINET interface veya CP 443-1 ve loadable FBs
— Number of connections, max.94
— Veri uzunluğu, maks.32 kB; 1.452 bytes via CP 443-1 Adv.
UDPVar; via dahili PROFINET interface ve loadable FBs
— Number of connections, max.94
— Veri uzunluğu, maks.1.472 bayt
Web sunucusu
DestekleniyorVar
Kullanıcı tanımlı web sayfalarıVar
Number of HTTP clients5
Isochronous mode
EquidistanceVar
Number of DP masters with isochronous mode2
payload per isochronous device, max.244 bayt
shortest clock pulse1 ms; 0,5 ms without use of SFC 126, 127
max. cycle32 ms
Communication functions
PG/OP communicationVar
Number of connectable OPs with message processing95; When using Alarm_S/SQ ve Alarm_D/DQ
Number of connectable OPs without message processing95
Data record routingVar
Global data communication
DestekleniyorVar
Number of GD loops, max.16
Number of GD packets, transmitter, max.16
Number of GD packets, receiver, max.32
Size of GD packets, max.54 bayt
Size of GD packet (of which consistent), max.1 variable
S7 basic communication
DestekleniyorVar
İş başına kullanıcı verisi, maks.76 bayt
User data per job (of which consistent), max.1 variable
S7 haberleşmesi
DestekleniyorVar
Sunucu olarakVar
İstemci olarakVar
İş başına kullanıcı verisi, maks.64 kB
User data per job (of which consistent), max.462 bayt; 1 variable
S5 compatible communication
DestekleniyorVar; Via FC AG_SEND ve AG_RECV, maks. via 10 CP 443-1 veya 443-5
İş başına kullanıcı verisi, maks.8 kB
User data per job (of which consistent), max.240 bayt
Number of simultaneous AG-SEND/AG-RECV orders per CPU, max.64/64
Standard communication (FMS)
DestekleniyorVar; Via CP ve loadable FB
PROFINET CBA (at set setpoint communication load)
Setpoint for the CPU communication load20 %
Number of remote interconnection partners32
number of master/device functions150
total of all master/device connections6.000
data length of all incoming master/device connections, max.65.000 bayt
data length of all outgoing master/device connections, max.65.000 bayt
Number of device-internal and PROFIBUS interconnections1.000
Data length of device-internal und PROFIBUS interconnections, max.16.000 bayt
Data length per connection, max.2.000 bayt
Remote interconnections with cyclic transmission
— Transmission frequency: Transmission interval, min.1 ms; Depending on preset communication load, number of interconnections ve data length used
— Number of incoming interconnections300
— Number of outgoing interconnections300
— Data length of all incoming interconnections, max.4.800 bayt
— Data length of all outgoing interconnections, max.4.800 bayt
— Data length per connection, max.450 bayt
HMI variables via PROFINET (acyclic)
— Number of stations that can log on for HMI variables (PN OPC/iMap)2x PN OPC/1x iMap
— HMI variable updating500 ms
— Number of HMI variables1.500
— Data length of all HMI variables, max.48.000 bayt
PROFIBUS proxy functionality
— supportedVar; 32 PROFIBUS slaves maks. connectable
— Data length per connection, max.240 bayt; Slave-dependent
Bağlantı sayısı
Toplam96
usable for PG communication95
— reserved for PG communication1
— adjustable for PG communication, max.0
usable for OP communication95
— reserved for OP communication1
— adjustable for OP communication, max.0
usable for S7 basic communication94
— reserved for S7 basic communication0
— adjustable for S7 basic communication, max.0
usable for S7 communication94
— reserved for S7 communication0
— adjustable for S7 communication, max.0
usable for routing47
— reserved for routing0
— adjustable for routing, max.0
S7 message functions
Number of login stations for message functions, max.95; Maks. 95 with Alarm_S/SQ ve Alarm_D/DQ (OPs); maks. 16 with Alarm, Alarm_8, Alarm_8P, Notify ve Notify_8 (e.g. WinCC)
Symbol-related messagesVar
SCAN procedureVar
Program alarmsVar
Process diagnostic messagesVar
simultaneously active Alarm_S blocks, max.1.000; Simultaneously active alarm_S/SQ blocks veya alarm_D/DQ blocks
Alarm 8-blocksVar
Number of instances for alarm 8 and S7 communication blocks, max.4.000
preset, max.600
Process control messagesVar
Number of archives that can log on simultaneously (SFB 37 AR_SEND)32
Number of messages
overall, max.1.024
in 100 ms grid, max.128
in 500 ms grid, max.512
in 1000 ms grid, max.1.024
Number of additional values
with 100 ms grid, max.1
with 500, 1000 ms grid, max.10
Test commissioning functions
Status blockVar; Up to 16 simultaneously
Single stepVar
Number of breakpoints16
Durum/kontrol
Durum/kontrol değişkeniVar; Up to 16 variable tables
DeğişkenlerInputs/outputs, memory bits, DBs, distributed I/Os, timers, counters
Number of variables, max.70; Status/control
Zorlama (force)
Zorlama (force)Var
Forcing, variablesInputs/outputs, bit memories, distributed I/Os
Number of variables, max.512
Tanılama arabelleği
MevcutVar
Number of entries, max.3.200
— adjustableVar
— preset120
Service data
Can be read outVar
Standartlar, onaylar, sertifikalar
CE işaretiVar
CSA approvalVar
UL onayıVar
cULusVar
FM onayıVar
RCM (eski adıyla C-TICK)Var
KC onayıVar
EAC (formerly Gost-R)Var
Use in hazardous areas
ATEX markingATEX II 3G Ex nA IIC T4 Gc
Çalışma ortam sıcaklığı
min.0 °C
maks.60 °C
Configuration software
STEP 7Var
Programming
Command setsee instruction list
Nesting levels7
Access to consistent data in process imageVar
System functions (SFC)see instruction list
System function blocks (SFB)see instruction list
Programlama dili
— LADVar
— FBDVar
— STLVar
— SCLVar
— CFCVar
— GRAPHVar
— HiGraph®Var
Number of simultaneously active SFCs
— DPSYC_FR2; SFC 11; per interface
— D_ACT_DP8; SFC 12; per interface
— RD_REC8; SFC 59; per interface
— WR_REC8; SFC 58; per interface
— WR_PARM8; SFC 55; per interface
— PARM_MOD1; SFC 57; per interface
— WR_DPARM2; SFC 56; per interface
— DPNRM_DG8; SFC 13; per interface
— RDSYSST8; SFC 51
— DP_TOPOL1; SFC 103; per interface
Number of simultaneously active SFBs
— RDREC8; SFB 52; per interface, but not more than 32 across all external interfaces
— WRREC8; SFB 53; per interface, but not more than 32 across all external interfaces
Know-how koruması
Kullanıcı programı/şifre korumasıVar
Block encryptionVar; With S7 block Privacy

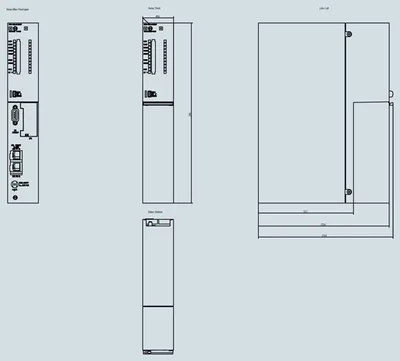

Ölçüler
Genişlik50 mm
Yükseklik290 mm
Derinlik219 mm
Ağırlık
Ağırlık, yaklaşık900 g
Aksesuarlar 2
Siemens 6ES7416-3ES07-0AB0 motorla birlikte kullanılabilen, ayrı olarak tedarik edilen orijinal aksesuarlar aşağıda listelenmiştir. Koda tıklayarak aksesuarın sayfasına ve uyumlu diğer motorlara ulaşabilirsiniz.
| Parça no | Açıklama | Uyumlu motor |
|---|---|---|
| 9LF1110-6DA13-2AB1 | Servis · Service Card | |
| 9TF6276-2XA11-1AL4 | Servis |
İlgili Ürünler
Detayları Gör
Siemens
1EE1124-..A00-...4
MFR #1EE1124-..A00-...4
SKU #YLSKZIN1GEIPRVP
Detayları Gör
Siemens
1EE1142-..A00-...4
MFR #1EE1142-..A00-...4
SKU #YLSUX3MNEZEJGPU
Detayları Gör
Siemens
1EE1144-..A00-...4
MFR #1EE1144-..A00-...4
SKU #YLSD9GON9QOYBAE
Detayları Gör
Siemens
1EE1322-....0-...4
MFR #1EE1322-....0-...4
SKU #YLSSAVZE8P7OOP6
Detayları Gör
Siemens
1EE1322-...00-1..2
MFR #1EE1322-...00-1..2
SKU #YLSY69IQB2JXAXJ
Detayları Gör
Siemens
1EE1322-..A00-...4
MFR #1EE1322-..A00-...4
SKU #YLSH1E6AJR6XWJF
Detayları Gör
Siemens
1EE1324-....0-...4
MFR #1EE1324-....0-...4
SKU #YLS8GBB9BXAF83
Detayları Gör
Siemens
1EE1324-...00-1..2
MFR #1EE1324-...00-1..2
SKU #YLSLOS6I1BDXR58
Detayları Gör
Siemens
1EE1324-..A00-...4
MFR #1EE1324-..A00-...4
SKU #YLSE0T3LUEU0CI
Öne Çıkan Ürünler
Detayları Gör
Danfoss Aeroquip LLC
EH22512
MFR #EH22512
SKU #YLSRZ91UGVO64DG
Detayları Gör
SMC
MXS-AS16L
MFR #MXS-AS16L
SKU #YLSAP0XXFGFSWY6
Detayları Gör
SMC
ZCUKQ25-50D
MFR #ZCUKQ25-50D
SKU #YLSQ684QXTNN958
Detayları Gör
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
Detayları Gör
Baldor
BM3615T W/ 2-1/4" LONG SHAFT
MFR #BM3615T W/ 2-1/4" LONG SHAFT
SKU #YLSUV0OKQIKNTRJ
Detayları Gör
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
Detayları Gör
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
Detayları Gör
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
Detayları Gör
SMC
NCDJ2L10-300-B
MFR #NCDJ2L10-300-B
SKU #YLSRRDWPL50RWQ2
Detayları Gör
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
İlgili Aramalar
Siemens 6ES7416-3ES07-0AB0 fiyatSiemens 6ES7416-3ES07-0AB0 teklif alSiemens 6ES7416-3ES07-0AB0 satın al6ES7416-3ES07-0AB0 fiyat6ES7416-3ES07-0AB0 stok durumuSiemens yedek parçaSiemens 6ES7416-3ES07-0AB0 muadilSiemens 6ES7416-3ES07-0AB0 teknik özellikler
